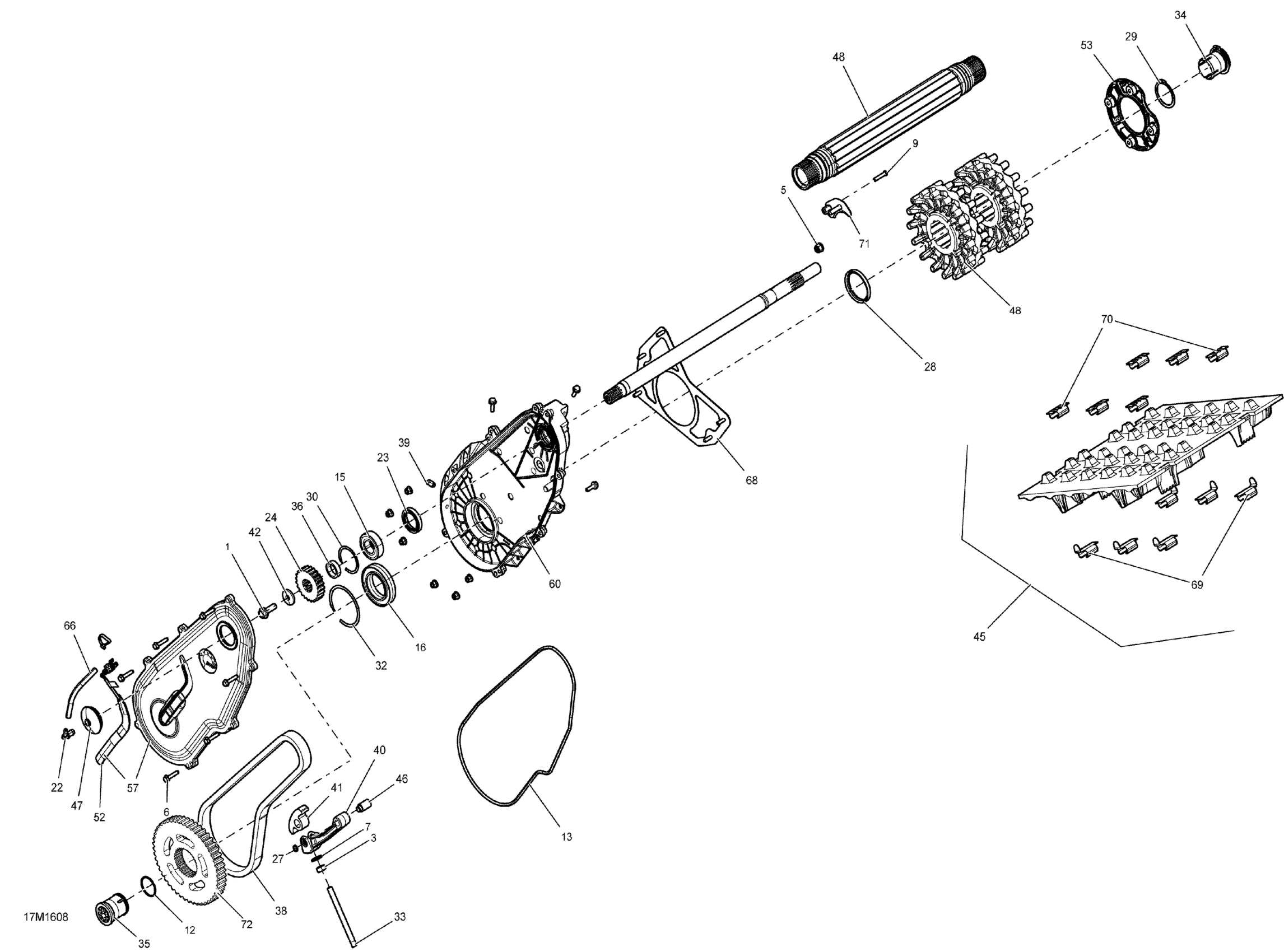

Ski-Doo GRAND TOURING - 2-STROKE, 2016 Drive System Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

3

Hex. Nut M10 X 1.5

232006414

$1.37

5

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Bonded Washer

250200100

$2.11

9

Clinch Stud M6 X 30

250300031

$2.09

12

O-Ring

293300122

$2.11

13

Tight Seal

293300130

$7.51

15

Ball Bearing

293350115

$12.11

16

Ball Bearing

293350059

$30.99

22

Male Connector

414580700

$4.12

23

Oil Seal

293200158

$14.22

24

Sprocket 23 Teeth

504153911

$44.99

27

Circlip

504152282

$3.17

28

Oil Seal

293200159

$16.25

29

Circlip

504152572

$6.95

30

Circlip

504152576

$9.99

32

Circlip

504152582

$9.99

33

Adjustment Screw

504152602

$12.49

34

Magnetic Cap

504152619

$23.49

36

Shim

504152628

$10.99

38

Drive Chain, 104 Links

504152629

$179.99

40

Tensioner chain

504153429

$15.99

41

Slider Chain

504152739

$65.99

42

Spring Washer M10

504152784

$7.65

45

Track 15 X 137 X 1 This part replaces 504153157.

504153849

$809.99

46

Tensioner Axle

504152841

$16.34

47

Cap

504152860

$20.49

52

Rotation Sensor

504152896

$37.99

53

Retaining Ring

504153886

$21.99

57

Casting Cover

504153151

$194.99

68

Plate | Not Shown

518325816

$79.99

6

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

66

Polyurethane Hose 10000Mm Long

219704410

$56.99

69

Track Guide | Track Width 16''

415129528

$3.29

70

Cleat

504152651

$9.69

39

Magnetic Plug 1/8 - 27 NPTF

504152854

$11.49

48

Drive Axle Ass'y

504153269

$433.99

60

Chaincase | Includes 10 to 10a

504153405

$339.99

57

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$339.99

71

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

72

Kit Sprocket This part replaces 504152593.

861805538

$164.99
