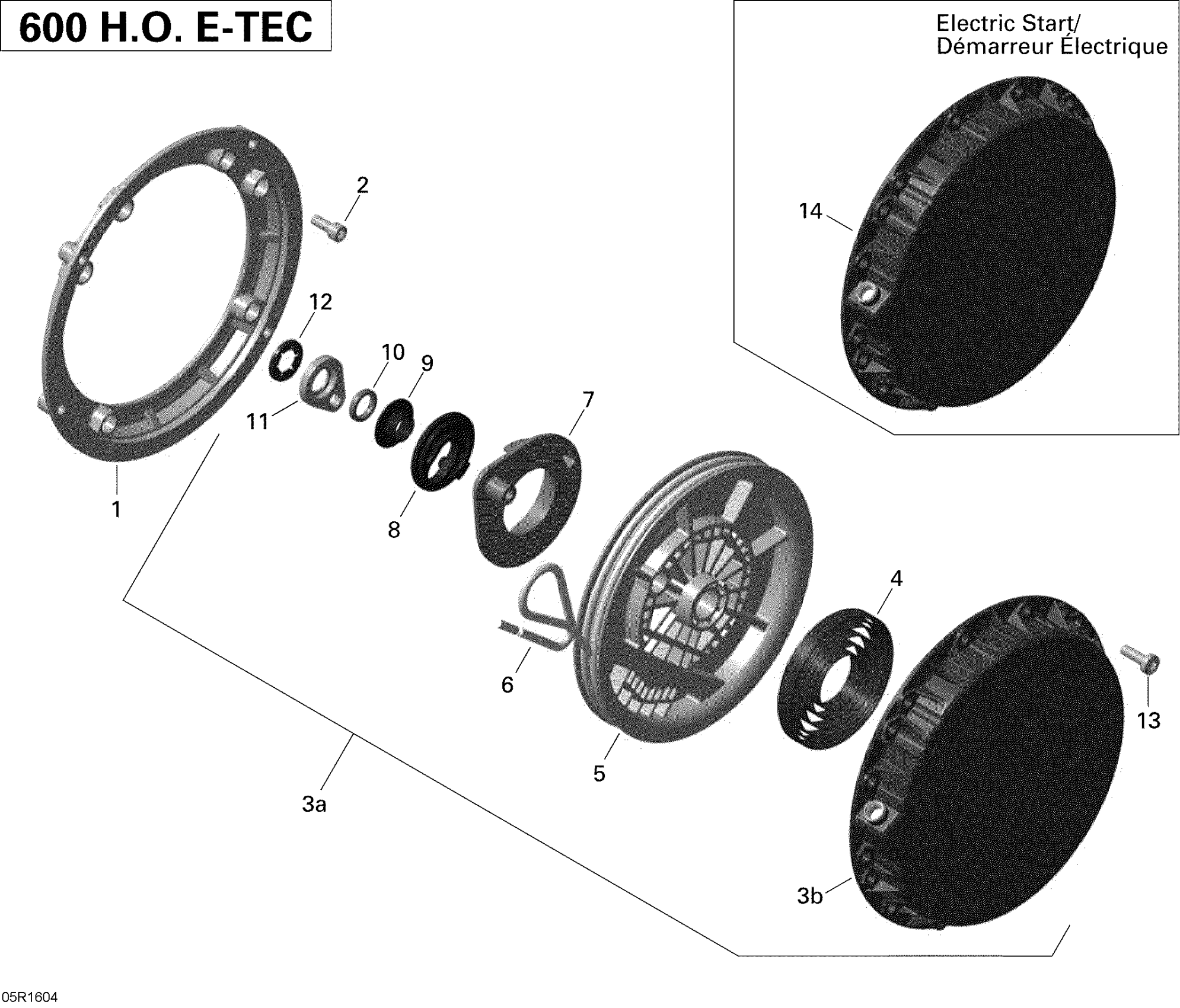

Ski-Doo GRAND TOURING - 2-STROKE, 2016 04- Rewind Starter - 600HO E-TEC Diagram

Flange Connector

420810868

$88.99

Socket Head Screw M6 x 16

420241237

$2.22

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$174.49

Starter Housing

420910256

$94.99

Rewind Spring

420939115

$30.49

Rope Sheave

420852288

$41.49

Was 412500100 Rope-Starter

219704403

$158.99

Pawl

420852633

$33.99

Pawl Lock | Includes no. 8-9

420852640

$6.99

Stage Sleeve

420847926

$16.33

O-Ring

420250407

$1.90

Lock Ring

420852520

$9.27

Locking Element

420845560

$2.11

Torx Flange Screw M6 X 20

420441386

$2.11

Cover | Electrical Start

420910254

$35.99
