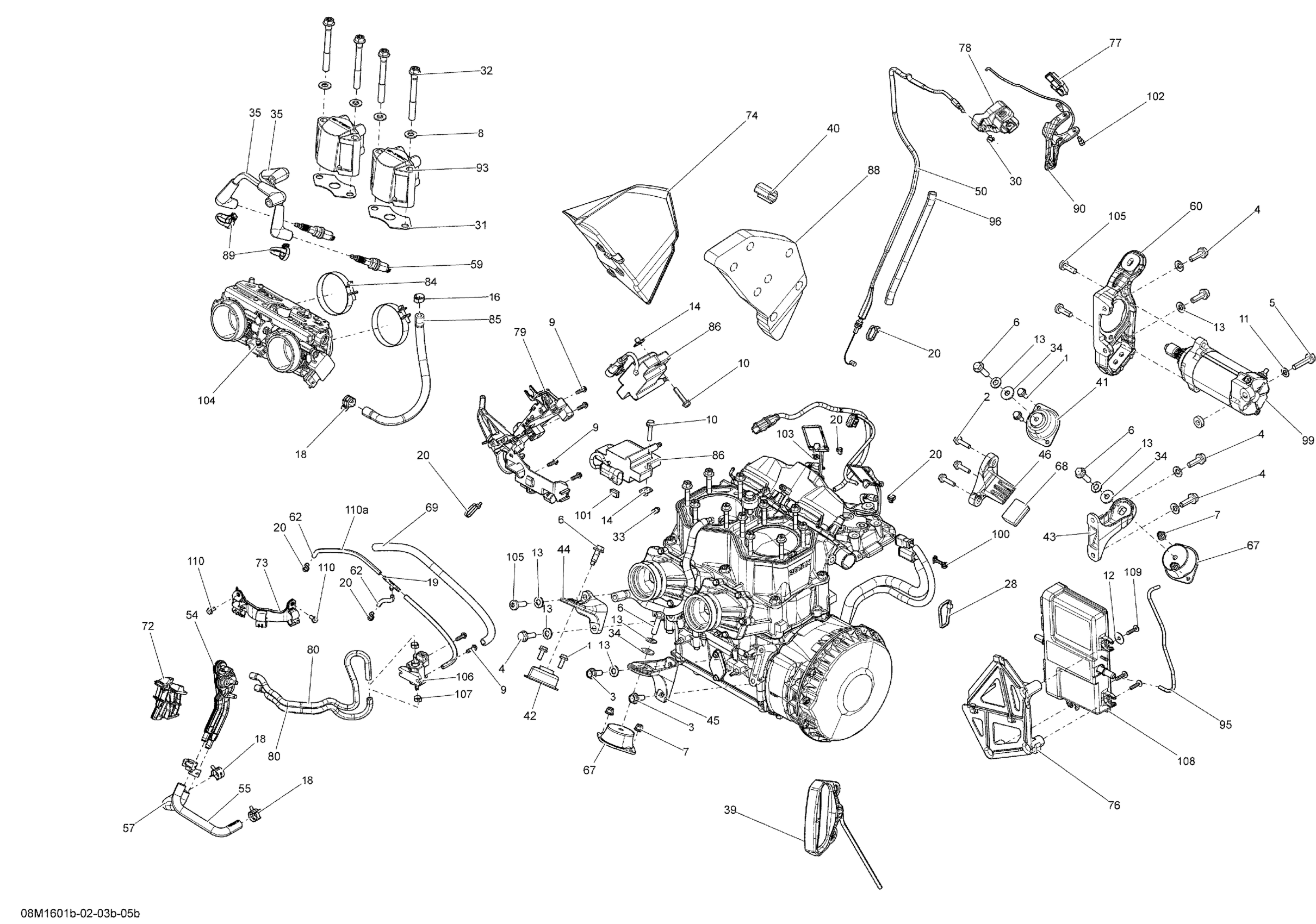

Ski-Doo GRAND TOURING - 2-STROKE, 2016 01- Engine Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2

Hex. Flange Screw M6 X 25

207562544

$1.69

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

5

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

6

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

6

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Flat Washer 10 mm

234001410

$1.26

9

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

10

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

11

Flat Washer With Teflon 8 mm

250200008

$3.80

12

Flat Washer

250200040

$1.90

13

Conical Spring Washer M8

250200146

$1.01

14

Nut Welded, M6

293100003

$9.12

16

Oetiker Clamp

293650046

$2.89

17

Gemi Clamp

293650158

$8.57

18

Norma Spring Clamp

293650214

$15.89

19

T-Fitting

293710068

$8.29

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

28

Tie Wrap 368 mm

293750008

$1.04

30

Circlip

414274500

$0.90

31

Gasket

420430930

$4.99

32

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

33

Hose Nipple

420924724

$14.83

34

Yellow, Washer

503183200

$3.19

35

Ignition Cable, 177mm long

512061126

$28.49

39

Starter Grip

512060136

$14.83

40

Protector

512060313

$10.33

41

Rubber Mount

512060387

$46.99

42

Rubber Mount

512060448

$51.99

43

Front Support, MAG

512060469

$31.99

44

Rear Support, PTO

512060478

$31.99

45

Rear Support, MAG

512060559

$31.99

46

Stopper Support

512060576

$29.49

50

Throttle Cable

512060611

$110.99

54

Manifold

512060692

$45.99

55

RH Formed Hose

512060694

$8.29

57

LH Formed Hose

512060695

$8.29

59

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$30.49

60

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

62

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

62

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

67

Rubber Mount

512060729

$65.99

68

Stopper

512060627

$10.33

69

Was 409901700 Tubing (9 mm)

219704399

$84.99

71

Manifold Support

512060769

$11.60

73

Hose Support

512060827

$2.11

74

Noise Shield

512060847

$16.33

76

Calibrated Module Support

512060858

$14.22

77

Upper Housing

512060859

$8.89

78

Lower Housing

512060860

$17.53

79

Ignition Coils Support

512060888

$11.60

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

85

Bleeder's Collector Outlet Hose

512060944

$28.99

86

Ignition Coil

512060953

$132.49

88

Inner Acoustic Foam

512060958

$19.49

89

Clamp

512060993

$5.39

90

Handle Ass'y

512061250

$124.99

93

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

95

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

96

Was 409901700 Tubing (9 mm)

219704399

$84.99

98

Washer

515176500

$11.12

99

Starter

515178473

$319.49

100

Locker

515177770

$2.21

101

Clip

710000992

$4.29

102

Flange Screw

732601143

$4.12

103

Push Nut

732610072

$2.19

104

Throttle Body

420889201

$1.00

105

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

106

Solenoid Valve

270600005

$116.49

107

Crimp Clamp

293650234

$5.39

108

Calibrated Module

512060780

$749.99

109

Torx Screw Truss Head K50X20 T20

250000760

$2.11

110

Hex Flange Screw M5 X 11

210251150

$2.11

110a

SPRING - Call your local BRP dealership | Not Shown

512060930

Unavailable
