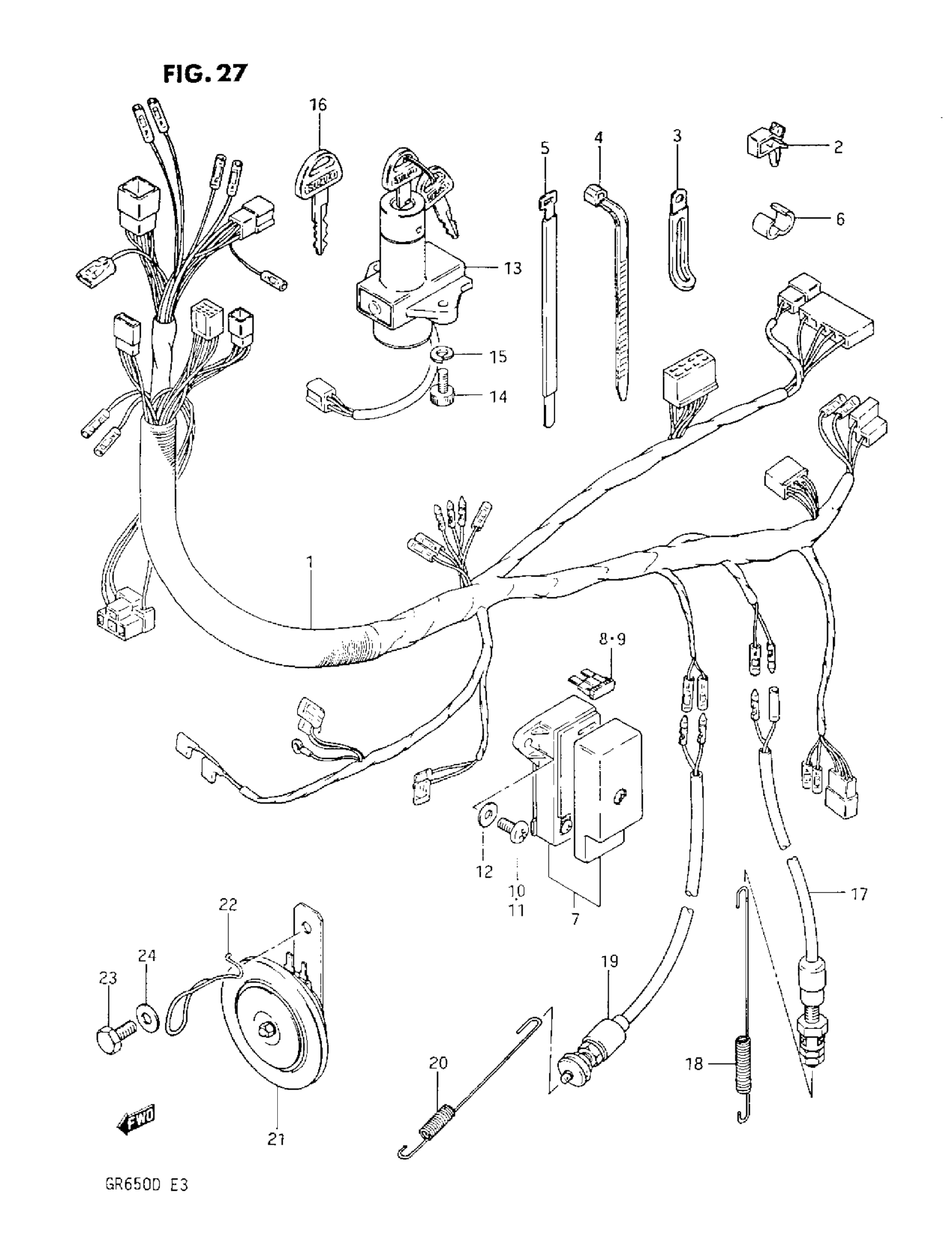

Suzuki GR650 (1983) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-15500

Unavailable

2

CLIP

09403-05305

Unavailable

3

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

3

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:165)

09407-18402

$2.19

4

CLAMP (L:235)

09407-25401

$4.66

5

CLAMP (L:386) This part replaces 09407-35301.

09407-38401

$9.83

6

CLIP

09408-00002

$2.30

7

BOX ASSY,FUSE This part replaces 36740-49400.

36740-45D00

Unavailable

8

FUSE (1OA)

09481-10101

$2.07

9

FUSE (15A)

09481-15101

$2.53

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

SCREW This part replaces 02112-06168.

02112-06167

$1.49

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

SWITCH ASS'Y, IGNITION

37100-49201

Unavailable

14

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

KEY, BLANK | OPT

37146-47010

$18.39

17

SWITCH, REAR BRAKE LAMP This part replaces 37740-04572.

37740-48071

$19.18

18

SPRING

09443-06027

$3.50

19

NO DESCRIPTION AVAILABLE This part replaces 37840-15500.

37840-15501

Unavailable

20

SPRING This part replaces 09443-06048.

09443-06048-XC0

Unavailable

21

HORN ASSY This part replaces 38500-15500.

38502-49001

Unavailable

22

PROTECTOR, HORN

38595-15500

Unavailable

23

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13
