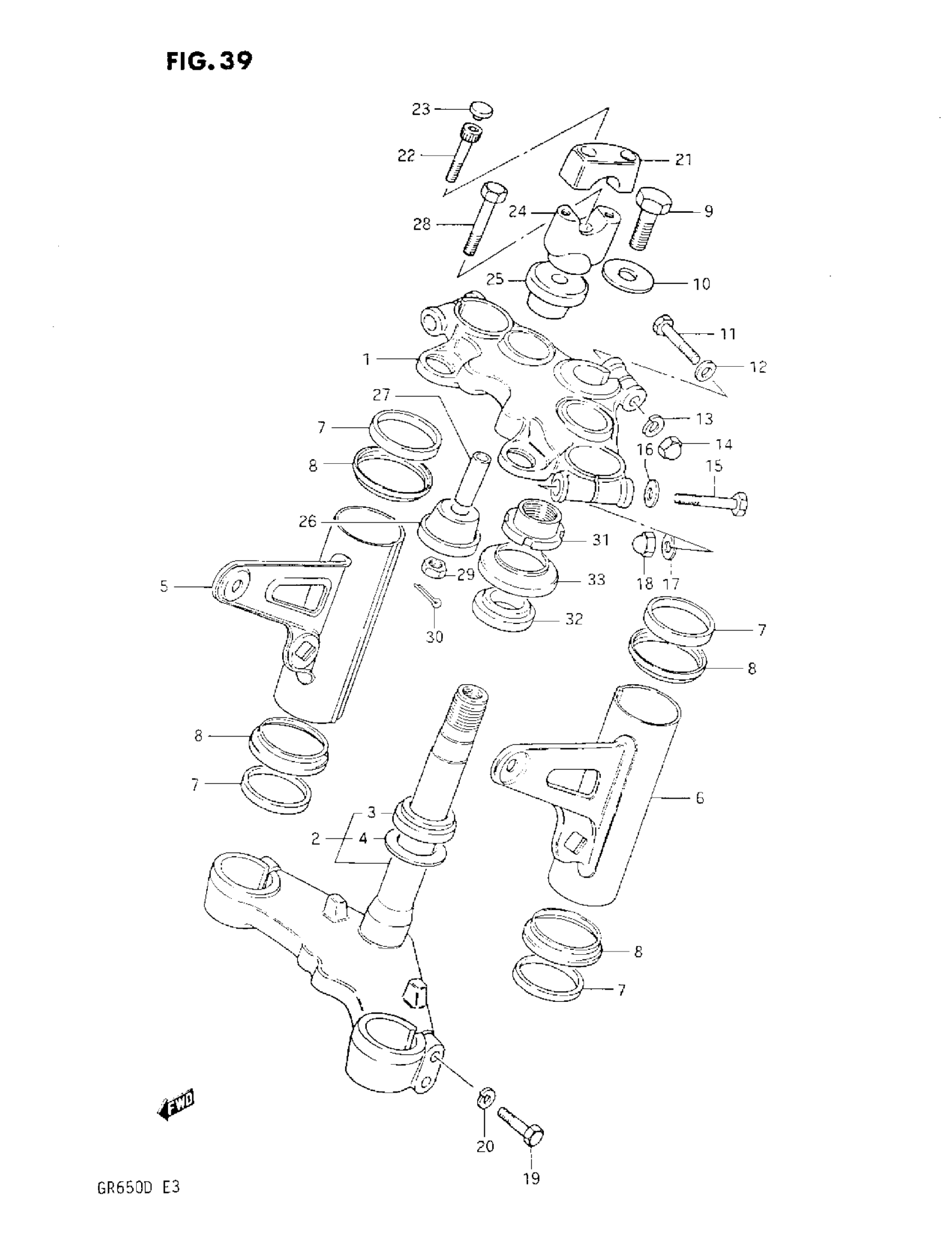

Suzuki GR650 (1983) STEERING STEM (GR650D) Diagram

#

Description
Price

1

STEM HEAD, STEERING | BLACK

51311-15500-15T

Unavailable

2

STEM, STEERING This part replaces 51410-15500.

51410-15520

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE This part replaces 51530-15500.

51500-15840

Unavailable

6

BRACKET, HEADLAMP LH

51540-15500

Unavailable

7

CUSHION, COVER

51555-33300

Unavailable

8

COVER

51556-33300

Unavailable

9

BOLT This part replaces 51352-09300.

51352-31305

Unavailable

10

WASHER This part replaces 51356-09300.

51356-43530

$6.55

11

BOLT This part replaces 01107-08508.

01500-08507

$3.05

12

WASHER This part replaces 08322-21088.

08322-01087

$2.13

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

NUT This part replaces 08313-11085.

08313-1008B

$2.80

15

BOLT This part replaces 01107-10555.

01500-1055A

$3.55

16

WASHER, KNUCKLE END This part replaces 08322-21105.

08322-0110A

$1.84

17

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.84

18

NUT

09145-10002

Unavailable

19

BOLT This part replaces 01107-08405.

01500-0840A

$2.60

20

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

21

CLAMP, HANDLEBAR UPPER | BLACK

56211-15500-291

Unavailable

22

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

23

CAP

09250-06004

$1.49

24

CLAMP, HANDLEBAR LOWER | BLACK

56221-15500-15T

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 56240-15500.

56240-38A10

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 56240-15500.

56240-38A10

Unavailable

27

SPACER

09180-10065

$5.28

28

BOLT

09101-10025

Unavailable

29

NUT This part replaces 08319-21108.

09159-10027

$3.10

30

PIN This part replaces 04111-20308.

04111-2030A

$1.50

31

NUT, STEERING STEM

51631-34200

Unavailable

32

BEARING, UPPER

09265-25008

Unavailable

33

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15
