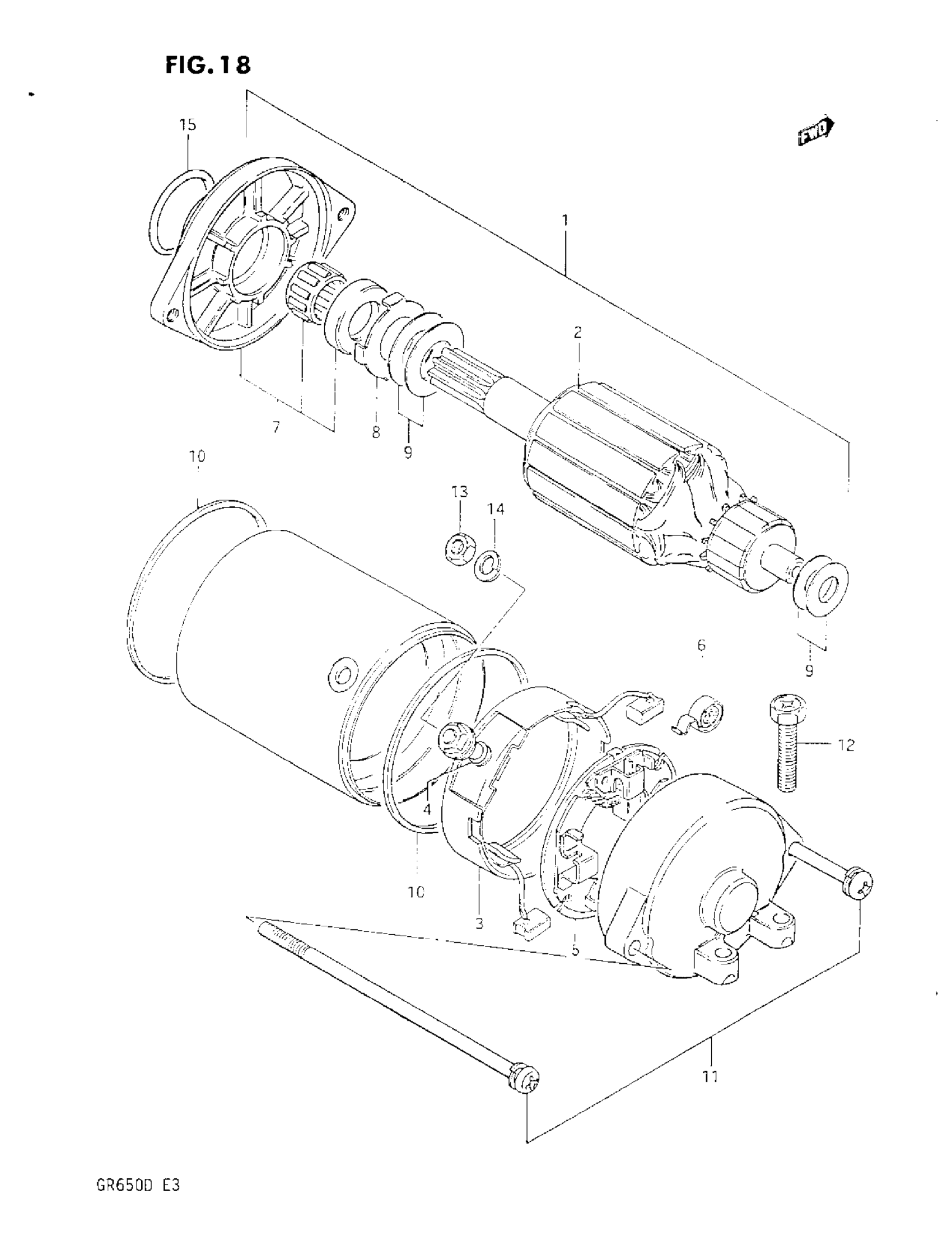

Suzuki GR650 (1983) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASS'Y, STARTING

31100-15510

Unavailable

2

ARMSTURE

31311-15510

Unavailable

3

TERMINAL SET, BRUSH (+) This part replaces 31130-49040.

31130-06B00

Unavailable

4

O-RING

31143-49040

$3.71

5

HOLDER SET, BRUSH (-) This part replaces 31132-49040.

31132-06B00

Unavailable

6

SPRING, BRUSH

31135-49040

Unavailable

7

BRACKET SET

31150-15510

Unavailable

8

SHIM SET This part replaces 31360-49240.

31170-31300

Unavailable

9

SHIM SET This part replaces 31360-49040.

31170-31300

Unavailable

10

O-RING

31264-49040

Unavailable

11

BOLT This part replaces 31280-15510.

31280-06B00

Unavailable

12

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

13

.NUT This part replaces 08310-22068.

08310-00067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.O-RING (D:3,ID:24.5)

09280-24003

$1.55
