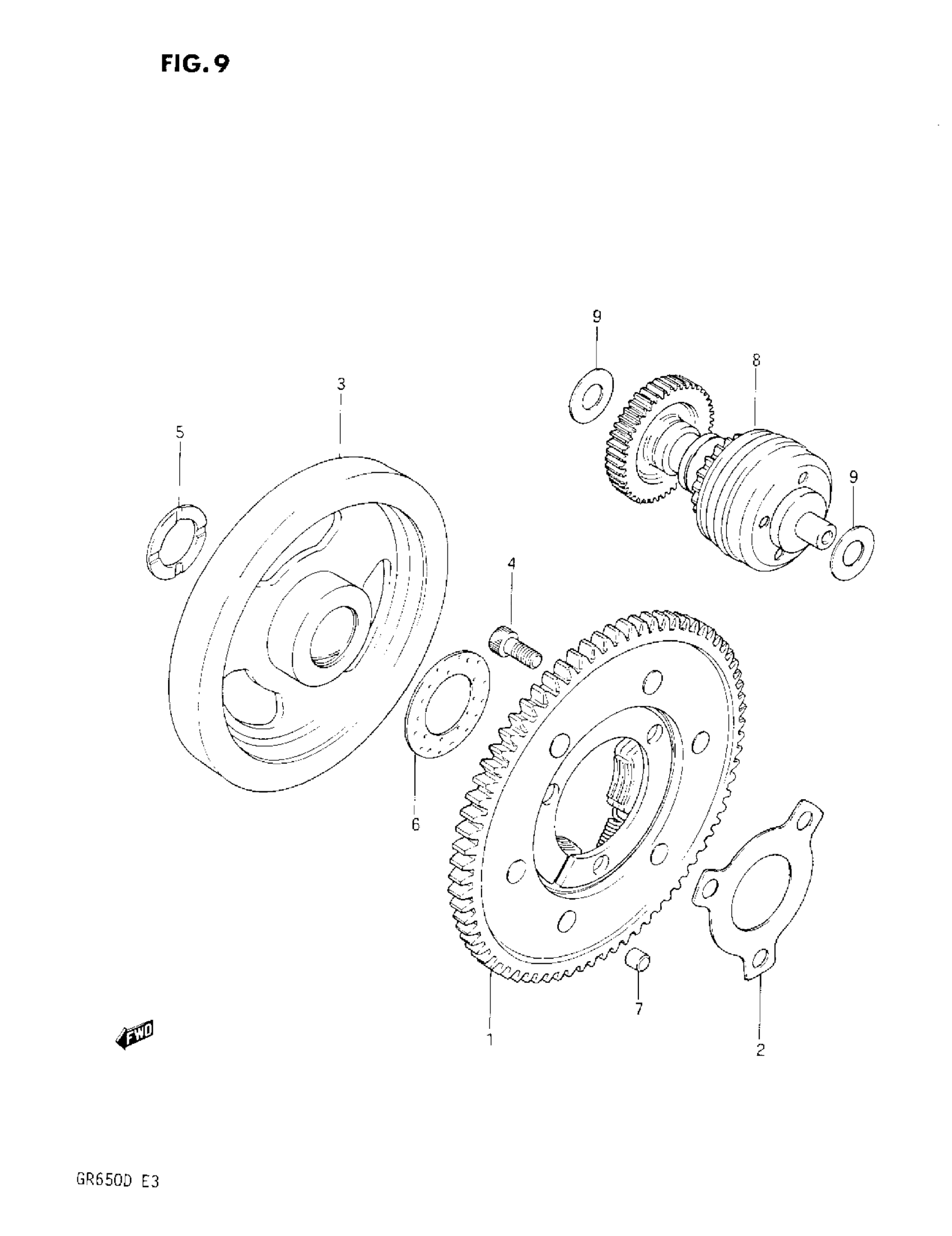

Suzuki GR650 (1983) STARTER CLUTCH Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 12625-15502.

12625-15505

Unavailable

2

SHIM

12648-15500

Unavailable

3

FLYWHEEL

12655-15501

Unavailable

4

BOLT This part replaces 09106-08006.

07130-0816A

$3.16

5

THRUST WASHER, INNER

09160-27005

$12.93

6

THRUST WASHER, OUTER

09160-27006

Unavailable

7

PIN

09261-06004

Unavailable

8

PINION ASS'Y, STARTING MOTOR

31370-15510

Unavailable

9

WASHER, LH This part replaces 31371-15510.

08211-12241

$2.06
