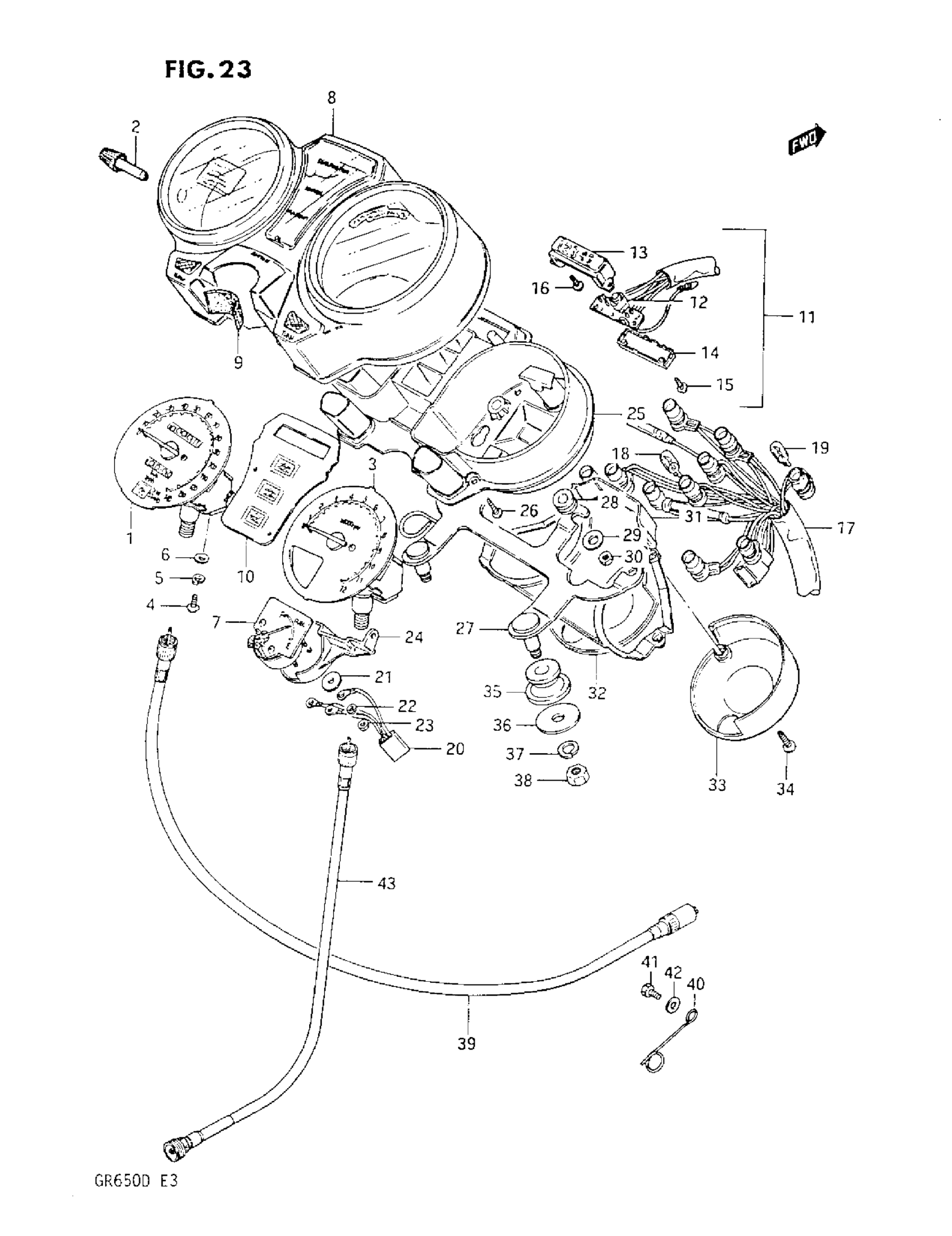

Suzuki GR650 (1983) SPEEDOMETER-TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-15530

Unavailable

2

KNOB

34124-49400

$4.43

3

NO DESCRIPTION AVAILABLE This part replaces 34220-15530.

34220-15510

Unavailable

4

SCREW This part replaces 02112-04108.

02112-04107

$1.55

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

6

WASHER This part replaces 08322-21048.

08322-01047

$1.86

7

FUELMETER This part replaces 34320-15510.

34320-15511

Unavailable

8

HOOD, METER

34150-15510

Unavailable

9

SEAL

34993-47000

Unavailable

10

PANEL, PILOT LENS

36386-15510

Unavailable

11

INDICATOR, GEAR POSITION This part replaces 36450-34561.

36450-49401

Unavailable

12

BULB

09471-12071

$7.20

13

CASE

36452-49401

Unavailable

14

COVER

36454-45100

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

16

SCREW This part replaces 36456-33220.

35625-01A00

Unavailable

17

SOCKET

34173-15510

Unavailable

18

BULB (12V3.4W)

09471-12028

$1.99

19

BULB (12V, 1.7W)

09471-12077

$3.55

20

LEAD WIRE, FUELMETER This part replaces 34378-15510.

34378-15511

Unavailable

21

WASHER

34384-33220

Unavailable

22

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

23

NUT This part replaces 08310-11038.

08310-0003B

$2.83

24

BRACKET, FUEL METER

34951-15510

Unavailable

25

CASE, METER

34111-15510

Unavailable

26

SCREW

36456-15510

Unavailable

27

BRACKET, METER

34950-15510

Unavailable

28

CUSHION, METER NO.1 This part replaces 34189-15510.

34189-32B00

$5.78

29

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

30

NUT This part replaces 08310-11058.

08310-00057

$1.84

31

COVER, LOWER

36383-15510

Unavailable

32

COVER, SPEEDOMETER

34193-15510

Unavailable

33

COVER, TACHOMETER

34293-15510

Unavailable

34

SCREW This part replaces 36456-15520.

03141-0420A

$1.70

35

CUSHION

34956-31001

$4.37

36

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

37

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

38

NUT This part replaces 08310-11085.

08310-0008A

$1.84

39

CABLE, SPEEDOMETER

34910-15500

Unavailable

40

GUIDE, SPEEDOMETER CABLE

34938-45100

$6.57

41

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

42

WASHER This part replaces 08322-21068.

08322-01067

$2.13

43

CABLE ASSY,TACH This part replaces 34940-45211.

34940-45213

$22.66
