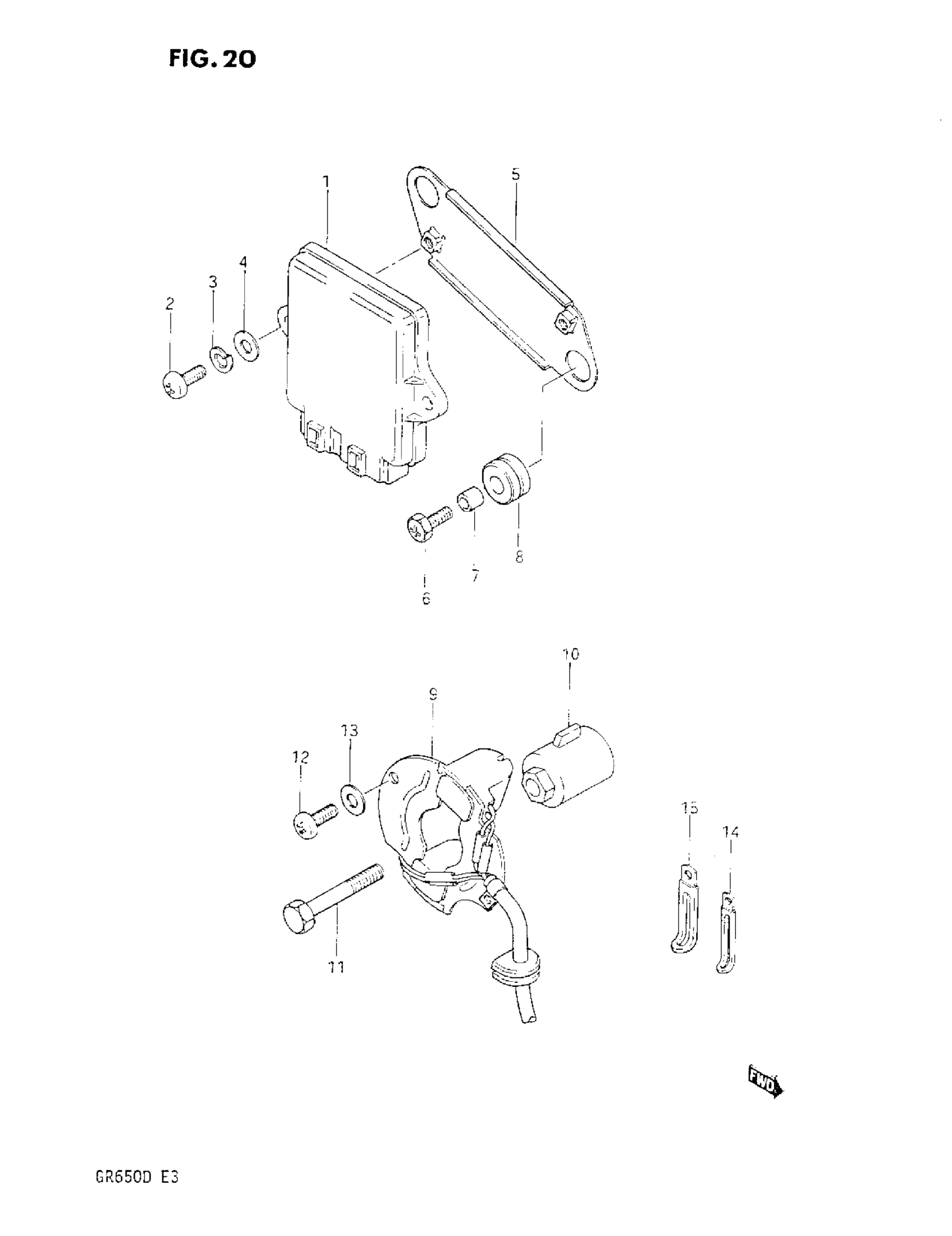

Suzuki GR650 (1983) SIGNAL GENERATOR Diagram

#

Description
Price

1

IGNITER UNIT

32900-15500

Unavailable

2

SCREW This part replaces 02112-06168.

02112-06167

$1.49

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

4

WASHER This part replaces 08322-21068.

08322-01067

$2.13

5

PLATE, IGNITER

32931-15500

Unavailable

6

SCREW

09128-06039

Unavailable

7

SPACER

09180-06092

$3.42

8

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

9

SIGNAL GENERATOR ASS'Y

33110-15500

Unavailable

10

ROTOR, SIGNAL

33120-15500

Unavailable

11

BOLT This part replaces 01107-08508.

01500-08507

$3.05

12

SCREW

09125-05024

$1.72

13

WASHER This part replaces 09160-05027.

08322-01057

$2.13

14

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

15

CLAMP This part replaces 09404-08401.

09404-08420

$3.16
