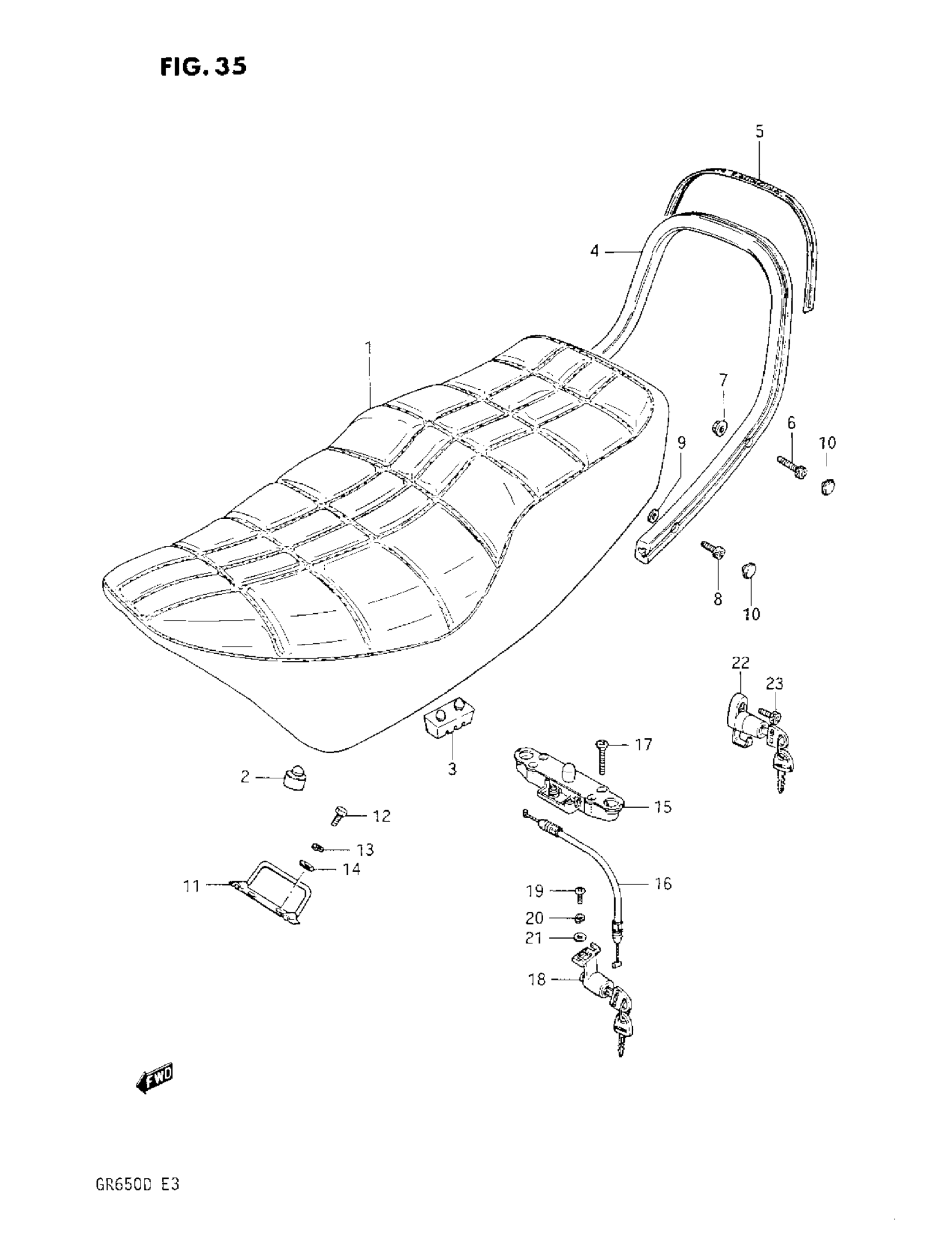

Suzuki GR650 (1983) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45100-15510-48H.

45100-15520-48H

Unavailable

2

CUSHION

09329-10001

$2.12

3

CUSHION

09321-08009

$3.05

4

NO DESCRIPTION AVAILABLE This part replaces 46210-15510.

46210-15521

Unavailable

5

RUBBER

46214-34410

Unavailable

6

BOLT This part replaces 09106-08010.

07130-0825B

$3.37

7

NUT This part replaces 08310-22088.

08310-00087

$2.13

8

BOLT, BRACKET This part replaces 09106-08017.

07130-08207

$4.32

9

WASHER

09160-08066

Unavailable

10

CAP

09250-06004

$1.49

11

PLATE, FRONT

45210-15500

Unavailable

12

BOLT This part replaces 01107-06208.

01500-06207

$2.28

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

LOCK ASSY, SEAT STRIKER This part replaces 45220-13600.

45220-13601

$80.52

16

CABLE, SEAT LOCK

45280-15500

Unavailable

17

SCREW This part replaces 02122-06308.

02122-0630B

$2.06

18

LOCK SET, SEAT

45700-15500-KEY

Unavailable

19

SCREW This part replaces 02112-05108.

02112-05107

$1.49

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

21

WASHER This part replaces 08322-21058.

08322-01057

$2.13

22

LOCK SET, HELMET This part replaces 95700-31300-KEY.

95700-31810

Unavailable

23

BOLT This part replaces 09106-06036.

07130-0616B

$2.39
