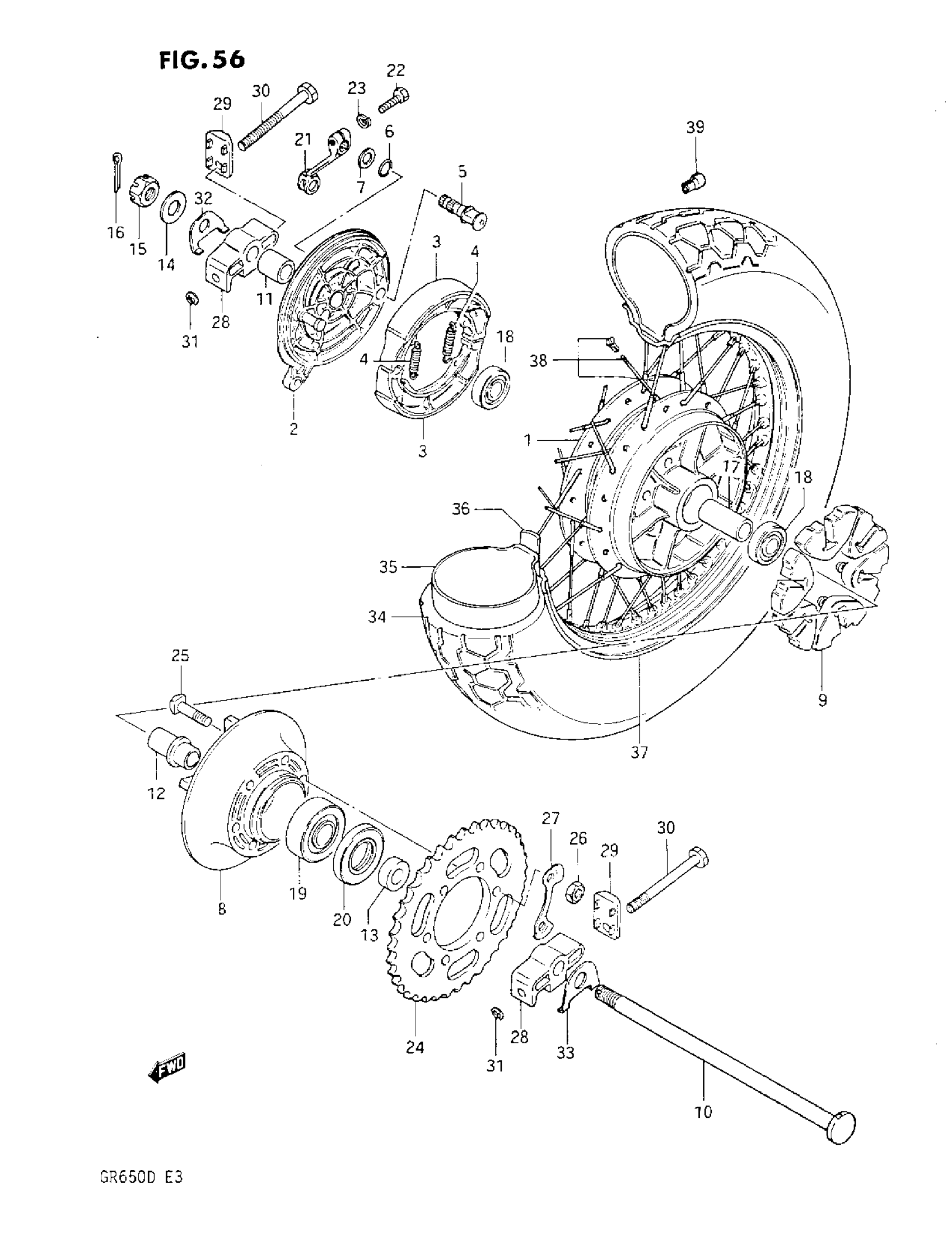

Suzuki GR650 (1983) REAR WHEEL (GR650XD) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-15500

Unavailable

2

PANEL

64210-15500

Unavailable

3

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

Unavailable

4

SPRING

55420-30000

$4.48

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

DRUM, SPROCKET This part replaces 64611-31001.

64611-31003

Unavailable

9

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

10

AXLE, REAR This part replaces 64711-15501.

64711-15502

Unavailable

11

SPACER, RH

09180-17070

Unavailable

12

RETAINER, DRUM

64733-31300

$23.63

13

SPACER, LH

09180-17068

Unavailable

14

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

15

NUT

09141-16001

Unavailable

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

17

SPACER, BEARING

09180-17069

$23.93

18

BEARING

08143-63037

$22.58

19

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

20

OIL SEAL

09285-33001

$13.27

21

LEVER, BRAKE CAM

64451-15500

Unavailable

22

BOLT This part replaces 01107-06258.

01500-06257

$1.97

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

NO DESCRIPTION AVAILABLE This part replaces 64511-31760.

64511-15510

Unavailable

25

BOLT This part replaces 09119-10002.

09105-10001

$2.87

26

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.70

27

WASHER

09169-10007

Unavailable

28

ADJUSTER, CHAIN

61411-15500

Unavailable

29

NO DESCRIPTION AVAILABLE This part replaces 61421-15500.

61421-15501

Unavailable

30

BOLT, ADJUSTER

61431-16700

Unavailable

31

E RING This part replaces 08332-11046.

08332-1104A

$1.49

32

WASHER, RH This part replaces 64713-15500.

64713-43400

Unavailable

33

WASHER, LH This part replaces 64712-15501.

64712-43401

Unavailable

34

TIRE, REAR (130/90/16 67H) | IRC

65100-15515

Unavailable

34

TIRE, REAR (130190-16 67H) | BS This part replaces 65100-15535.

65100-15515

Unavailable

35

TUBE, INNER | IRC This part replaces 65200-49100.

65200-05A30

Unavailable

35

TUBE, INNER | BS

65200-49120

Unavailable

36

PROTECTOR | IRC

65261-37300

Unavailable

36

PROTECTOR | BS

65261-37320

Unavailable

37

RIM (MT2.50X16)

65311-15500

Unavailable

38

SPOKE SET

65320-15500

Unavailable

39

BALANCER WHEEL (15G) | 0-3, UN This part replaces 55411-11000.

55411-26G00

$7.73

39

BALANCER WHEEL (30G) | 0-3, UN This part replaces 55412-11000.

55413-41F00

$7.50
