1983 Suzuki GR650 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1983 Suzuki GR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

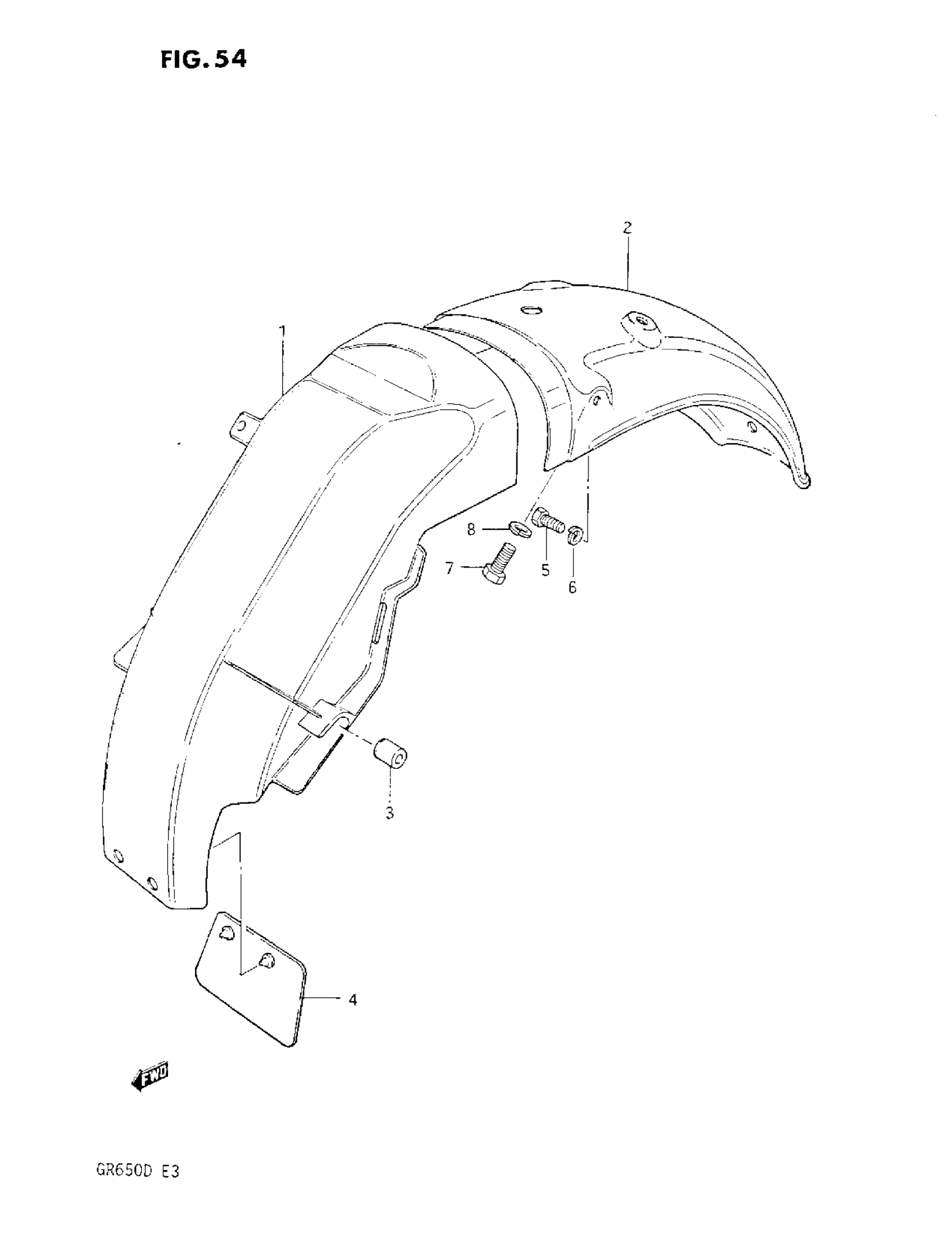

1983 Suzuki GR650 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER FRONT

63112-15500

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 63110-15500.

63110-15501

1
Out of stock

3

CUSHION This part replaces 09329-05003.

09329-05009

2
Out of stock

4

MUD GUARD

63411-31900

1
Out of stock

5

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

6

2

$2.28

In stock

7

BOLT, REAR This part replaces 01107-08208.

01500-08207

2
Out of stock

8

2

$2.28

In stock
