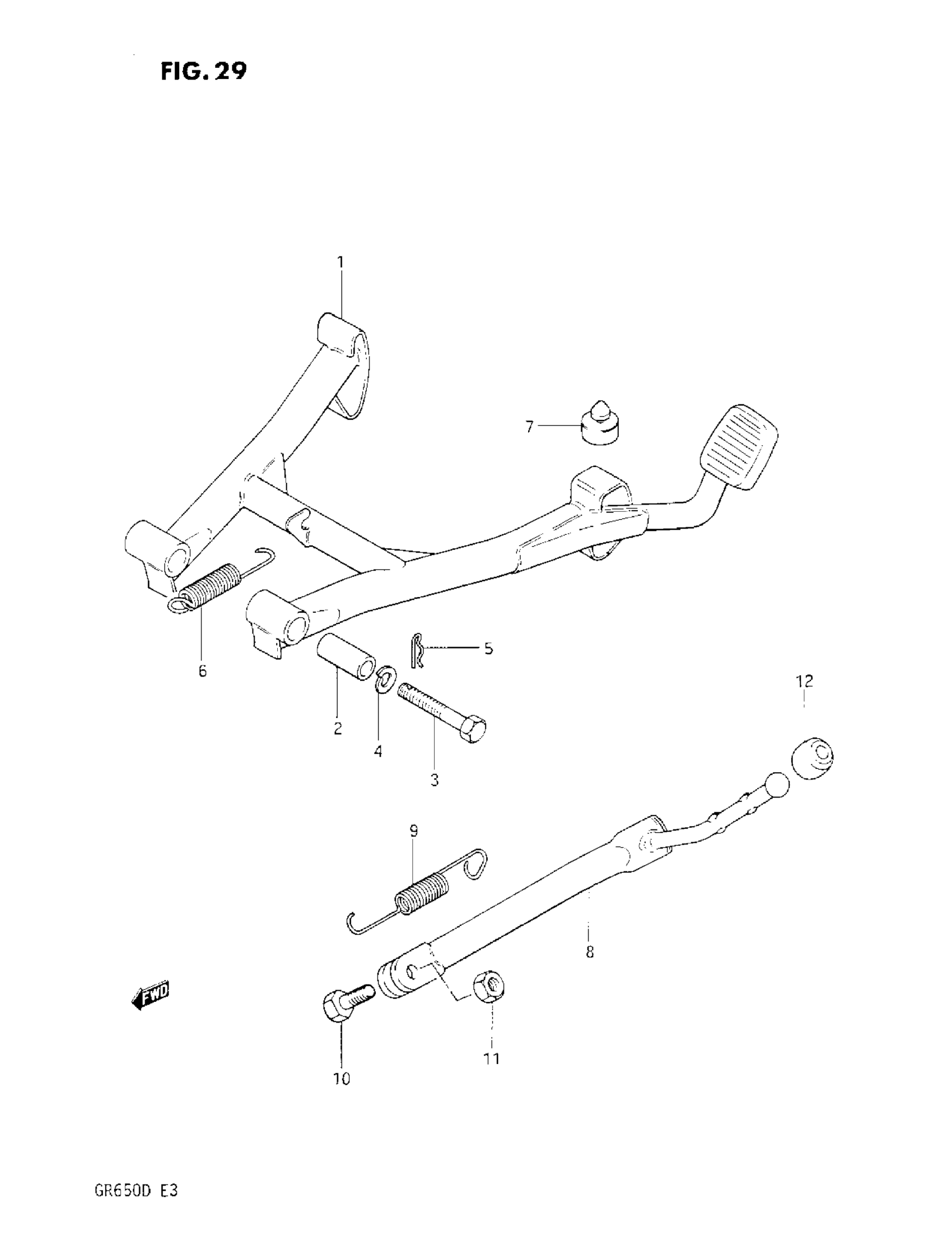

Suzuki GR650 (1983) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-15500

Unavailable

2

SPACER

09180-10040

$3.12

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING

09443-18010

Unavailable

7

CUSHION

09321-10001

$2.69

8

STAND, PROP

42310-15500

Unavailable

9

SPRING

09443-13013

Unavailable

10

BOLT This part replaces 09111-10019.

09111-10047

$3.90

11

NUT This part replaces 08310-22108.

08310-00107

$2.25

12

CUSHION

09320-07001

$2.80
