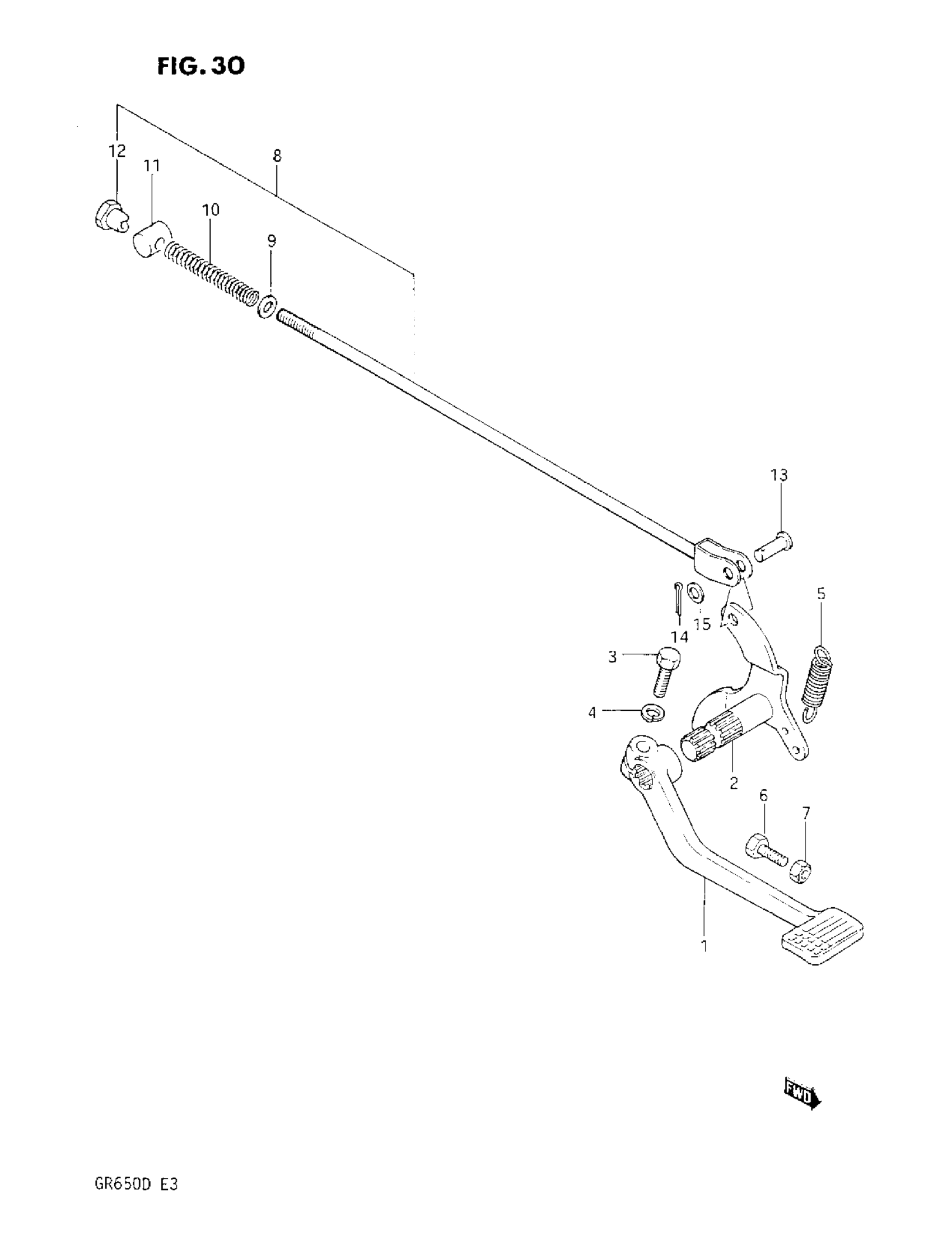

Suzuki GR650 (1983) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43111-15500

Unavailable

2

ARM, BRAKE PEDAL ROD

43120-15500

Unavailable

3

BOLT

01204-08257

$1.96

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

SPRING

09443-14013

$2.98

6

BOLT

09100-06009

$1.91

7

.NUT This part replaces 08310-11068.

08310-00067

$2.13

8

ROD ASS'Y, REAR BRAKE

43300-15500

Unavailable

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

SPRING

09440-09004

$2.20

11

.PIN (13X18) This part replaces 09209-13005.

09209-13018

$3.42

12

.NUT This part replaces 09150-06009.

09150-06010

$3.10

13

PIN

09200-06013

$2.00

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13
