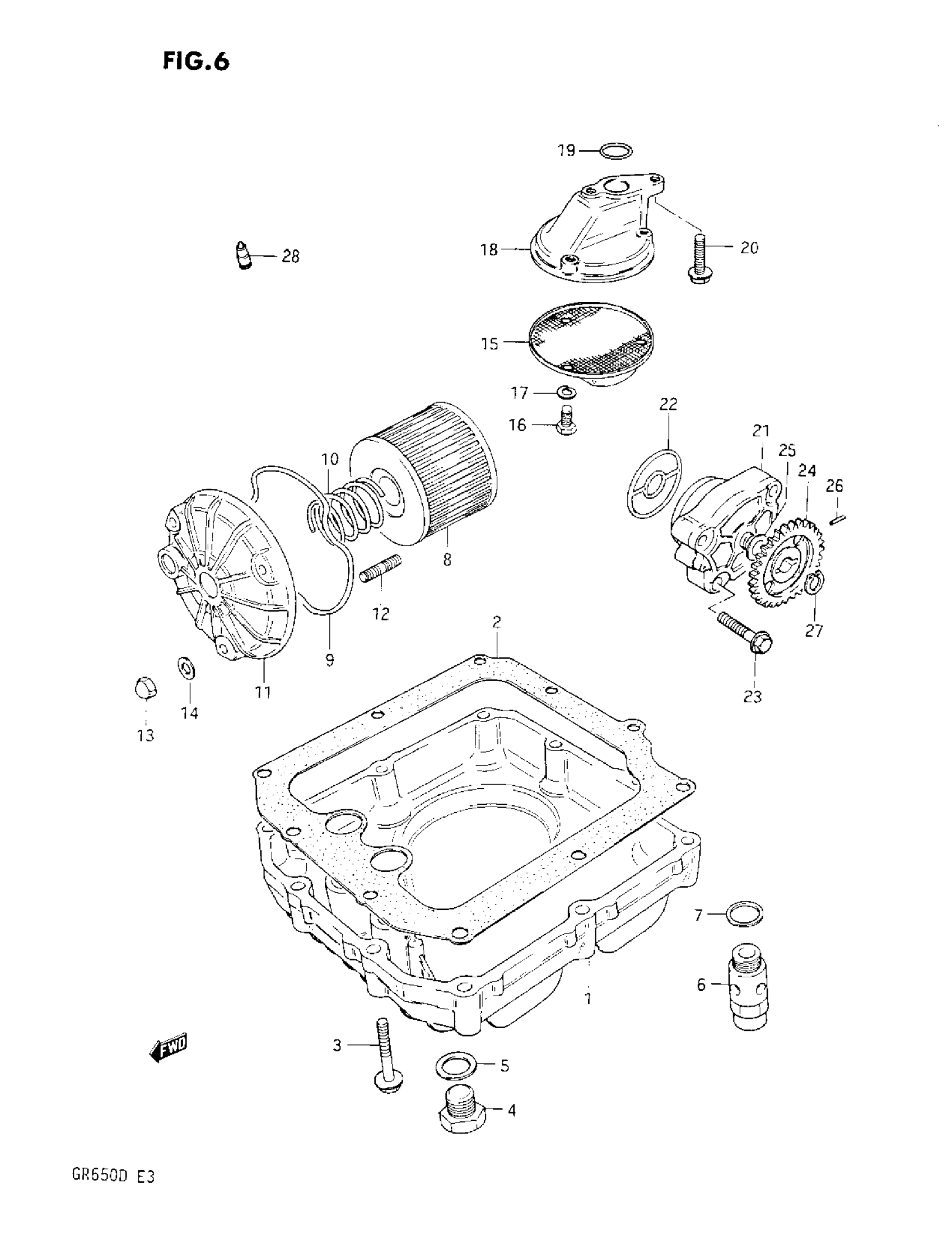

Suzuki GR650 (1983) OIL FILTER-OIL PUMP Diagram

NO DESCRIPTION AVAILABLE This part replaces 11511-15500.

11510-15510

Unavailable

GASKET,OIL PAN( This part replaces 11489-15501.

11489-15501-H17

Unavailable

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

GASKET

09168-14004

$1.83

VALVE ASSY, OIL RELIEF This part replaces 16440-15500.

16440-11D00

$59.07

WASHER

08212-14181

Unavailable

FILTER, ENGINE OIL

16510-45040

$5.96

O-RING

16518-45000

$5.70

SPRING

09440-32004

$2.92

NO DESCRIPTION AVAILABLE This part replaces 16512-33320.

16512-33321

Unavailable

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

NUT This part replaces 08313-11065.

08313-1006A

$1.84

.WASHER This part replaces 08322-21065.

08322-0106B

$2.26

STRAINER, OIL This part replaces 16520-09300.

16520-09301

$15.42

BOLT This part replaces 01107-06128.

01500-06127

$1.97

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

PROTECTOR

16525-15500

Unavailable

O RING (D:3.2,ID:15.8)

09280-16008

$2.02

BOLT This part replaces 01517-06208.

01550-06207

$2.30

PUMP, ENGINE OIL

16400-15500

Unavailable

O RING This part replaces 16491-49200.

16491-31300

$13.90

BOLT This part replaces 01517-06308.

01550-06307

$2.69

GEAR, OIL PUMP DRIVEN This part replaces 16331-15500.

16331-02F00

$69.38

WASHER

08221-10185

$2.15

PIN

09261-04009

$1.56

CIRCLIP

08331-31109

$1.78

VALVE ASS'Y, PISTON OIL

16430-15500

Unavailable
