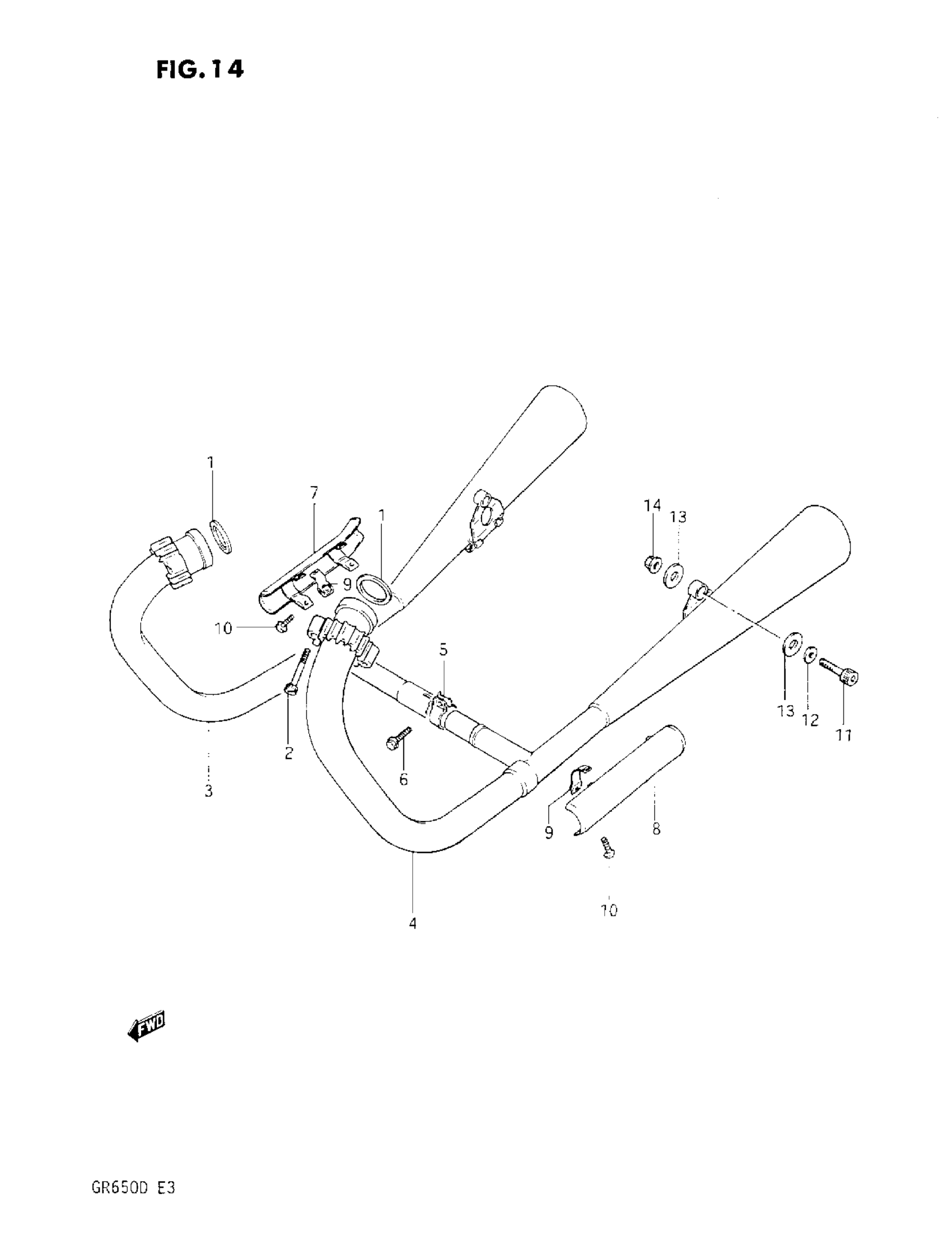

Suzuki GR650 (1983) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-11020.

14181-01D00

$7.11

2

BOLT,8X38 This part replaces 09106-08035.

09106-08036-XC0

$2.92

3

MUFFLFR, RH

14301-15530-H01

Unavailable

4

MUFFLER, LH

14302-15530-H01

Unavailable

5

CLAMP

14772-15500

Unavailable

6

BOLT This part replaces 01517-06258.

01550-06257

$2.30

7

COVER, MUFFLER RH

14780-15500

Unavailable

8

COVER, MUFFLER LH

14790-15500

Unavailable

9

CLAMP

14785-15500

Unavailable

10

SCREW This part replaces 02112-05168.

02112-05167

$1.97

11

BOLT, L This part replaces 09106-10014.

07130-1040B

$5.37

12

WASHER 12,5X18X This part replaces 14419-15500.

09160-12087

$2.30

13

WASHER

09160-10039

$2.26

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39
