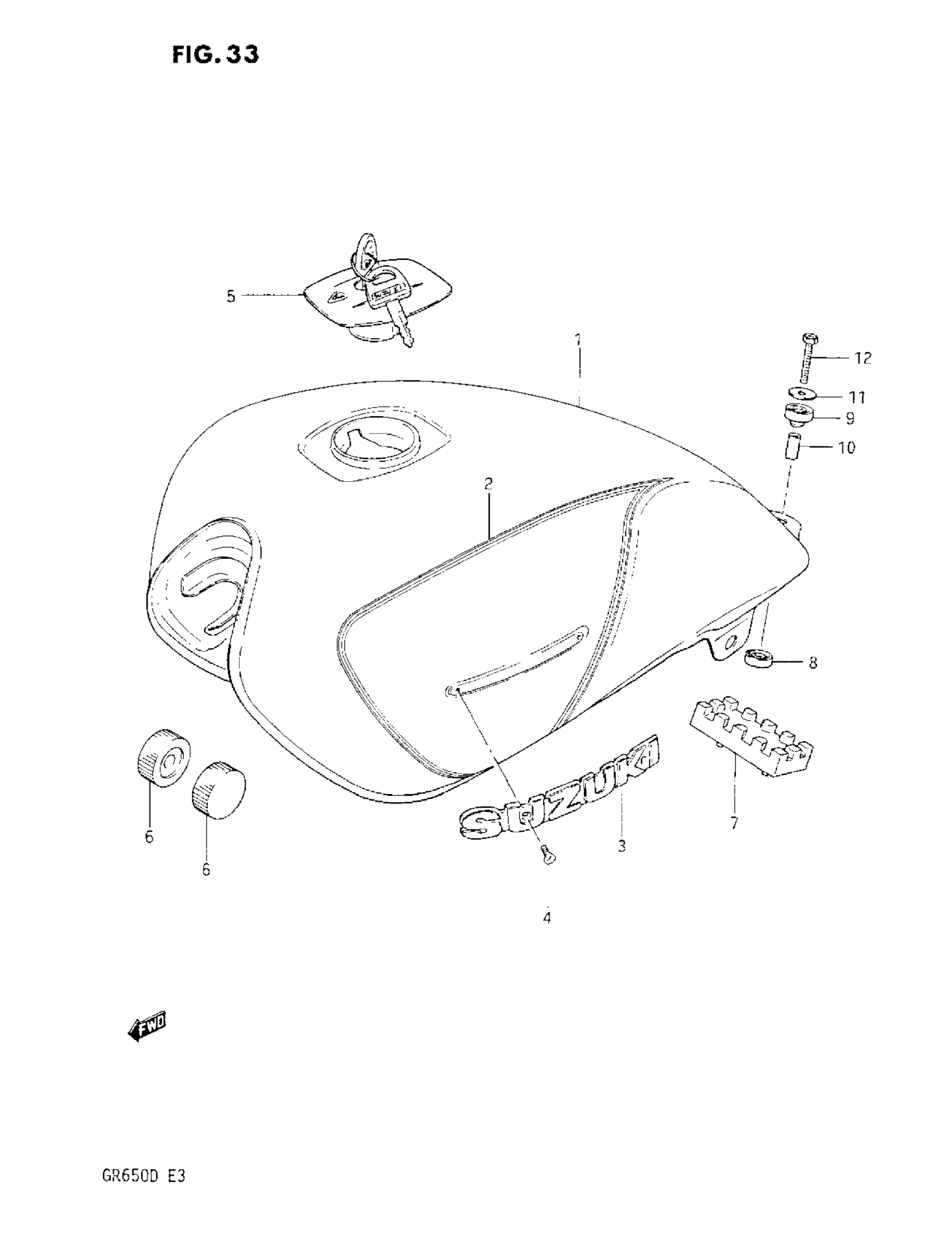

Suzuki GR650 (1983) FUEL TANK (GR650XD) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-15510-00J.

44110-15500-13L

Unavailable

2

TAPE SET

68110-15510-88L

Unavailable

3

EMBLEM

68111-15500

Unavailable

4

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

5

CAP SET,FUEL TA This part replaces 44200-49017-KEY.

44200-49811

$144.42

6

CUSHION, FRONT

09329-10016

$3.10

7

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

8

CUSHION, REAR LOWER

09320-14013

$2.11

9

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

10

SPACER,6.5X9X20 This part replaces 09180-06118.

09180-06308

Unavailable

11

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

12

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48
