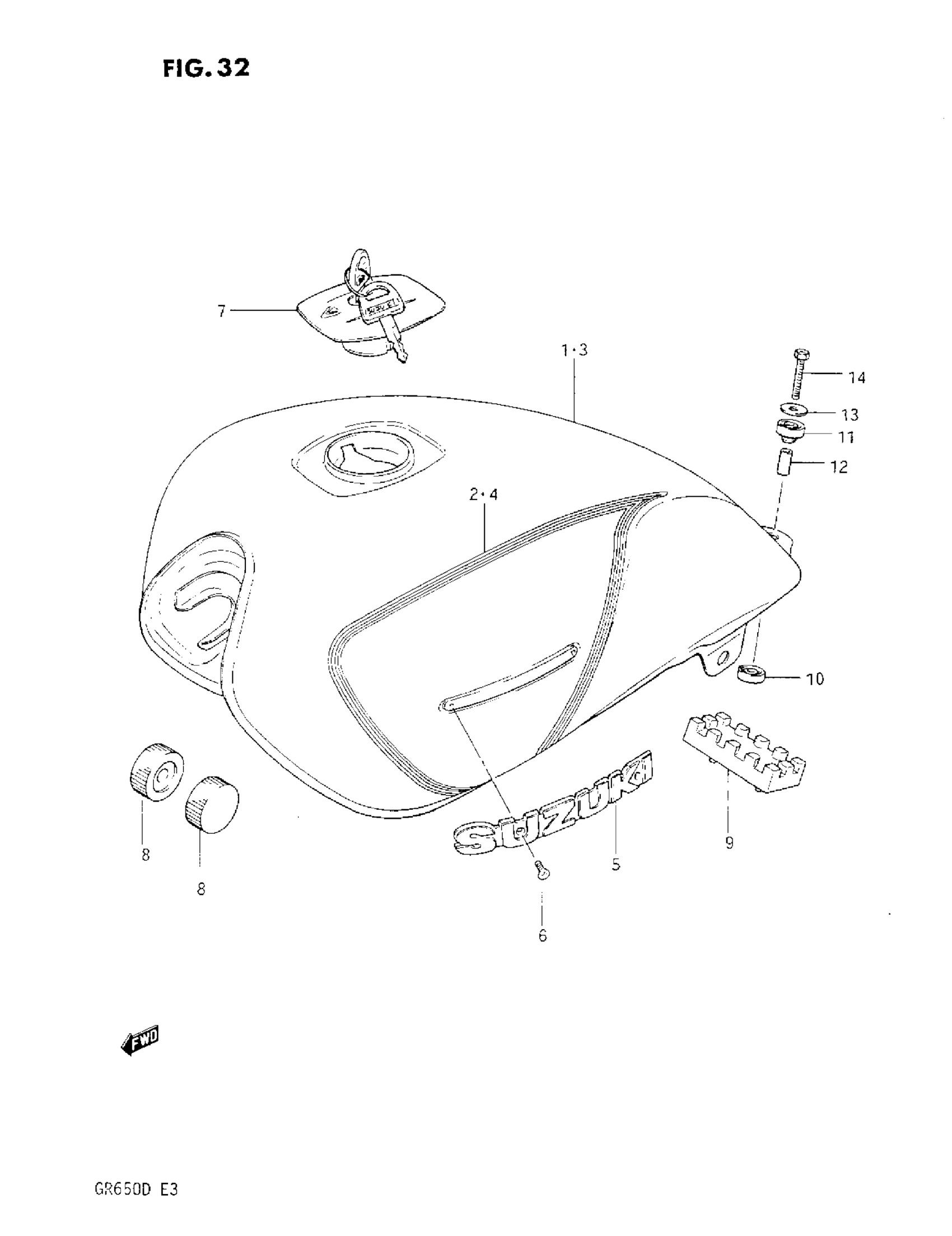

Suzuki GR650 (1983) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44100-15500-88F.

44110-15500-13L

Unavailable

2

TAPE SET

68110-15500-93C

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 44100-15500-78S.

44110-15500-13L

Unavailable

4

TAPE SET

68110-15500-78V

Unavailable

5

EMBLEM

68111-15500

Unavailable

6

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

7

CAP SET,FUEL TA This part replaces 44200-49017-KEY.

44200-49811

$144.42

8

CUSHION, FRONT

09329-10016

$3.10

9

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

10

CUSHION, REAR LOWER

09320-14013

$2.11

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

SPACER,6.5X9X20 This part replaces 09180-06118.

09180-06308

Unavailable

13

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

14

BOLT, REAR This part replaces 01107-06308.

01500-06307

$2.48
