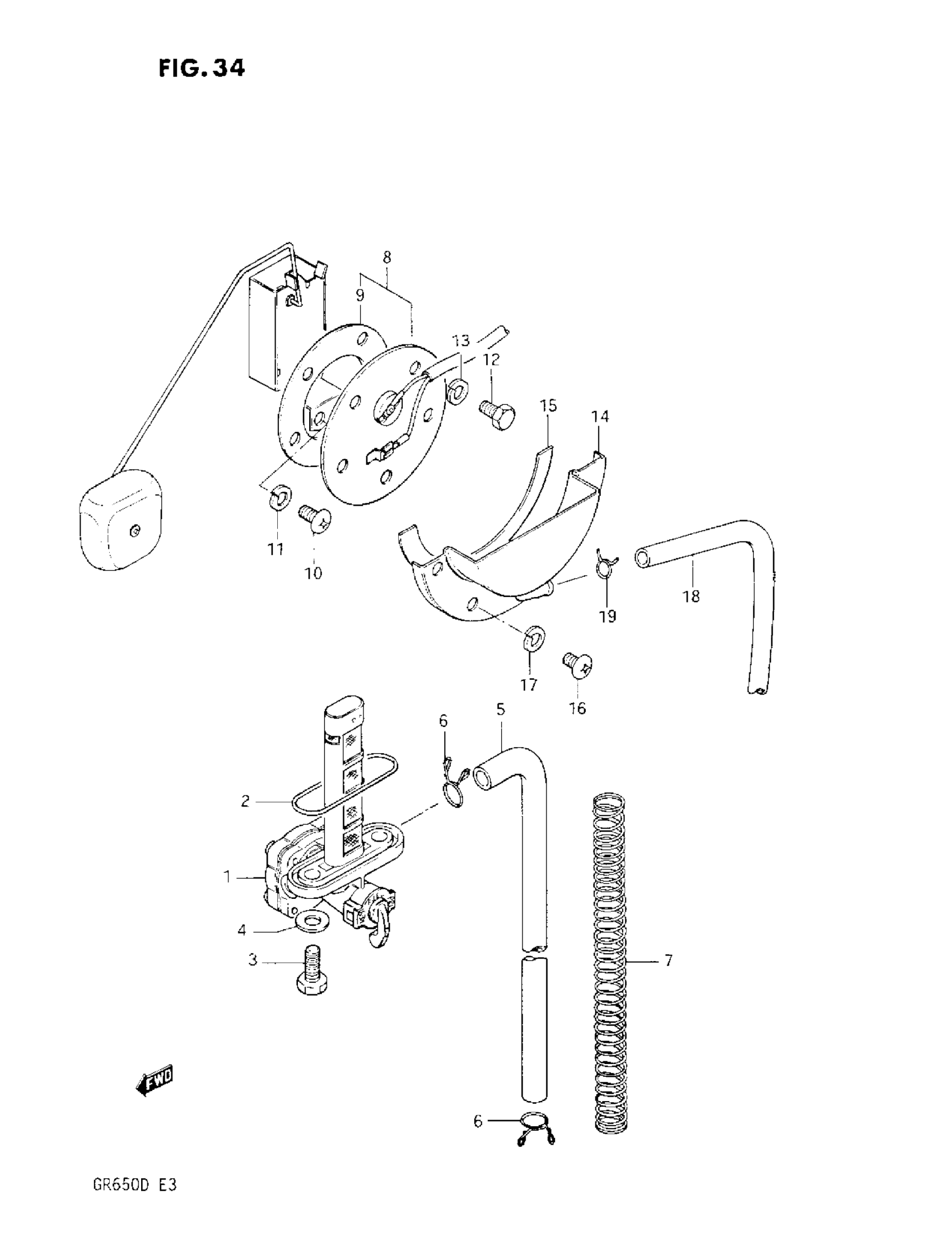

Suzuki GR650 (1983) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY,FUEL This part replaces 44300-34470.

44300-45373

$72.12

2

O RING This part replaces 44348-49170.

44348-49171

$2.88

3

BOLT This part replaces 09128-06006.

09128-06057

$1.65

4

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

5

HOSE(7X10.2X200 This part replaces 09343-07073.

09352-70104-00B

$15.32

6

CLIP

09401-10403

$1.65

7

SPRING This part replaces 09440-13020.

09440-13051

$10.76

8

GAUGE, FUEL LEVEL

34810-15501

Unavailable

9

GASKET

34825-45100

$5.80

10

SCREW This part replaces 02112-05108.

02112-05107

$1.49

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

12

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

PLATE

34885-34500

Unavailable

15

GASKET,FUEL DRA This part replaces 34888-34500.

34888-34501

Unavailable

16

SCREW This part replaces 02112-05088.

02112-05087

$1.49

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

19

CLIP

09401-08402

$1.49
