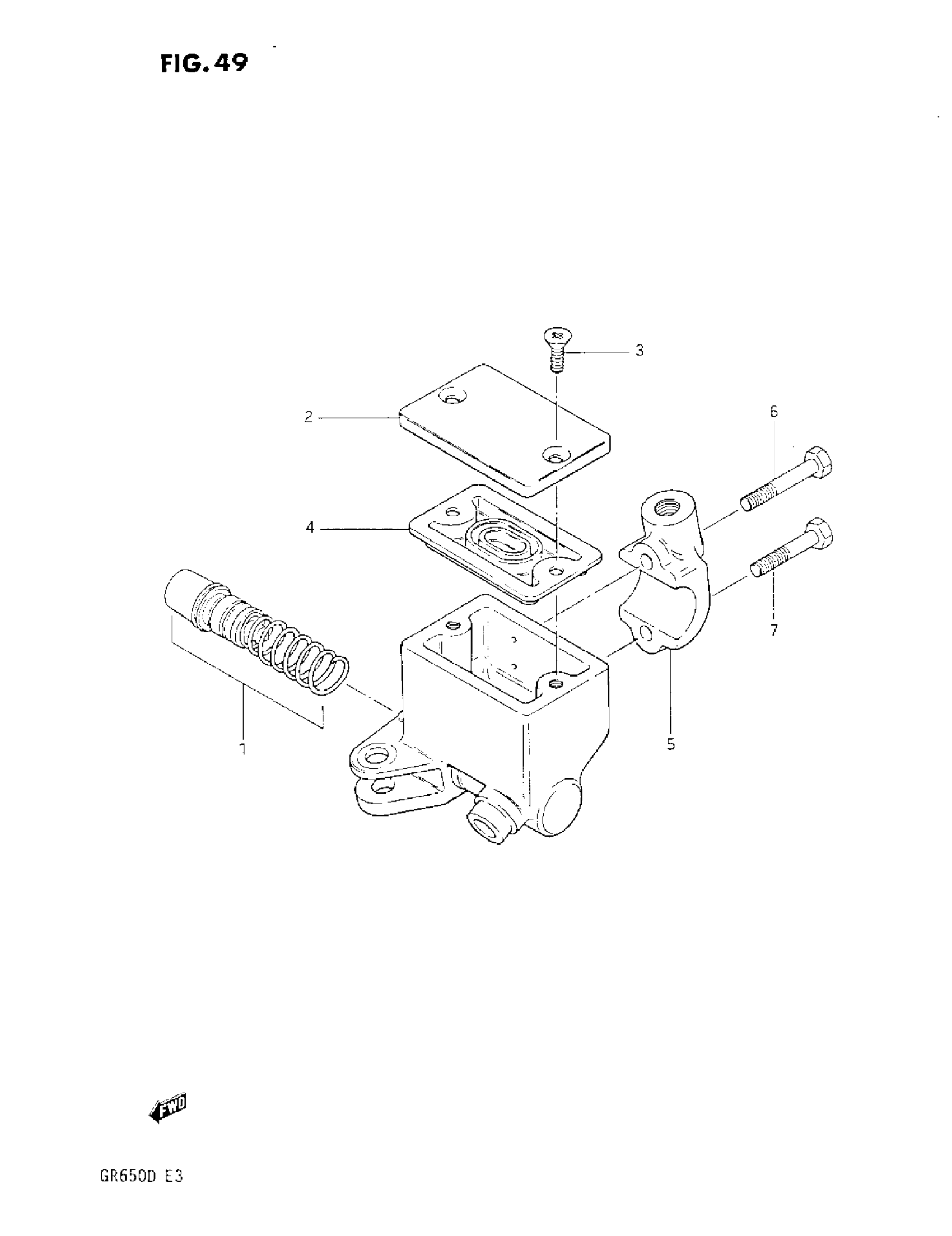

Suzuki GR650 (1983) FRONT MASTER CYLINDER Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 59600-47430.

59600-47410

Unavailable

1

PISTON & CUP SE This part replaces 59600-49820.

59600-49821

Unavailable

2

CAP This part replaces 59669-49330.

59669-49350

Unavailable

3

SCREW This part replaces 59691-49300.

59691-49310

Unavailable

4

DIAPHRAGM,MASTE This part replaces 59667-49300.

59667-49301

Unavailable

5

HOLDER

59671-49000

Unavailable

6

BOLT, UPPER

59694-49001

Unavailable

7

BOLT, LOWER

59693-49001

Unavailable
