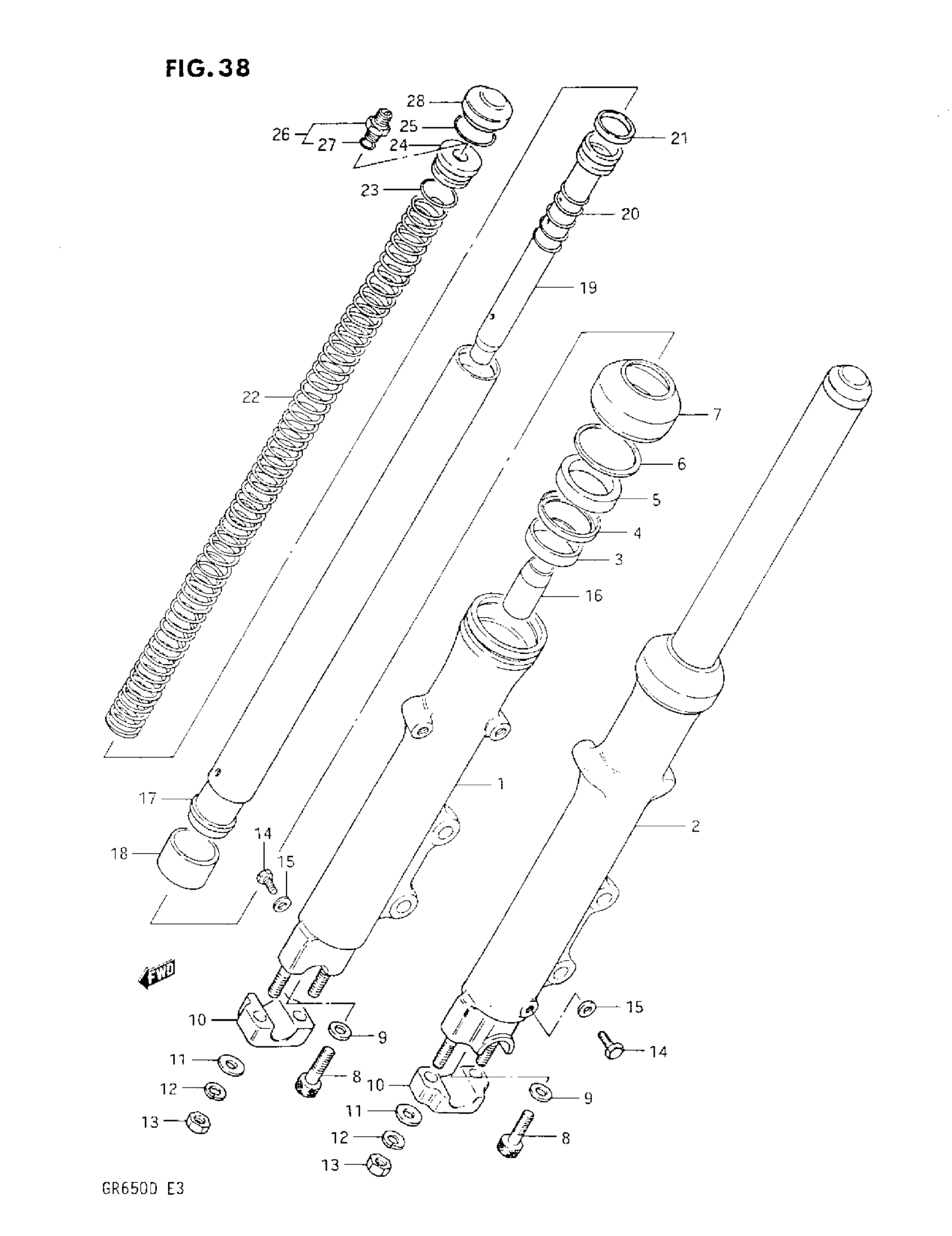

Suzuki GR650 (1983) FRONT DAMPER (GR650D) Diagram

#

Description
Price

1

DAMPER ASS'Y, RH

51103-15500

Unavailable

1

DAMPER ASS'Y, LH

51104-15500

Unavailable

1

OUTER TUBE, RH

51130-15500

Unavailable

2

OUTER TUBE, LH

51140-15500

Unavailable

3

BUSH, GUIDE This part replaces 51152-15500.

51152-33300

$15.04

4

SPACER, SEAL This part replaces 51168-45031.

51168-30B00

$6.31

5

SEAL, OIL This part replaces 51153-33300.

51153-19D10

$22.96

6

RING, STOPPER This part replaces 51156-45440.

51156-01A00

$4.34

7

DUST SEAL This part replaces 51571-34200.

51571-20520

Unavailable

8

BOLT

51147-48130

$4.34

9

O RING This part replaces 51148-31030.

51148-36011

$3.56

10

HOLDER, AXLE

51132-31030

Unavailable

11

WASHER This part replaces 08322-21088.

08322-01087

$2.13

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

14

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

15

GASKET

51183-31030

$3.77

16

PIECE, OIL LOCK

51195-45030

Unavailable

17

INNER TUBE

51110-15500

Unavailable

18

PISTON

51121-45400

Unavailable

19

CYLINDER

51146-15500

Unavailable

20

SPRING, REBOUND

51177-15500

Unavailable

21

RING, PISTON

51196-15500

Unavailable

22

SPRING

51171-15500

Unavailable

23

O RING This part replaces 51117-31030.

51181-31030

$4.37

24

SEAT, SPRING

51172-34420

Unavailable

25

RING, STOPPER

51169-47400

$2.90

26

VALVE, AIR

51293-45440

Unavailable

27

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

$1.49

28

CAP

51189-34420

Unavailable
