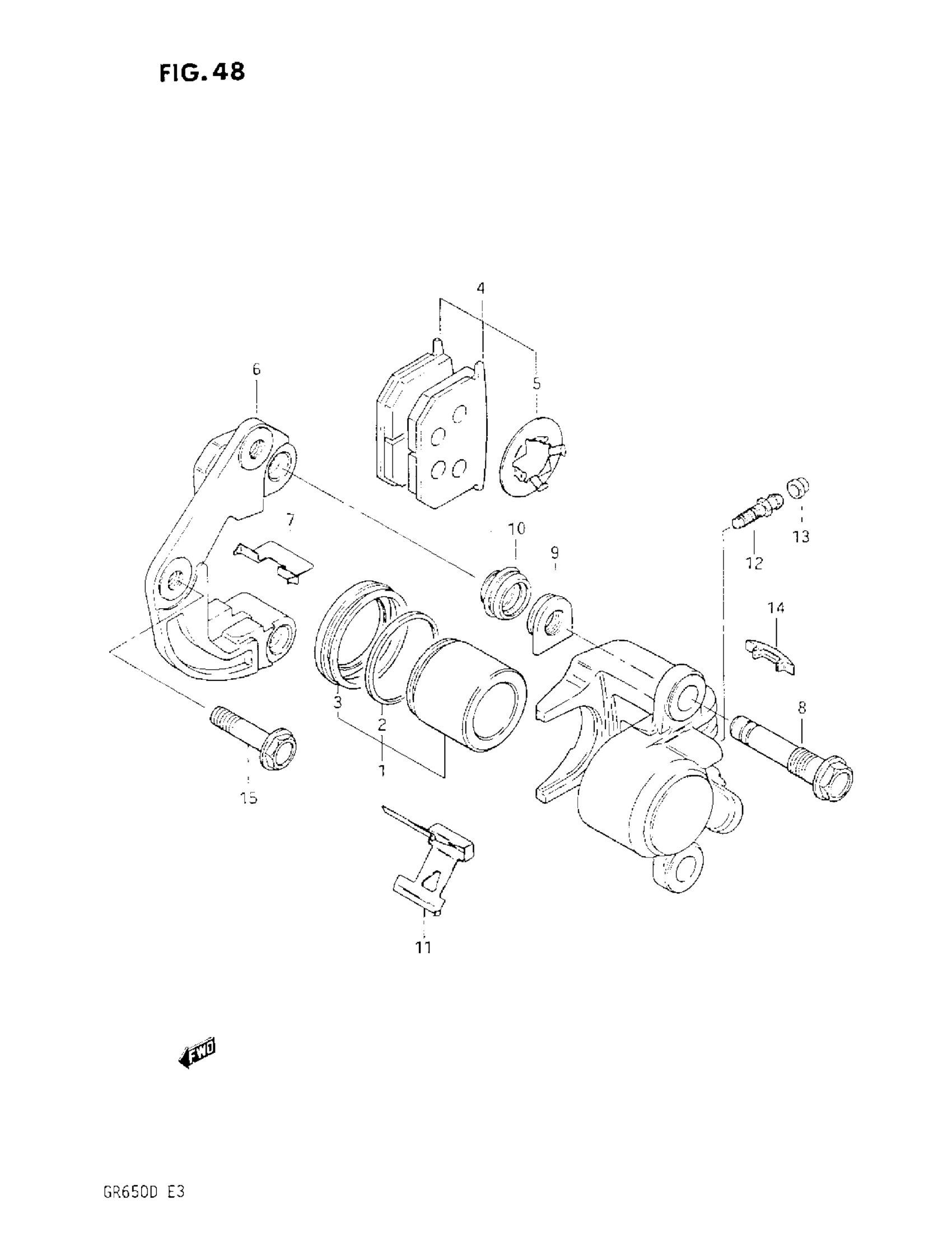

Suzuki GR650 (1983) FRONT CALIPERS Diagram

#

Description

Price

1

CALIPERS ASS'Y, FRONT

59300-49060

Unavailable

1

PISTON SET

59300-49840

Unavailable

2

PISTON SEAL This part replaces 59307-45020.

59307-45021

Unavailable

3

BOOT, PISTON

59308-49050

Unavailable

4

PAD SET

59300-49850

Unavailable

5

SHIM, PAD

59371-49000

Unavailable

6

HOLDER, CALIPERS

59350-49001

Unavailable

7

GUIDE, PAD

59316-49001

Unavailable

8

AXLE

59305-49001

$42.64

9

NUT

59317-49000

Unavailable

10

BOOT

59312-49000

Unavailable

11

SPRING

59315-49000

Unavailable

12

BREATHER This part replaces 59121-47050.

59121-34020

$13.35

13

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

$5.17

14

COVER

59324-49000

Unavailable

15

BOLT

09103-10019

$2.63
