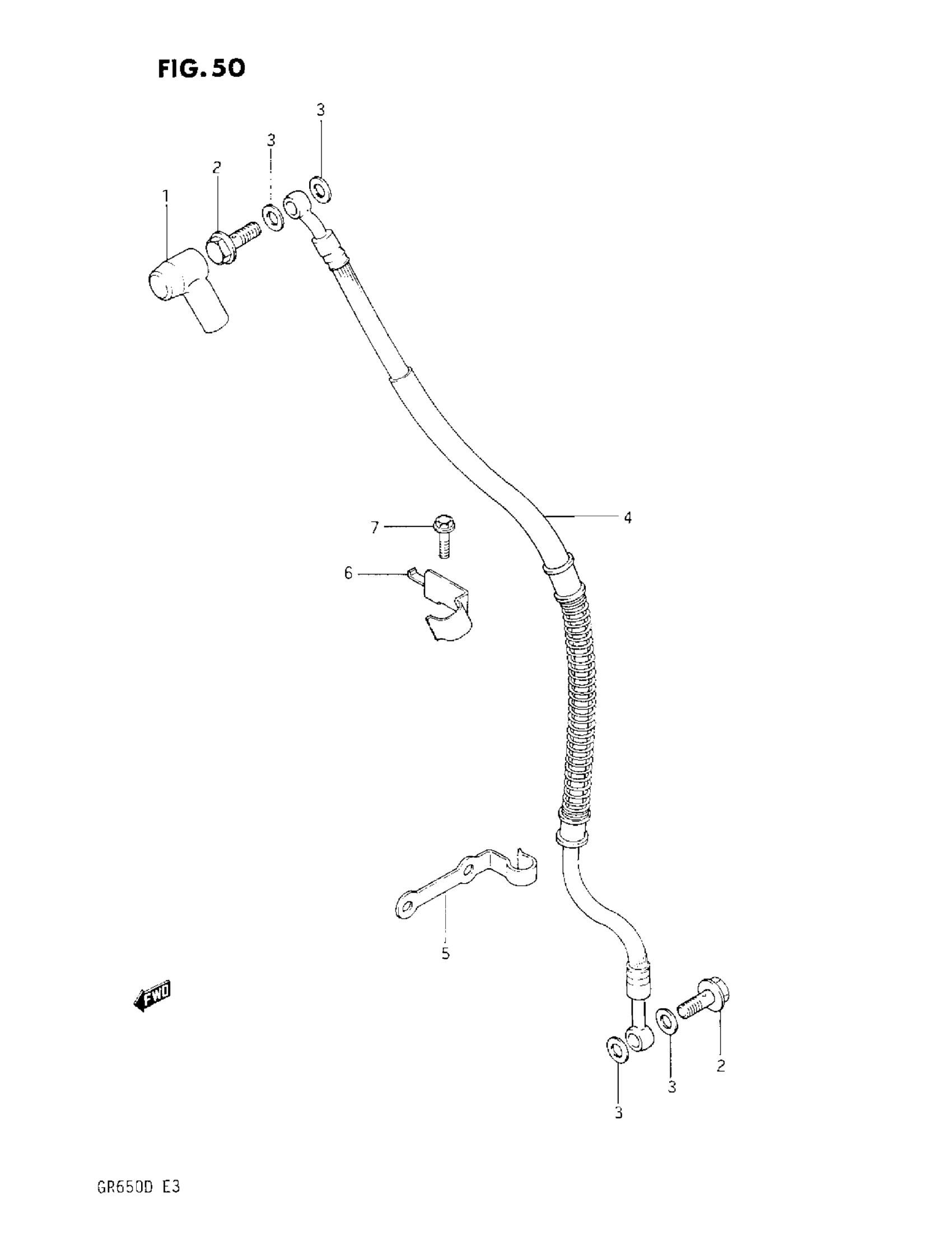

Suzuki GR650 (1983) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOOT, MASTER CYLINDER

59711-49001

$7.51

2

UNION This part replaces 09360-10009.

09360-10017

$3.42

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

NO DESCRIPTION AVAILABLE This part replaces 59480-15503.

59480-15504

Unavailable

5

GUIDE, HOSE NO.2

59268-49001

Unavailable

6

GUIDE

59246-15500

Unavailable

7

BOLT This part replaces 01517-06108.

01550-06107

$2.80
