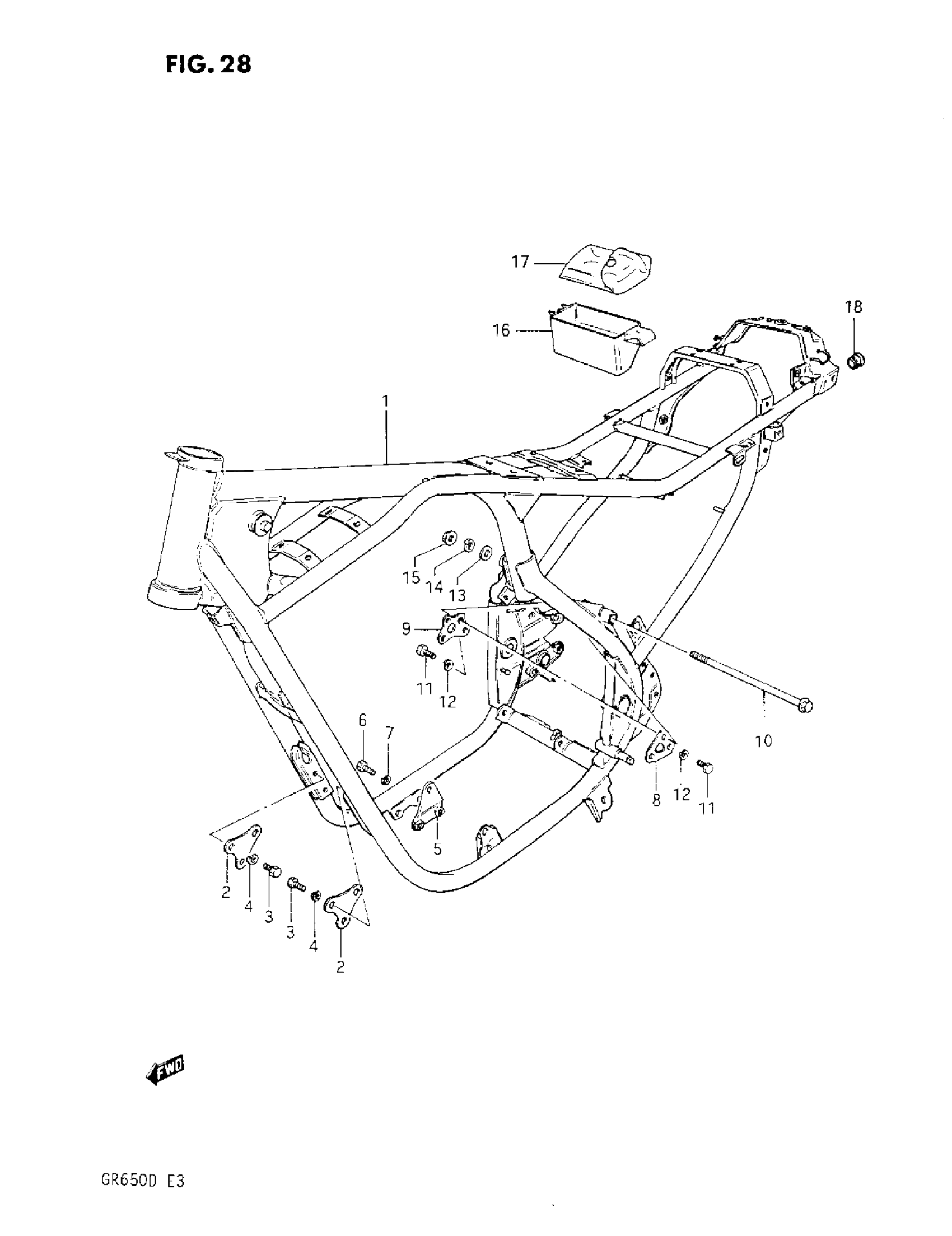

Suzuki GR650 (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-15500-019

Unavailable

2

PLATE, NO.1 (BLACK)

41911-15500-019

Unavailable

3

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, NO.2 RH (BLACK)

41930-15500-019

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.4 LH (BLACK)

41971-15500-019

Unavailable

9

PLATE, NO.4 RH (BLACK)

41981-15500-019

Unavailable

10

BOLT

09103-08095

Unavailable

11

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

14

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

15

NUT This part replaces 08319-21085.

08319-2108A

$2.12

16

HOLDER, TOOL

47431-15500

Unavailable

17

TOOL SET This part replaces 09800-06800.

09800-06801

Unavailable

18

CAP

09250-22002

$1.99
