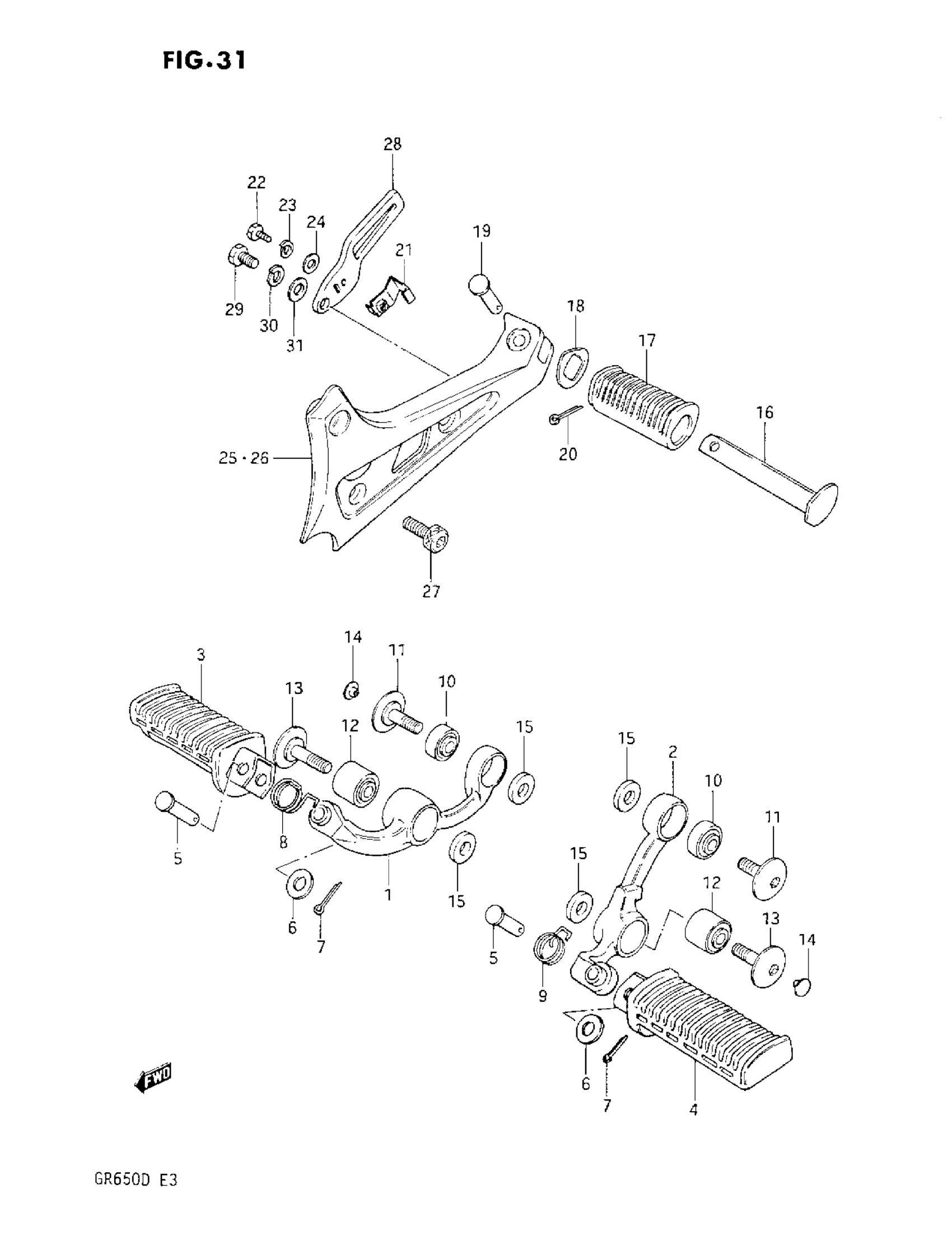

Suzuki GR650 (1983) FOOTREST Diagram

#

Description
Price

1

BAR, FOOTREST

43510-15500

Unavailable

2

BAR, FOOTREST LH

43520-15500

Unavailable

3

RUBBER FR FOOTR This part replaces 43550-34500.

43550-34501

$54.32

4

RUBBER FR FOOTR This part replaces 43560-34500.

43560-34501

Unavailable

5

PIN

09200-08002

$2.05

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

8

SPRING, RH

09448-19014

Unavailable

9

SPRING, LH

09448-19015

Unavailable

10

BUSHING, UPPER

09319-10036

Unavailable

11

BOLT, UPPER

09106-10016

Unavailable

12

BUSHING, LOWER

09319-10040

Unavailable

13

BOLT, LOWER RH

09106-10020

Unavailable

14

CAP

43575-34500

$1.72

15

WASHER (10.5X22X3.2) This part replaces 09160-10075.

09160-10125

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 43610-15500.

43610-15502

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 43620-15500.

43620-15502

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 43612-15500.

43612-15502

Unavailable

18

WASHER

43631-15500

Unavailable

19

PIN

09200-08029

Unavailable

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

21

COVER, PILLION FOOTREST

43680-15500

Unavailable

22

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

BRACKET, MUFFLER RH

43811-15500

Unavailable

26

BRACKET, MUFFLER LH

43821-15500

Unavailable

27

BOLT This part replaces 09106-10012.

07130-1025B

$5.27

28

PLATE, FOOT GUARD

43671-15500

Unavailable

29

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

WASHER This part replaces 08322-11088.

08322-01087

$2.13
