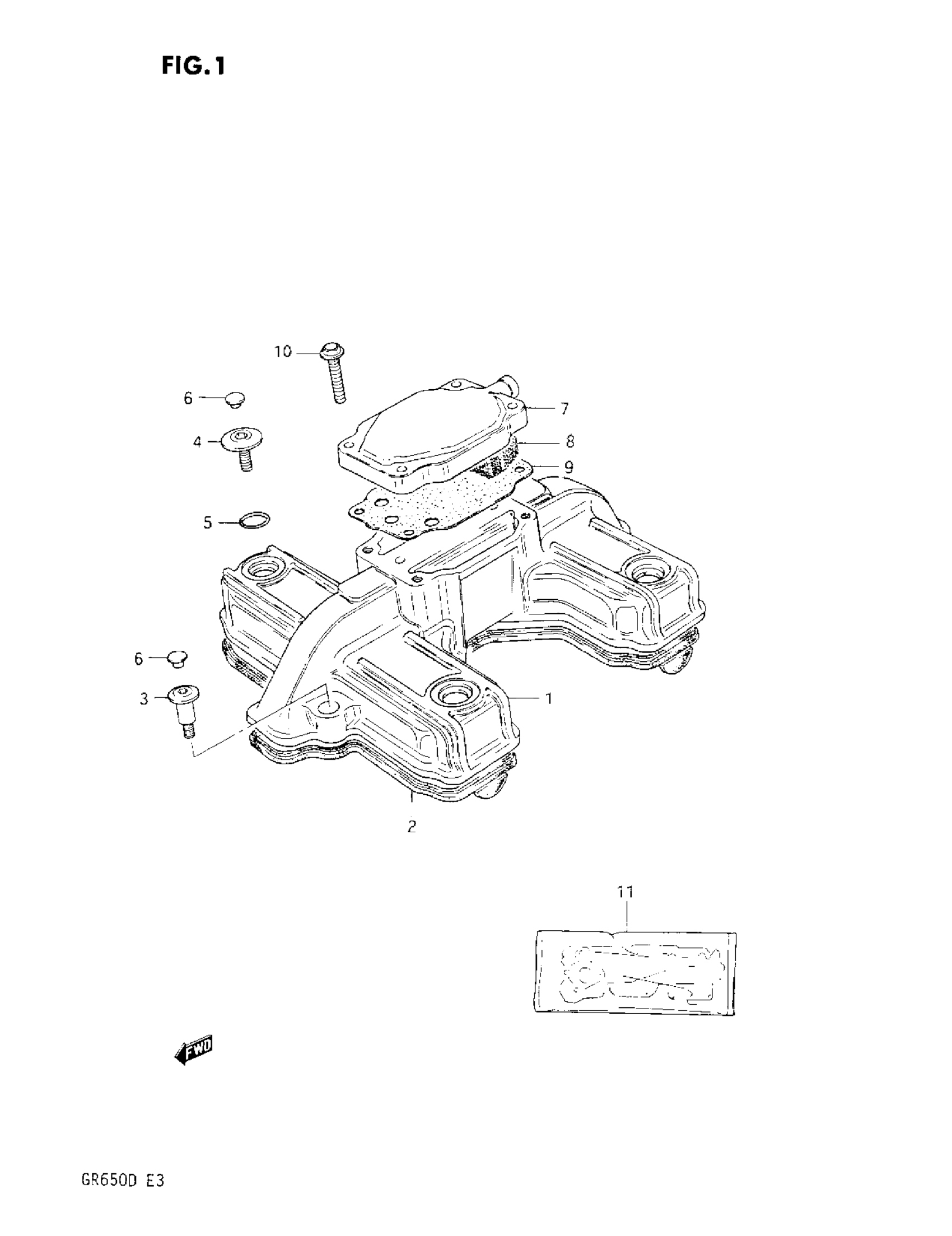

Suzuki GR650 (1983) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD

11171-15502

Unavailable

2

GASKET, CYLINDER HEAD COVER This part replaces 11173-15500.

11173-01D00

$31.80

3

BOLT

09106-07002

Unavailable

4

BOLT

09106-07001

Unavailable

5

O-RING

09280-15006

$2.80

6

CAP This part replaces 09250-06008.

09250-06016

$1.94

7

COVER, BREATHER

11176-33201

Unavailable

8

SEPARATOR, OIL BREATHER This part replaces 11186-15500.

11186-15501

$9.55

9

GASKET, BREATHER COVER This part replaces 11177-15510.

11177-15510-H17

$3.83

10

BOLT This part replaces 01517-06258.

01550-06257

$2.31

11

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-15840.

11400-15849

Unavailable
