1983 Suzuki GR650 Cam Shaft-Valve Diagram

← All diagrams

Find the part on the Cam Shaft-Valve diagram for your 1983 Suzuki GR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

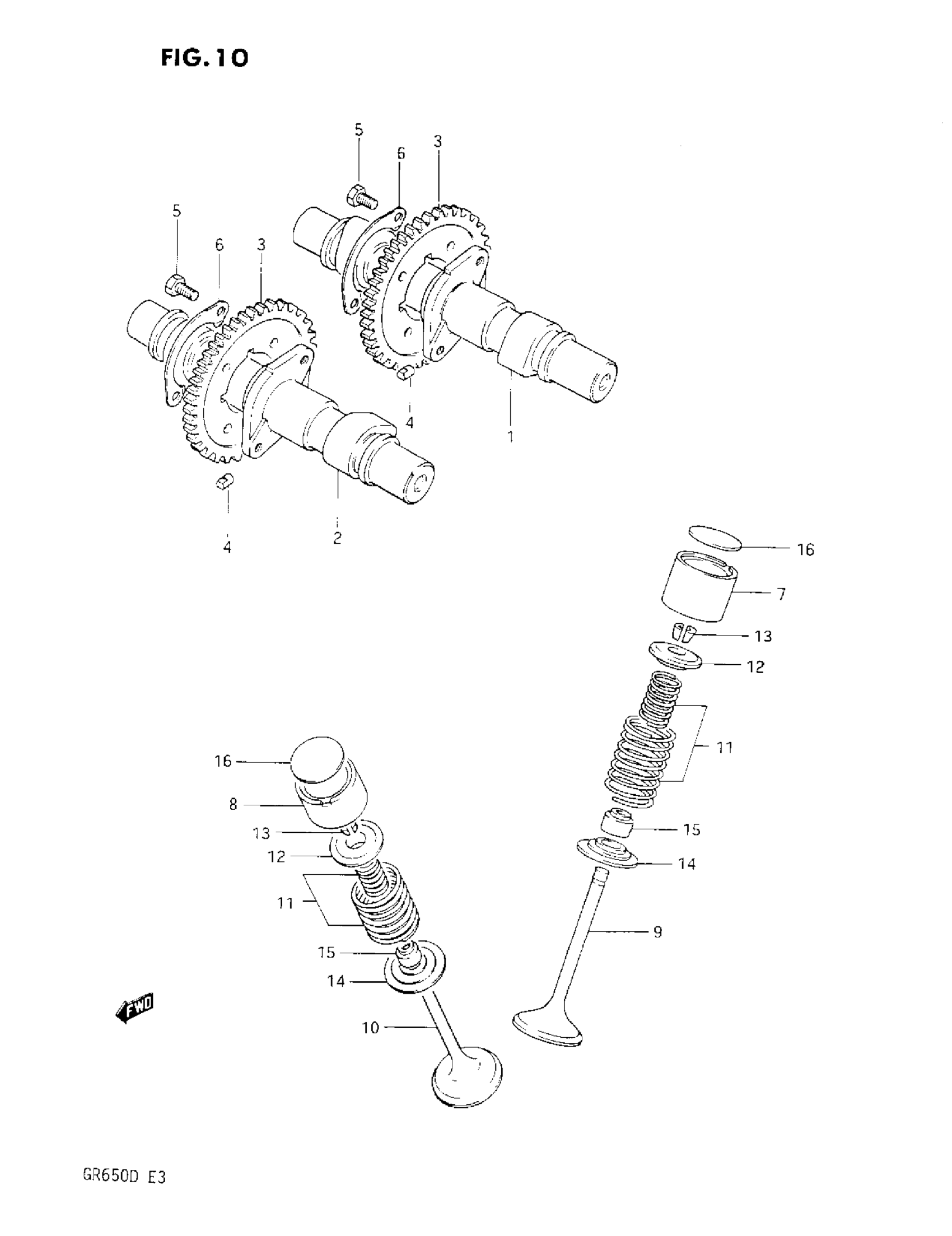

1983 Suzuki GR650 Cam Shaft-Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT, INTAKE

12711-15502

1
Out of stock

2

CAM SHAFT, EXHAUST

12721-15502

1
Out of stock

3

SPROCKET

12741-15501

2
Out of stock

4

PIN

12748-44000

2
Out of stock

5

BOLT

09111-06027

4
Out of stock

6

WASHER This part replaces 12747-44000.

12747-44001

2
Out of stock

7

TAPPET, INTAKE

12891-45001

2
Out of stock

8

TAPPET, INTAKE This part replaces 12891-15500.

12891-15501

2
Out of stock

9

VALVE, INTAKE

12911-15500

2
Out of stock

10

VALVE, EXHAUST

12912-15500

2
Out of stock

11

VALVE SPRING SET

12920-15500

4
Out of stock

12

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

4
Out of stock

13

COTTER, VALVE

12932-45010

8
Out of stock

14

SEAT, SPRING

12933-45001

4
Out of stock

15

OIL SEAL

09289-07002

4
Out of stock

16

SHIM SET | NOT SHOWN This part replaces 12800-45810.

12800-45811

1
Out of stock

16

CASE, TAPPET SHIM | NOT SHOWN This part replaces 99000-69480.

99000-69521

1
Out of stock

16

SHIM, TAPPET (T:2.15) | 0-4, UN This part replaces 12892-45000.

12892-45000-215

1
Out of stock

16

SHIM, TAPPET (T:2.20) | 0-4, UN This part replaces 12892-45001.

12892-45000-220

1
Out of stock

16

SHIM, TAPPET (T:2.25) | 0-4, UN This part replaces 12892-45002.

12892-45000-225

1
Out of stock

16

SHIM, TAPPET (T:2.30) | 0-4, UN This part replaces 12892-45003.

12892-45000-230

1
Out of stock

16

SHIM, TAPPET (T:2.35) | 0-4, UN This part replaces 12892-45004.

12892-45000-235

1
Out of stock

16

SHIM, TAPPET (T:2.40) | 0-4, UN This part replaces 12892-45005.

12892-45000-240

1
Out of stock

16

SHIM, TAPPET (T:2.45) | 0-4, UN This part replaces 12892-45006.

12892-45000-245

1
Out of stock

16

SHIM, TAPPET (T:2.50) | 0-4, UN This part replaces 12892-45007.

12892-45000-250

1
Out of stock

16

SHIM, TAPPET (T:2.55) | 0-4, UN This part replaces 12892-45008.

12892-45000-255

1
Out of stock

16

SHIM, TAPPET (T:2.60) | 0-4, UN This part replaces 12892-45009.

12892-45000-260

1
Out of stock

16

SHIM, TAPPET (T:2.65) | 0-4, UN This part replaces 12892-45010.

12892-45000-265

1
Out of stock

16

SHIM, TAPPET (T:2.70) | 0-4, UN This part replaces 12892-45011.

12892-45000-270

1
Out of stock

16

SHIM, TAPPET (T:2.75) | 0-4, UN This part replaces 12892-45012.

12892-45000-275

1
Out of stock

16

SHIM, TAPPET (T:2.80) | 0-4, UN This part replaces 12892-45013.

12892-45000-280

1
Out of stock

16

SHIM, TAPPET (T:2.85) | 0-4, UN This part replaces 12892-45014.

12892-45000-285

1
Out of stock

16

SHIM, TAPPET (T:2.90) | 0-4, UN This part replaces 12892-45015.

12892-45000-290

1
Out of stock

16

SHIM, TAPPET (T:2.95) | 0-4, UN This part replaces 12892-45016.

12892-45000-295

1
Out of stock

16

SHIM, TAPPET (T:3.00) | 0-4, UN This part replaces 12892-45017.

12892-45000-300

1
Out of stock

16

SHIM, TAPPET (T:3.05) | 0-4, UN This part replaces 12892-45018.

12892-45000-305

1
Out of stock

16

SHIM, TAPPET (T:3.10) | 0-4, UN This part replaces 12892-45019.

12892-45000-310

1
Out of stock
