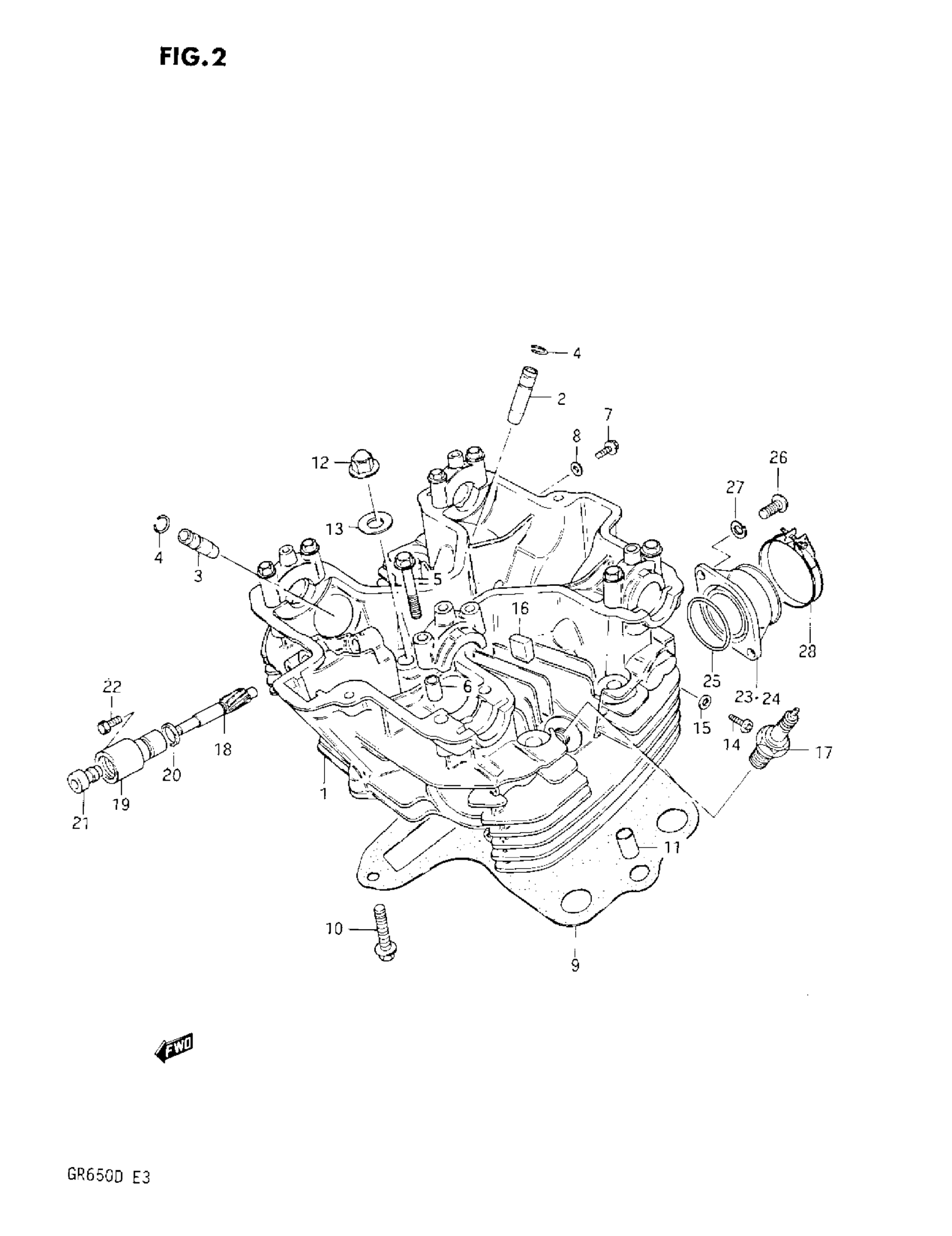

Suzuki GR650 (1983) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD SET

11100-15501

Unavailable

2

GUIDE, INTAKE VALVE

11115-45740

$40.73

3

GUIDE, EXHAUST VALVE

11116-45740

Unavailable

4

RING, VALVE GUIDE

09381-10003

$2.47

5

BOLT

09103-06071

$1.91

6

PIN

09206-08001

$1.78

7

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

8

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

9

GASKET CYLINDER This part replaces 11141-15501.

11141-15502

Unavailable

10

BOLT This part replaces 01517-06255.

01550-0625A

$1.97

11

PIN

04211-11189

$1.78

12

NUT

09159-10026

$6.20

13

GASKET This part replaces 09168-10029.

09168-10030

Unavailable

14

SCREW This part replaces 02112-05085.

02112-0508A

$1.49

15

GASKET

09168-05010

$1.71

16

RUBBER PAD

11151-39300

Unavailable

17

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

17

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

18

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

$48.23

19

SLEEVE This part replaces 26441-15500.

26441-49000

$30.58

20

SEAL BAND

26451-45000

$5.05

21

OIL SEAL

09289-05002

$8.43

22

SCREW

09128-05101

$1.49

23

PIPE, INTAKE RH

13110-15500

Unavailable

24

PIPE, INTAKE LH

13120-15500

Unavailable

25

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

26

SCREW This part replaces 02112-06208.

02112-06207

$1.78

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

CLAMP

09402-52306

$4.91
