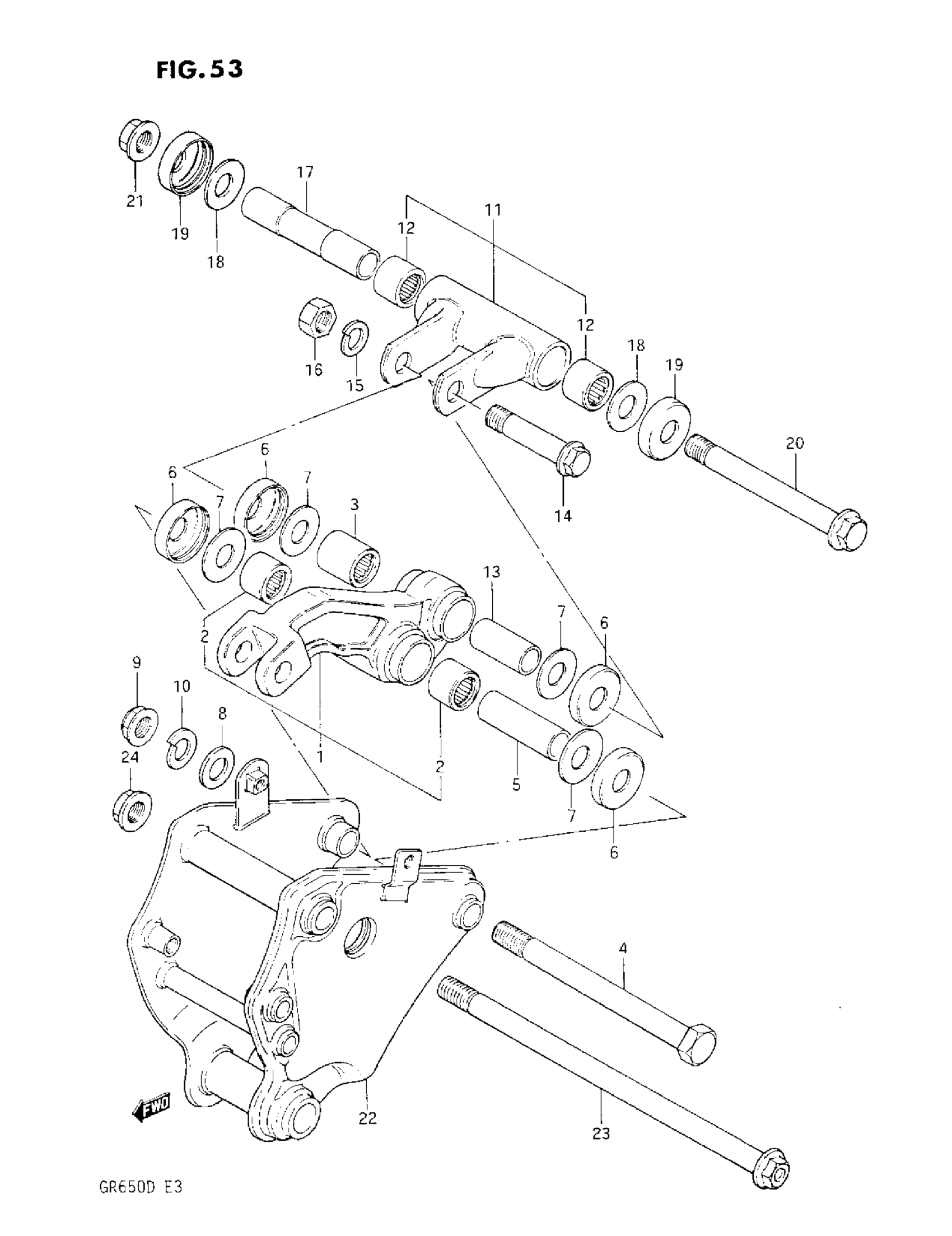

Suzuki GR650 (1983) CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, CUSHION

62600-15812

Unavailable

2

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

3

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

4

SHAFT

62621-15500

Unavailable

5

SPACER

62623-15500

Unavailable

6

COVER This part replaces 61262-41500.

61262-41501

Unavailable

7

THRUST WASHER

08211-12281

$2.53

8

WASHER This part replaces 08322-11128.

08322-01127

$1.84

9

NUT This part replaces 08319-31128.

08319-3112A

$3.76

10

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

11

NO DESCRIPTION AVAILABLE This part replaces 62600-15822.

62600-15823

Unavailable

12

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

$19.48

13

SPACER, UPPER

62646-15500

Unavailable

14

BOLT, LOWER This part replaces 62648-15500.

62668-42A02

$10.67

15

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

16

NUT, FIXED DRIVE FACE This part replaces 08310-12128.

09140-12039

$3.05

17

SPACER, LOWER

62656-15500

Unavailable

18

THRUST WASHER

08211-12281

$2.53

19

COVER This part replaces 61262-41500.

61262-41501

Unavailable

20

BOLT

62657-15500

Unavailable

21

NUT This part replaces 08316-16128.

08316-10127

$2.50

22

BRACKET, SHOCK ABSORBER

62410-15501

Unavailable

23

BOLT, BRACKET

62413-15500

Unavailable

24

NUT This part replaces 08316-16128.

08316-10127

$2.50
