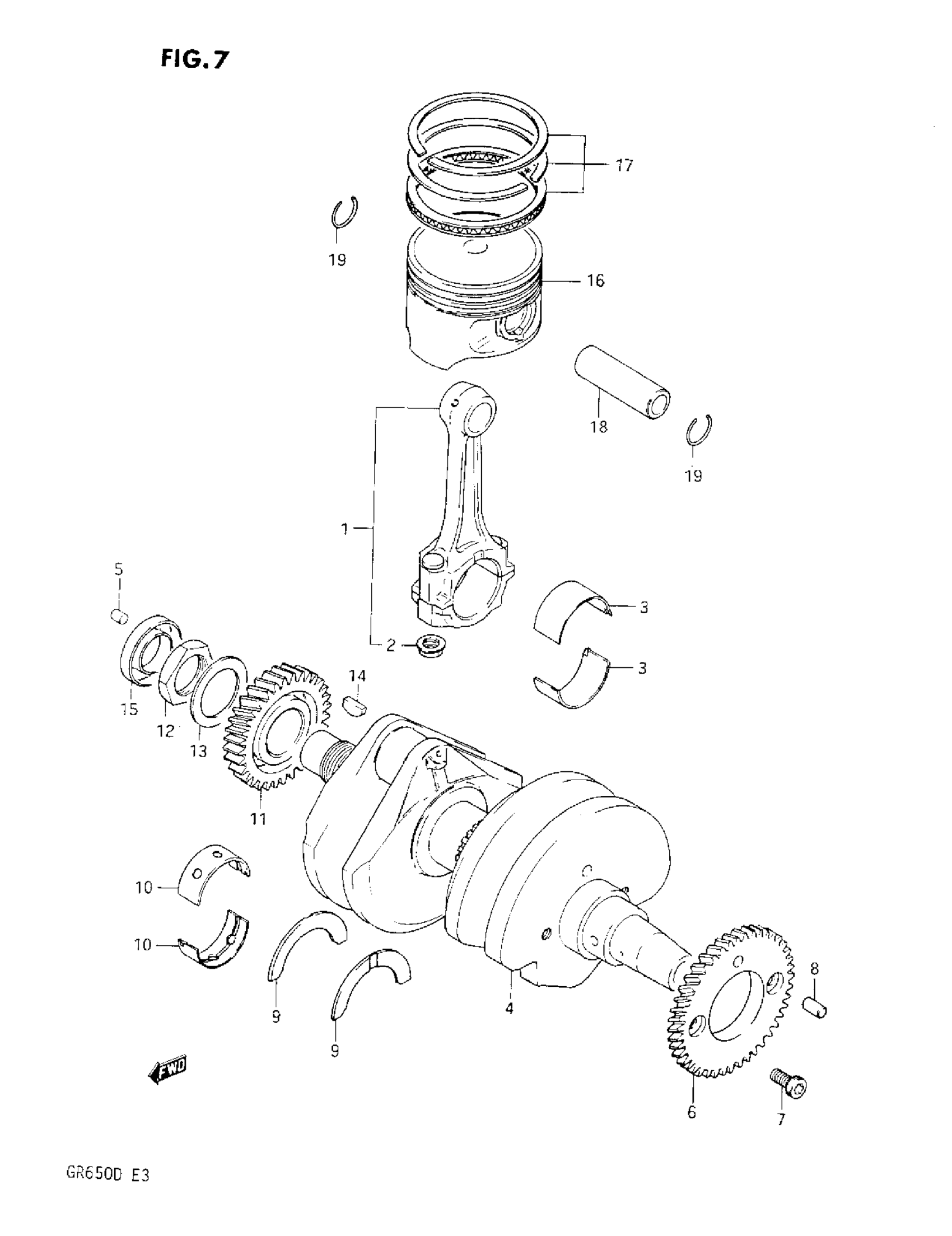

Suzuki GR650 (1983) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 12160-15502.

12160-15503

Unavailable

2

NUT

09159-09001

$4.68

3

BEARING, CRANK PIN (GREEN)

12164-15510-010

Unavailable

3

BEARING, CRANK PIN (BLACK)

12164-15510-020

Unavailable

3

BEARING, CRANK PIN (BROWN)

12164-15510-030

Unavailable

3

BEARING, CRANK PIN (YELLOW)

12164-15510-040

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 12220-15502.

12220-15503

Unavailable

5

PIN

09202-03016

$1.78

6

NO DESCRIPTION AVAILABLE This part replaces 12661-15502.

12661-15503

Unavailable

7

BOLT This part replaces 09106-06030.

07130-0616B

$2.39

8

PIN

04221-06129

$1.72

9

BEARING, CRANK THRUST (RED)

12228-31301

Unavailable

9

BEARING, CRANK THRUST (BLACK)

12228-31302

Unavailable

9

BEARING, CRANK THRUST (BLUE)

12228-31303

Unavailable

9

BEARING, CRANK THRUST (GREEN)

12228-31304

Unavailable

9

BEARING, CRANK THRUST (YELLOW)

12228-31305

Unavailable

9

BEARING, CRANK THRUST (WHITE)

12228-31306

Unavailable

9

BEARING, CRANK THRUST (BROWN)

12228-31307

Unavailable

9

BEARING, CRANK THRUST (PINK)

12228-31308

Unavailable

10

BEARING, CRANKSHAFT (GREEN)

12229-15510-010

Unavailable

10

BEARING, CRANKSHAFT (BLACK)

12229-15510-020

Unavailable

10

BEARING, CRANKSHAFT (BROWN)

12229-15510-030

Unavailable

10

BEARING, CRANKSHAFT (YELLOW)

12229-15510-040

Unavailable

11

GEAR, PRIMARY DRIVE (NT:32)

21111-15501

Unavailable

12

NUT

09140-24007

$3.89

13

WASHER

09164-25001

Unavailable

14

KEY

08341-31059

$2.48

15

OIL SEAL, RH

09283-22015

$9.72

16

PISTON (STD)

12111-15504

Unavailable

16

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-15504-050.

12103-15830-050

Unavailable

16

PISTON (OS:1.0) | OPT

12111-15504-100

Unavailable

17

RING SET PISTON This part replaces 12140-15510.

12140-15511

Unavailable

17

NO DESCRIPTION AVAILABLE | OPT This part replaces 12140-15510-050.

12140-15511-050

Unavailable

17

RING SET, PISTON (STD) | OPT This part replaces 12140-15510-100.

12140-05A01

Unavailable

18

PIN, PISTON This part replaces 12151-15500.

12151-15501

$17.37

19

CIRCLIP

09381-18002

$1.67
