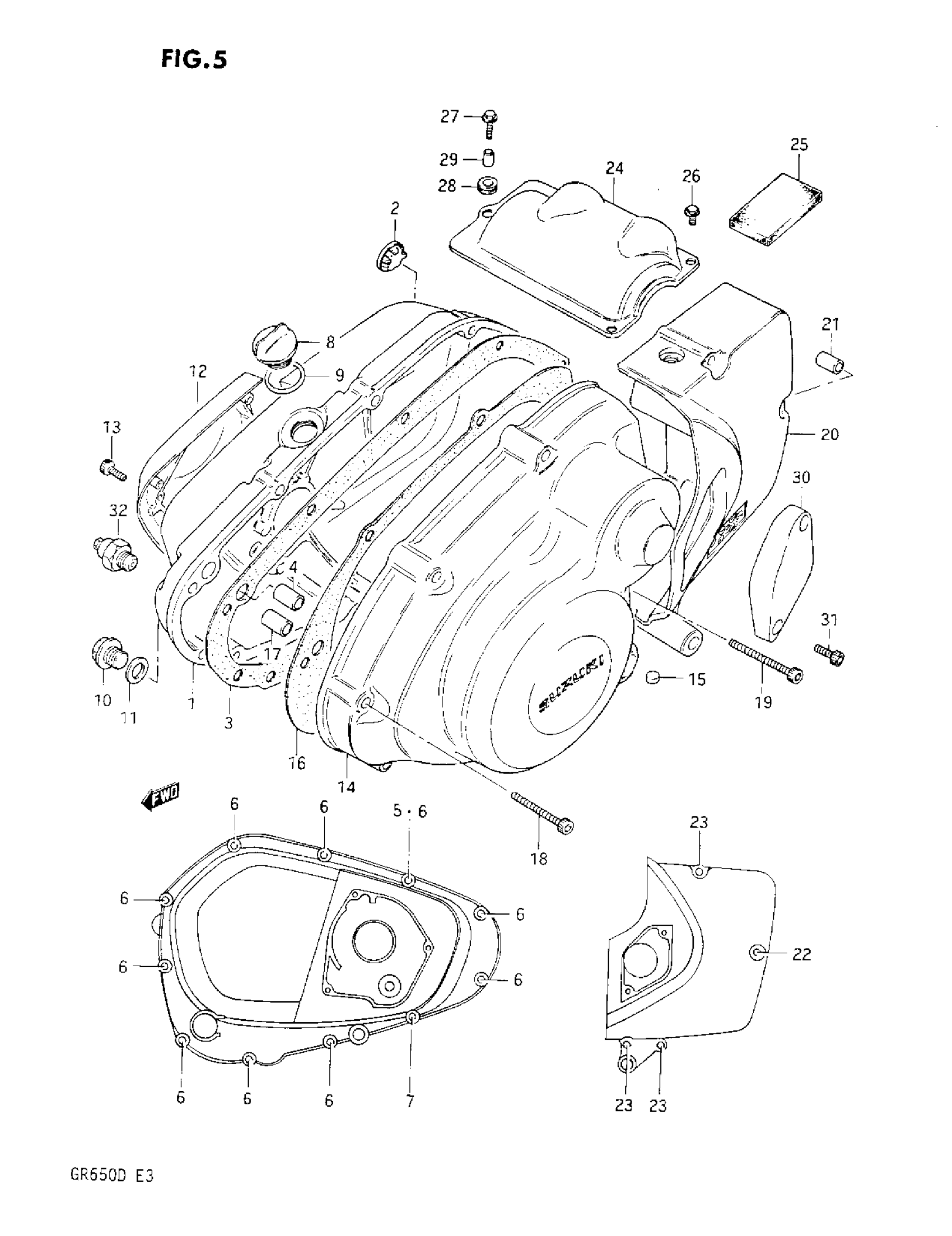

Suzuki GR650 (1983) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-15501

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET,CLUTCH C This part replaces 11482-15502.

11482-15502-H17

Unavailable

4

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

5

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

6

BOLT This part replaces 01547-06308.

01547-06307

$2.03

7

BOLT This part replaces 01547-06408.

01547-06407

$2.32

8

PLUG, OIL FILLER

09259-20007

$7.53

9

O-RING

09280-17003

$1.65

10

PLUG This part replaces 09247-14012.

09247-14026

$3.76

11

GASKET

09168-14004

$1.83

12

COVER, CONTACT BREAKER

11381-15500

Unavailable

13

BOLT This part replaces 07112-05167.

07130-05167

$3.15

14

COVER, GENERATOR

11350-15501

Unavailable

15

MAGNETO

11393-15500

Unavailable

16

GASKET,GEN COVE This part replaces 11483-15502.

11483-15503-H17

Unavailable

17

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

18

BOLT This part replaces 01547-06408.

01547-06407

$2.32

19

BOLT This part replaces 01547-06508.

01547-06507

$2.41

20

COVER, ENGINE SPROCKET

11361-15501

Unavailable

21

PIN

04211-09129

$1.65

22

BOLT This part replaces 01547-06658.

01547-06657

$2.75

23

BOLT This part replaces 01547-06508.

01547-06507

$2.41

24

COVER, STARTER MOTOR

11382-15501

Unavailable

25

DAMPER

11362-34200

Unavailable

26

BOLT, COVER This part replaces 01547-05085.

01547-0508B

$2.97

27

BOLT This part replaces 01544-05168.

01547-05167

$1.72

28

CUSHION

09320-08023

Unavailable

29

SPACER

09180-05020

Unavailable

30

CAP, CLUTCH RELEASE

11387-15500

Unavailable

31

BOLT This part replaces 07112-05167.

07130-05167

$3.15

32

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33200.

37820-33D11

$25.13
