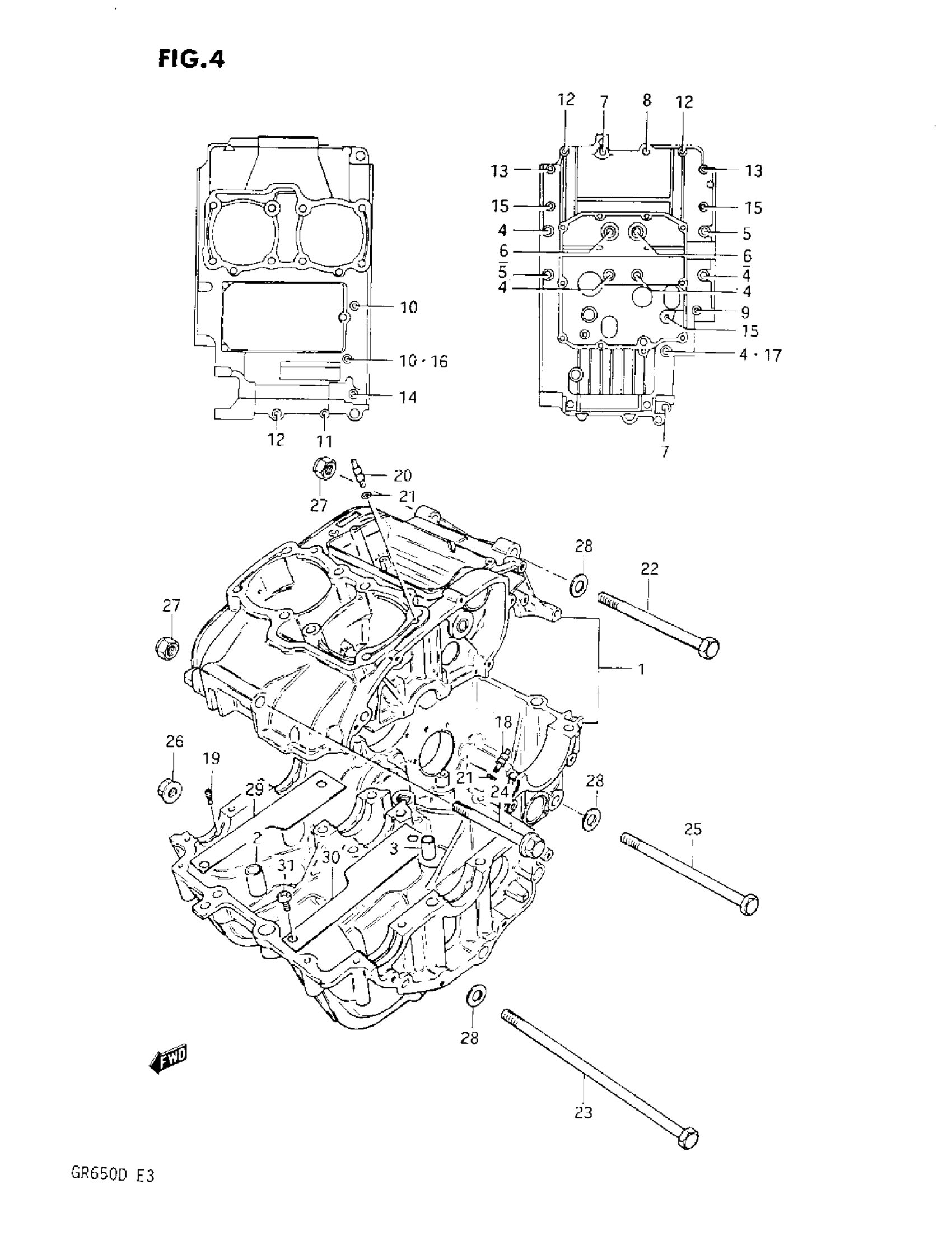

Suzuki GR650 (1983) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11300-15870.

11300-15872

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT (8X120) This part replaces 09103-08091.

09103-08109

$3.18

5

BOLT (8X125) This part replaces 09103-08094.

09103-08182

$5.72

6

BOLT This part replaces 09106-08015.

07130-0860B

Unavailable

7

BOLT This part replaces 01517-08505.

01550-0850B

$4.17

8

BOLT This part replaces 01517-08605.

01550-0860A

$4.17

9

BOLT (6X100)

09103-06060

$2.50

10

BOLT (6X100)

09103-06061

Unavailable

11

BOLT This part replaces 01517-06405.

01550-0640A

$2.42

12

BOLT This part replaces 01517-06505.

01550-0650A

$2.85

13

BOLT This part replaces 01517-06605.

01550-0660A

$3.05

14

BOLT This part replaces 01517-06705.

01550-0670B

$4.25

15

BOLT This part replaces 01517-06905.

01550-0690B

Unavailable

16

GASKET

09168-06018

$1.77

17

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

18

JET,T/M OIL GALLERY

09493-20014

$16.87

19

JET, OIL GALL. BAL. SHAFT

09493-28011

Unavailable

20

JET, OIL GALLERY CYLINDER

09493-28010

$16.57

21

O-RING

09280-04004

$1.91

22

BOLT (10x165) This part replaces 09100-10137.

09100-10078

$12.70

23

BOLT (10X200) This part replaces 09100-10138.

09103-10138

Unavailable

24

BOLT (10X100)

09103-10073

Unavailable

25

BOLT (10X150)

09100-10193

Unavailable

26

NUT This part replaces 08319-31105.

08319-3110A

$2.73

27

NUT This part replaces 09159-10039.

09159-10064

$10.08

28

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

29

PLATE, OIL SEPARATOR RH

11521-15500

Unavailable

30

PLATE, OIL SEPARATOR LH

11522-15500

Unavailable

31

SCREW This part replaces 02112-06108.

02112-06107

$1.49
