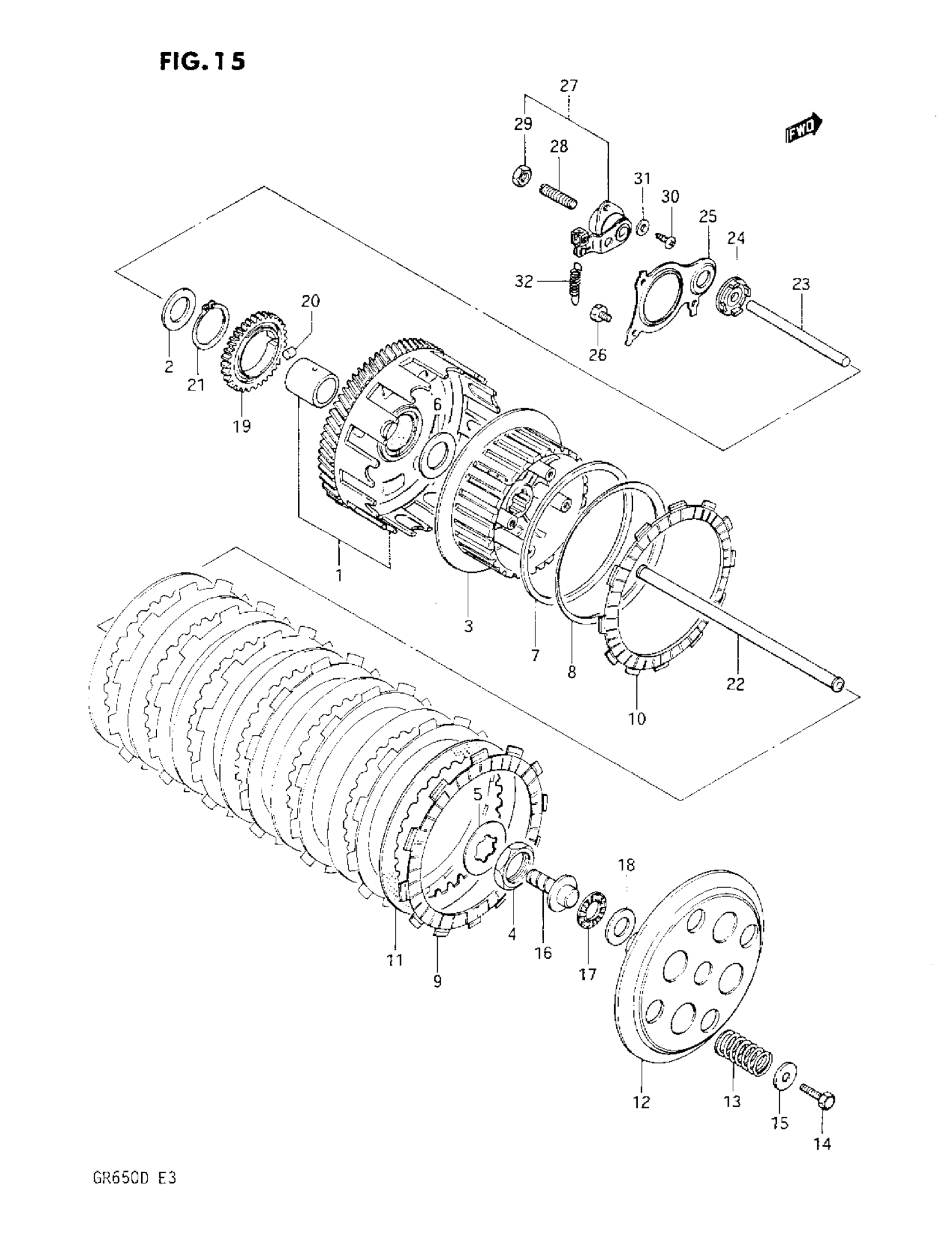

Suzuki GR650 (1983) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:72)

21200-15830

Unavailable

2

WASHER

09160-25045

Unavailable

3

HUB, SLEEVE

21410-15501

Unavailable

4

NUT

09140-22006

Unavailable

5

WASHER

09167-22005

$2.11

6

WASHER

09160-22028

Unavailable

7

SEAT, WAVE WASHER

21471-37400

$9.78

8

WAVE WASHER

09164-00004

$11.35

9

PLATE, DRIVE N0.1

21441-37400

$18.13

10

PLATE, CLUTCH DRIVE NO.2 This part replaces 21442-37400.

21442-37401

$18.67

11

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-15500.

21451-14A00

$9.52

12

DISK, CLUTCH PRESSURE This part replaces 21462-38200.

21462-27A00

$57.67

13

SPRING This part replaces 09440-20010.

09440-20013

$3.57

14

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

15

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

16

PIECE, PUSH

23121-44100

$25.75

17

BEARING

09263-15003

$8.29

18

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

19

GEAR, OIL PUMP DRIVE (NT:38)

16321-15500

Unavailable

20

PIN

09261-06002

$1.53

21

CIRCLIP

08331-31459

Unavailable

22

ROD, CLUTCH PUSH This part replaces 23110-31300.

23110-32C50

Unavailable

23

ROD,CLUTCH PUSH,L

23111-15501

$13.30

24

OIL SEAL

09285-06011

$8.24

25

HOLDER, OIL SEAL

23117-15501

Unavailable

26

BOLT This part replaces 01107-06128.

01500-06127

$1.97

27

SCREW ASS'Y, RELEASE

23200-33400

Unavailable

28

SCREW This part replaces 09134-06001.

09134-06010

$3.12

29

.NUT This part replaces 08310-22068.

08310-00067

$2.13

30

SCREW This part replaces 03111-06168.

03111-0616B

$1.93

31

WASHER This part replaces 08322-21068.

08322-01067

$2.13

32

SPRING

09443-08001

$2.92
