Partiron

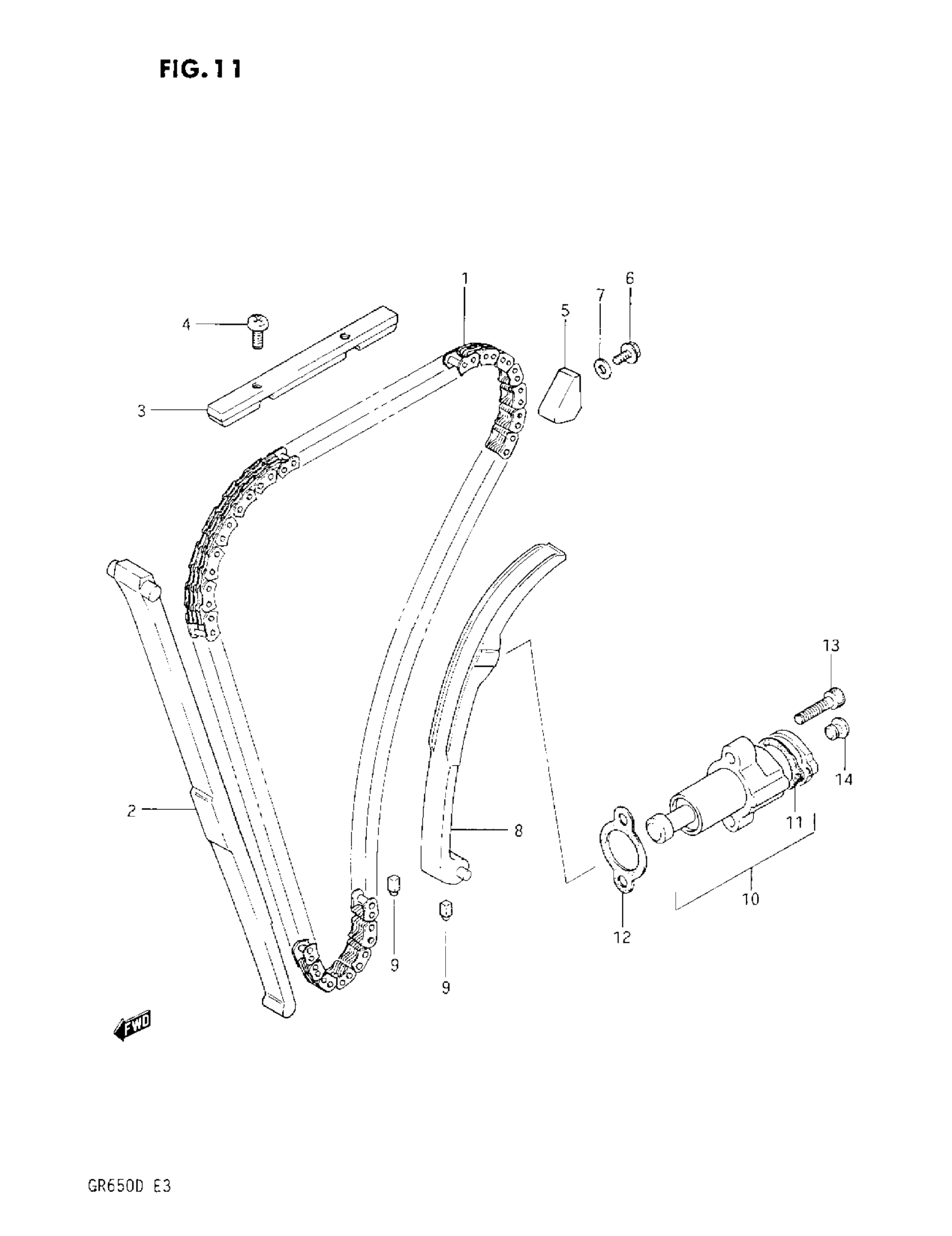

Suzuki GR650 (1983) CAM CRAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE (120L)

12760-15500

Unavailable

2

GUIDE, CAM CHAIN NO.1

12771-15500

Unavailable

3

GUIDE,CA CHAIN This part replaces 12782-31300.

12782-38400

Unavailable

4

SCREW This part replaces 02112-05108.

02112-05107

$1.49

5

GUIDE, CAM CHAIN NO.3

12791-15500

Unavailable

6

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

7

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

8

TENSIONER, CAM CHAIN

12810-15500

Unavailable

9

CUSHION

12814-44101

$6.60

10

ADJUSTER ASSY, TENSIONER This part replaces 12830-15500.

12830-33C10

$140.97

11

GASKET This part replaces 12838-38200.

12838-38200-H17

$3.17

12

.GASKET,TENSIONER ADJUSTER This part replaces 12837-38200.

12837-24A10

$3.25

13

BOLT This part replaces 09106-06029.

07130-0625B

$3.04

14

PLUG

12839-38200

$2.08
