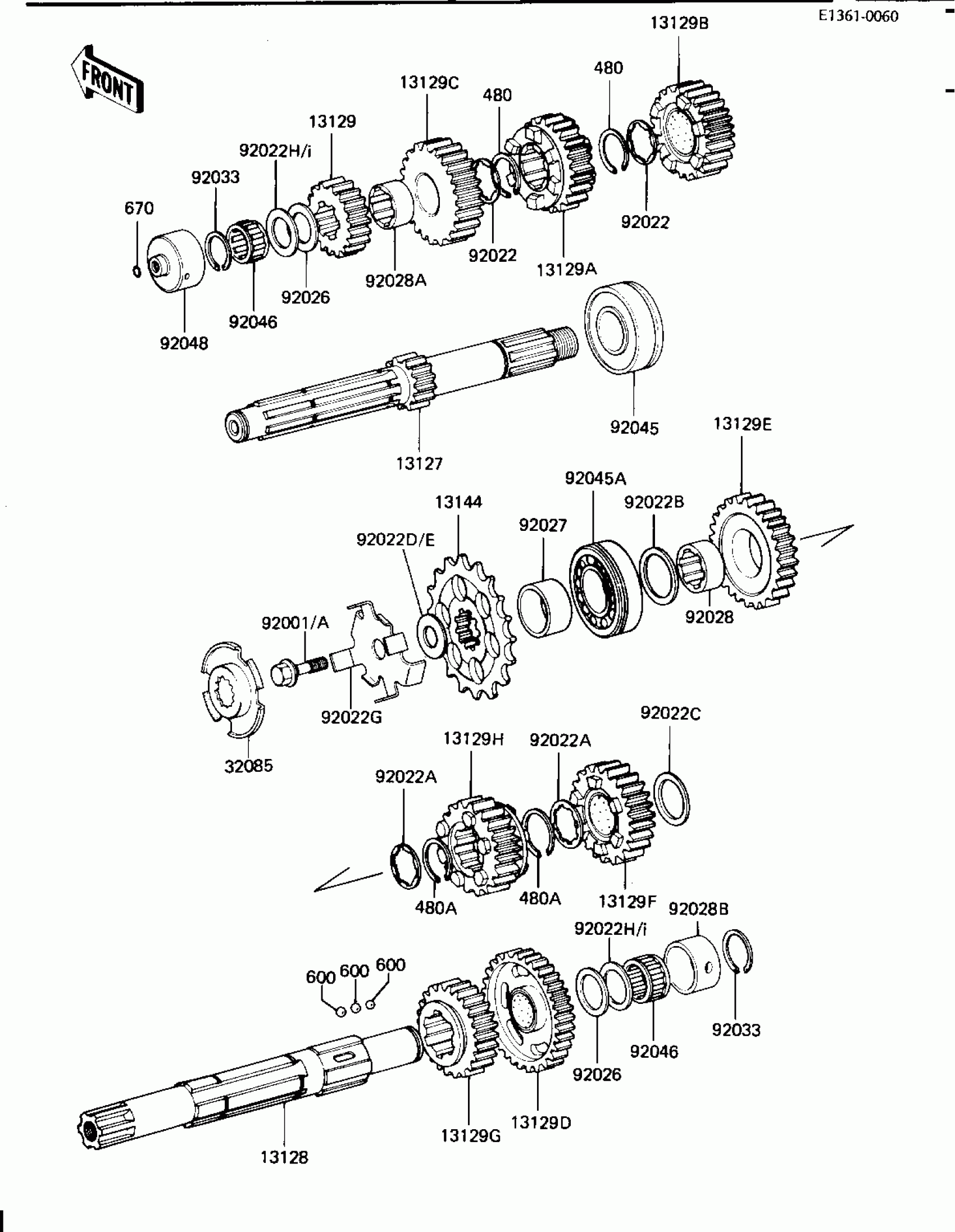

Kawasaki GPz TRANSMISSION Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,14T

13127-1034

$321.78

13128

SHAFT-TRANSMISSION OU

13128-1030

Unavailable

13129

GEAR,INPUT 2ND,18T

13129-1235

$176.64

13129A

GEAR,INPUT 3RD,21T

13129-1236

Unavailable

13129B

GEAR,INPUT 4TH,23T

13129-1237

Unavailable

13129C

GEAR,INPUT TOP,25T

13129-1238

Unavailable

13129D

GEAR,OUTPUT LOW,37T

13129-1239

$232.12

13129E

GEAR,OUTPUT 2ND,33T

13129-1240

$195.77

13129F

GEAR,OUTPUT 3RD,30T

13129-1241

Unavailable

13129G

GEAR,OUTPUT 4TH,27T

13129-1242

Unavailable

13129H

GEAR,OUTPUT TOP,26T

13129-1243

$215.10

13144

SPROCKET-OUTPUT,15T

13144-1042

$50.07

32085

STOPPER,ENGN SPROCKET

32085-1101

Unavailable

92001A

BOLT,FLANGED,10X39

92001-1479

$35.24

92022

WASHER,TOOTHED,26X35.5X1.5

92022-1077

$11.07

92022A

WASHER,TOOTHED,30X42X1.4

92022-1218

$5.86

92022B

WASHER,28.3X42X2.9

92022-1219

$15.04

92022C

WASHER,32.3X42X3

92022-1220

$13.38

92022E

WASHER,12.3X38X2.3

92022-1274

Unavailable

92022G

WASHER,SPRCKT STOPPER

92022-1351

Unavailable

92022H

WASHER,22.3X35X1.6

92022-212

$9.91

92022I

WASHER,22.3X35X1.2

92022-213

Unavailable

92026

SPACER,22X35.5X1.0

92026-1020

$5.23

92027

COLLAR,28X40X20.5

92027-1339

$26.41

92028

BUSHING,2ND GEAR

92028-1112

$43.41

92028A

BUSHING,TOP GEAR

92028-1124

$45.48

92028B

BUSHING,OUTPUT SHAFT

92028-123

$54.72

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92045

BEARING-BALL,5305NSH2

92045-1028

$132.72

92045A

BEARING-BALL,63/28NC3

92045-1034

$59.76

92046

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

92048

RACE,DRIVE SHAFT BEARING

92048-1012

$50.52

480

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

480A

CIRCLIP-TYPE-C,32MM

480J3200

$1.77

600

BALL-STEEL,3/16

600A0600

$1.07

670

O RING,8MM

670B1508

$1.29
