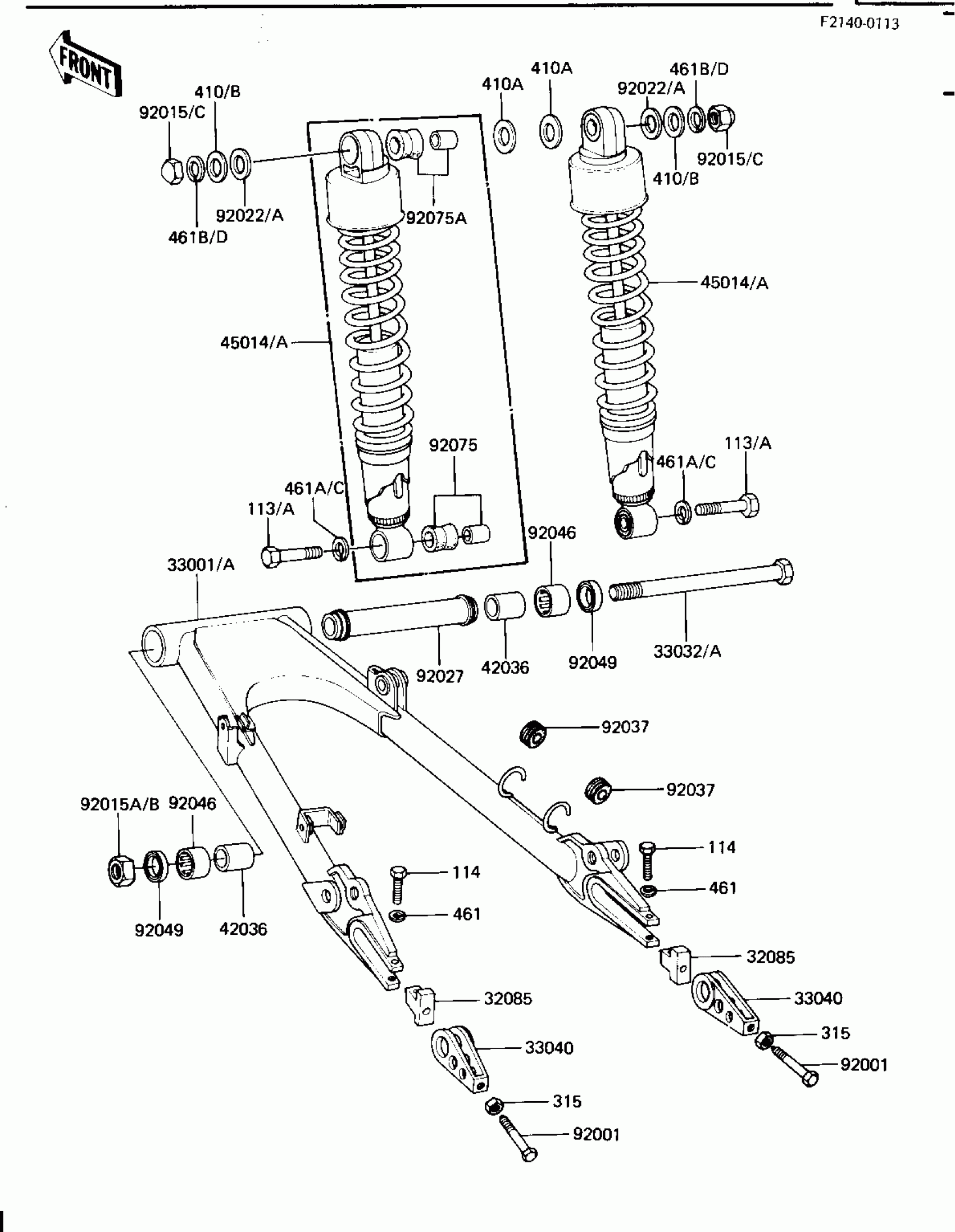

Kawasaki GPz SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

32085

STOPPER,CHAIN ADJUSTER

33044-001

$40.02

33001A

ARM-COMP-SWING,BLACK

33001-1217

$307.39

33032A

SHAFT-SWING ARM,BLACK

33032-1027

$60.68

33040

ADJUSTER-CHAIN

33040-066

$30.91

42036

SLEEVE,SWING ARM

42036-1040

$28.97

45014A

SHOCKABSORBER,RR,BLAC

45014-1170-10

$190.52

92001

BOLT,10X50

92001-143

$19.74

92015

NUT,LOCK,CAP,12MM,BL

92015-1192

Unavailable

92015A

NUT,LOCK,16MM,BLACK

92015-1207

Unavailable

92022A

WASHER,12.4X28X2.3,B

92022-1303

Unavailable

92027

COLLAR,SWING ARM,L=15

92027-1301

Unavailable

92037

GROMMET,HOSE CLAMP

43064-007

$5.52

92046

BEARING-NEEDLE,BHTM2530-1

92046-1035

$26.30

92049

SEAL-OIL,MH25334

92049-1060

$8.86

92075

DAMPER,SHOCKABSORBER,LWR

45017-019

$19.66

92075A

DAMPER,SHOCKABSORBER

92075-1141

$14.90

113

BOLT-SMALL-FINE,10X3

112C1035

$3.58

114

BOLT,8X40

115G0840

$6.00

315

NUT-HEX-FINE,10MM

315B1000

$0.58

410A

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

410B

WASHER-PLAIN-SMALL,12MM,BLACK

410F1200

$4.58

461

WASHER SPRING 8MM

461F0800

$0.40

461C

WASHER-SPRING,10MM,BLACK

461K1000

$2.44

461D

WASHER-SPRING,12MM,BLACK

461K1200

Unavailable
