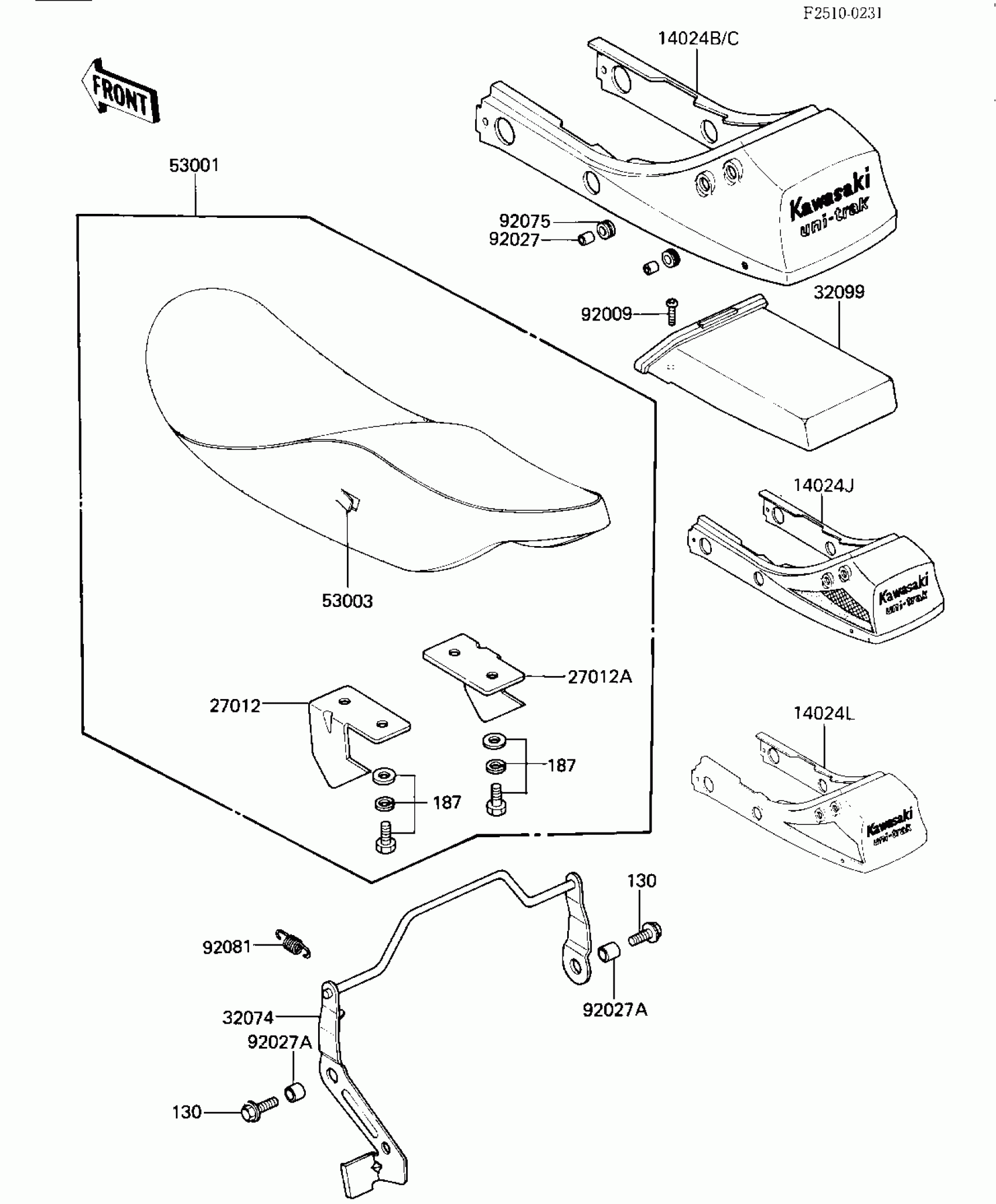

Kawasaki GPz SEAT (ZX550-A1/A2) Diagram

Description

Price

14024B

COVER,SEAT,F.RED

14025-5166-B1

Unavailable

14024C

COVER,SEAT,G.SILVER

14025-5166-F2

Unavailable

27012

HOOK,SEAT,LH

27012-1045

Unavailable

27012A

HOOK,SEAT,RH

27012-1046

$8.70

32074

BRACKET-LOCK,SEAT

32074-1051

$38.23

32099

CASE,TOOL

32099-1039

$45.33

53001

SEAT-ASSY,DUAL

53001-1364

Unavailable

53003

LEATHER,SEAT

53003-1106

Unavailable

92009

SCREW,TAPPING,6MM

92009-1261

$2.80

92027

COLLAR,6.8X10X8.5

92027-129

$5.00

92027A

COLLAR,8.2X13X6

92027-1565

$1.93

92075

DAMPER

92075-1028

$4.69

92081

SPRING,HOOK RETURN

92081-1466

$8.51

130

BOLT-FLANGED,8X16,BLACK

130C0816

Unavailable

187

BOLT 6X14

187B0614

$0.88
