Description

Price

14025D

COVER,SEAT,F.RED

14025-5136-B1

Unavailable

14025E

COVER,SEAT,G.SILVER

14025-5136-F2

Unavailable

27012

HOOK,SEAT,FR

27012-1042

$11.21

27012A

HOOK,SEAT,RR,LH

27012-1043

$7.10

27012B

HOOK,SEAT,RR,RH

27012-1044

$11.61

32099

CASE,MANUAL

32099-011

$16.66

32109

GRIP-FRAME,SEAT,LH

32109-1046

$180.15

32109A

GRIP-FRAME,SEAT,RH

32109-1047

$180.15

53001

SEAT-ASSY

53001-1287

$561.12

53003

LEATHER,SEAT

53003-1041

$383.23

92009

SCREW,TAPPING,5X8

92009-1043

$4.77

92009A

SCREW,SEAT COVER

92009-1186

$4.67

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92027

COLLAR,6.8X10X8.5

92027-129

$5.00

92071

GROMMET

92071-056

$4.26

92075

DAMPER

92075-1028

$4.69

92075A

DAMPER,SEAT,RR

92075-1276

Unavailable

120

BOLT-SOCKET,8X35

120S0835

$4.44

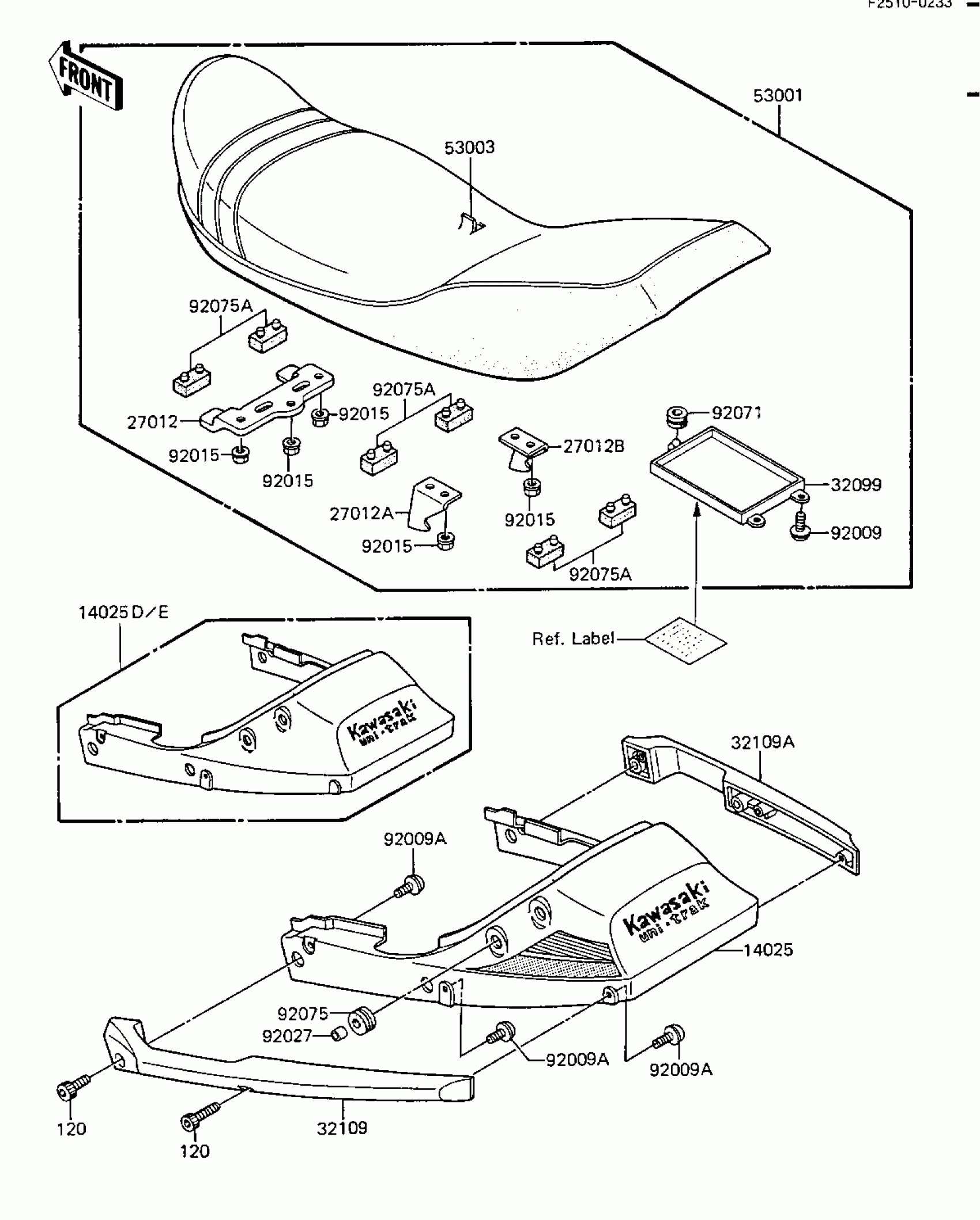

Kawasaki GPz SEAT/SEAT COVER Diagram

COVER,SEAT,F.RED

COVER,SEAT,G.SILVER

HOOK,SEAT,FR

HOOK,SEAT,RR,LH

HOOK,SEAT,RR,RH

CASE,MANUAL

GRIP-FRAME,SEAT,LH

GRIP-FRAME,SEAT,RH

SEAT-ASSY

LEATHER,SEAT

SCREW,TAPPING,5X8

SCREW,SEAT COVER

NUT,FLANGED,6MM

COLLAR,6.8X10X8.5

GROMMET

DAMPER

DAMPER,SEAT,RR

BOLT-SOCKET,8X35
