1982 Kawasaki GPZ Rear Wheel/hub/chain Diagram

← All diagrams

Find the part on the Rear Wheel/hub/chain diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

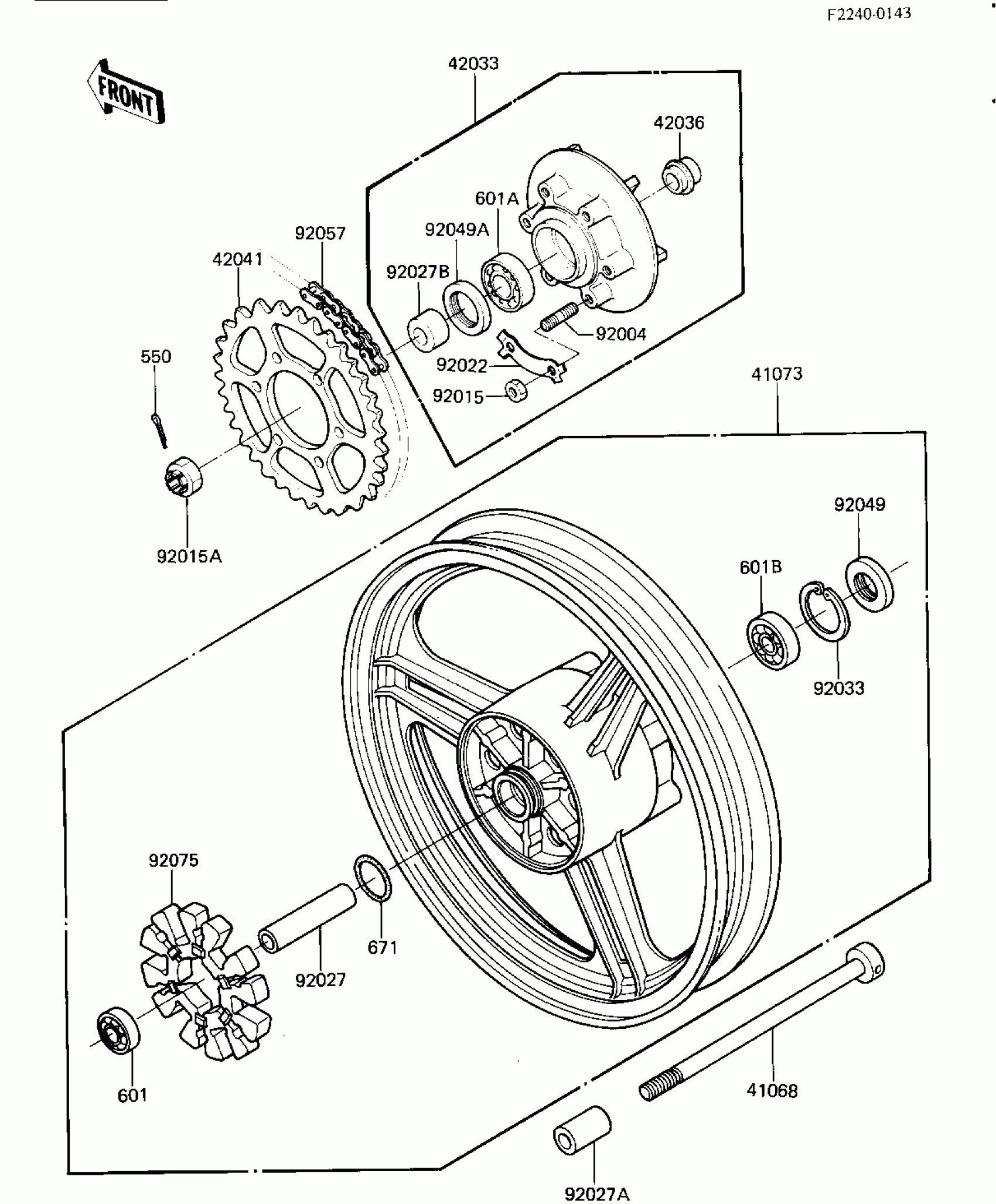

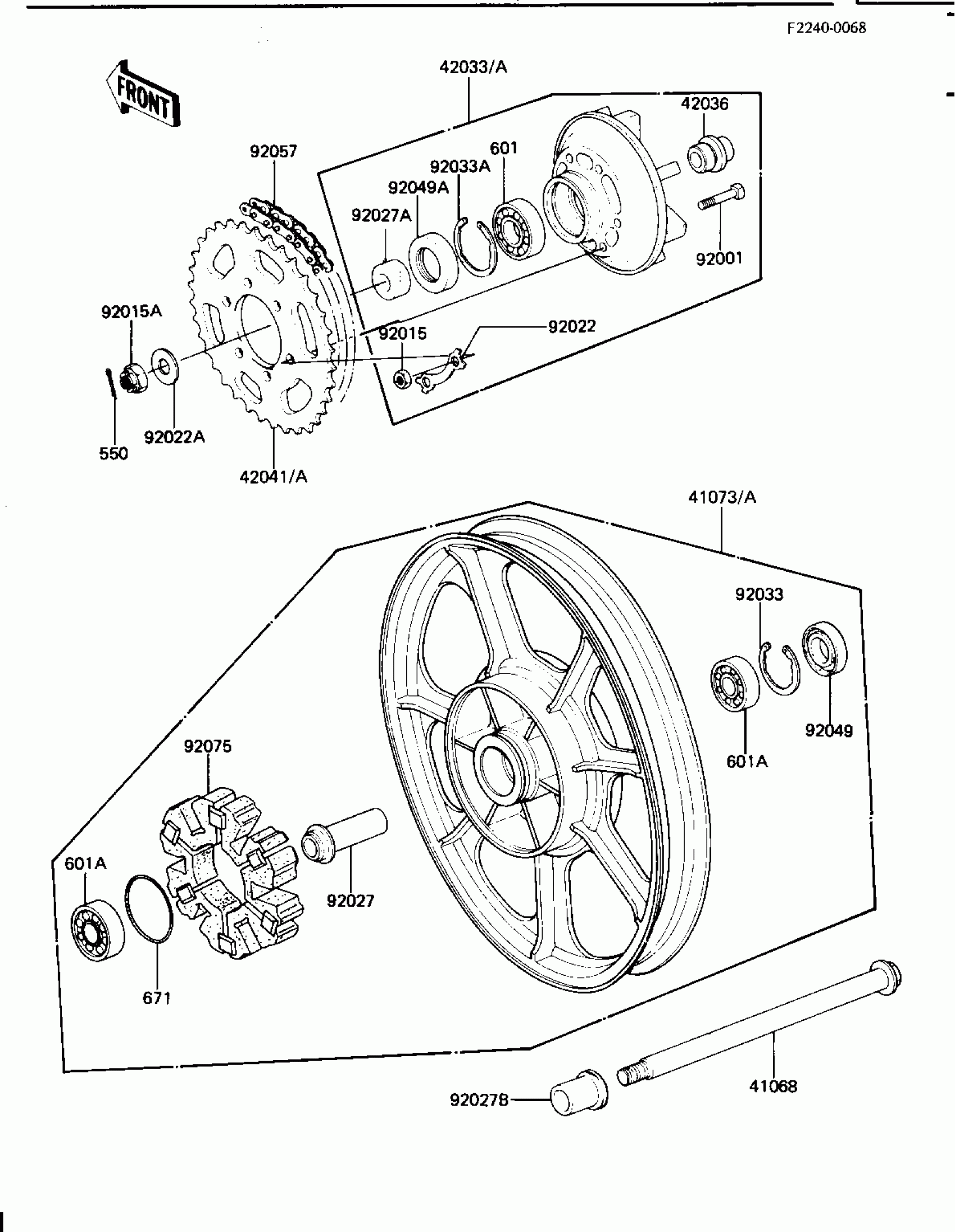

1982 Kawasaki GPZ Rear Wheel/hub/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR,L=300

41068-1087

1
Out of stock

41073A

WHEEL-ASSY,RR,SOLID,B

41073-1141-21

1
Out of stock

42033A

COUPLING-ASSY,F.BLACK

42033-1048

1
Out of stock

42036

SLEEVE,L=33

42036-1039

1
Out of stock

42041A

SPROCKET-HUB,42T,BLAC

42041-1106

1
Out of stock

92001

BOLT,10X41

92001-161

1
Out of stock

92015

NUT,10MM

42045-005

1
Out of stock

92015A

NUT,CASTLE,18MM

42045-018

1
Out of stock

92022

WASHER,LOCK

92022-1212

1
Out of stock

92022A

WASHER,20.3X34X4.5

92022-248

1
Out of stock

92027

COLLAR,L=89.5

92027-1286

1
Out of stock

92027A

COLLAR,20X40X16.5

92027-1287

1
Out of stock

92027B

COLLAR,L=31

92027-1288

1
Out of stock

92033

RING-SNAP,52MM

92033-1043

1
Out of stock

92033A

RING-SNAP,62MM

92033-1044

1
Out of stock

92049

SEAL-OIL,28X52X5

92049-1061

1
Out of stock

92049A

SEAL-OIL,AJN40627

92050-027

1
Out of stock

92057

DR CHAIN EK630 98L

92057-1152

1
Out of stock

92075

DAMPER,RR HUB SHOCK,"1000"

42014-033

1
Out of stock

550

PIN-COTTER,4.0X35

550D4035

1
Out of stock

601

BALL BEARING,#6206

601B6206

1
Out of stock

601A

BEARING-BALL,#6304ZZC3

601B6304ZZ

1
Out of stock

671

O RING,65MM

671B2565

1
Out of stock
