1982 Kawasaki GPZ Gear Change Drum & Forks Diagram

← All diagrams

Find the part on the Gear Change Drum & Forks diagram for your 1982 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

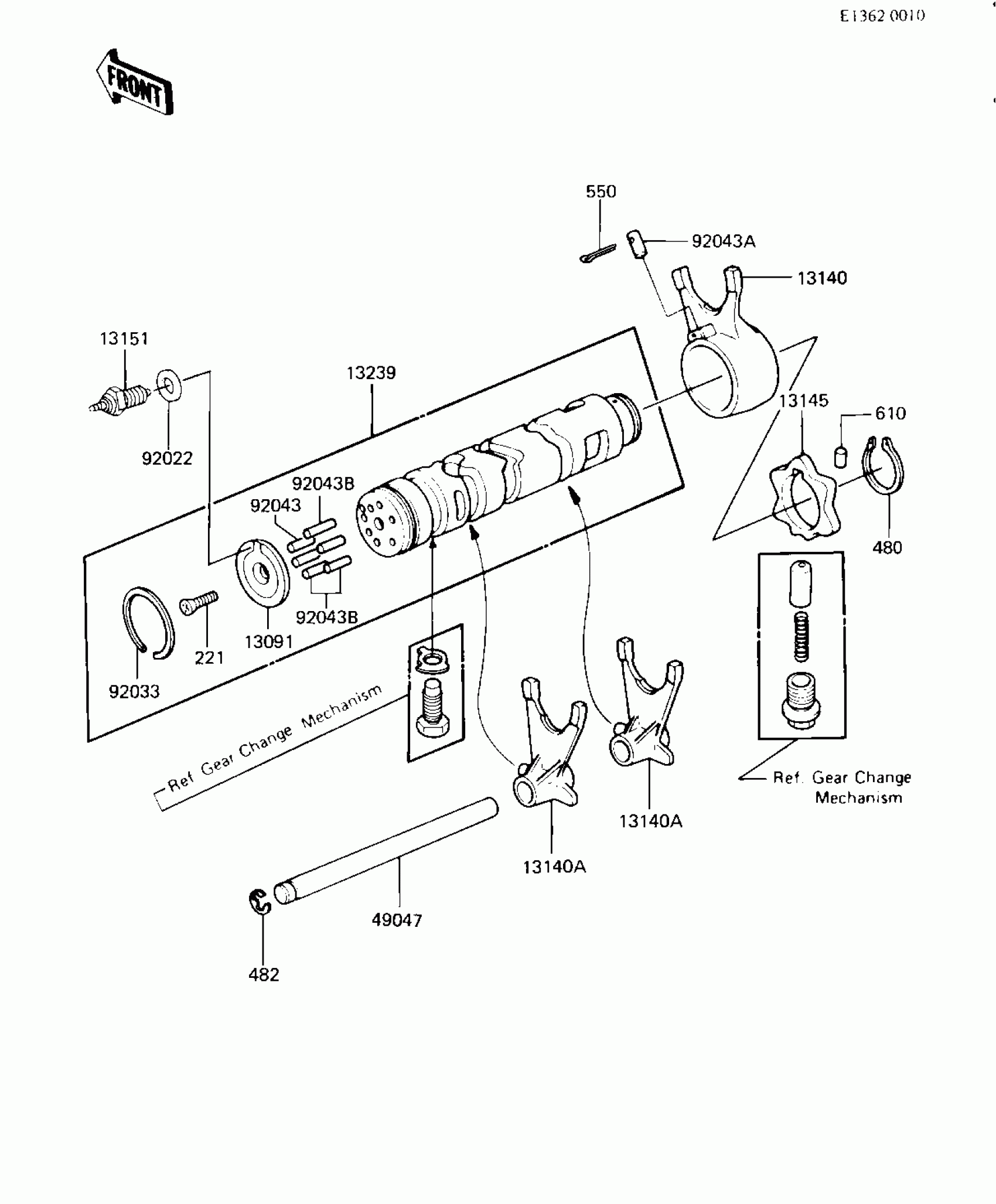

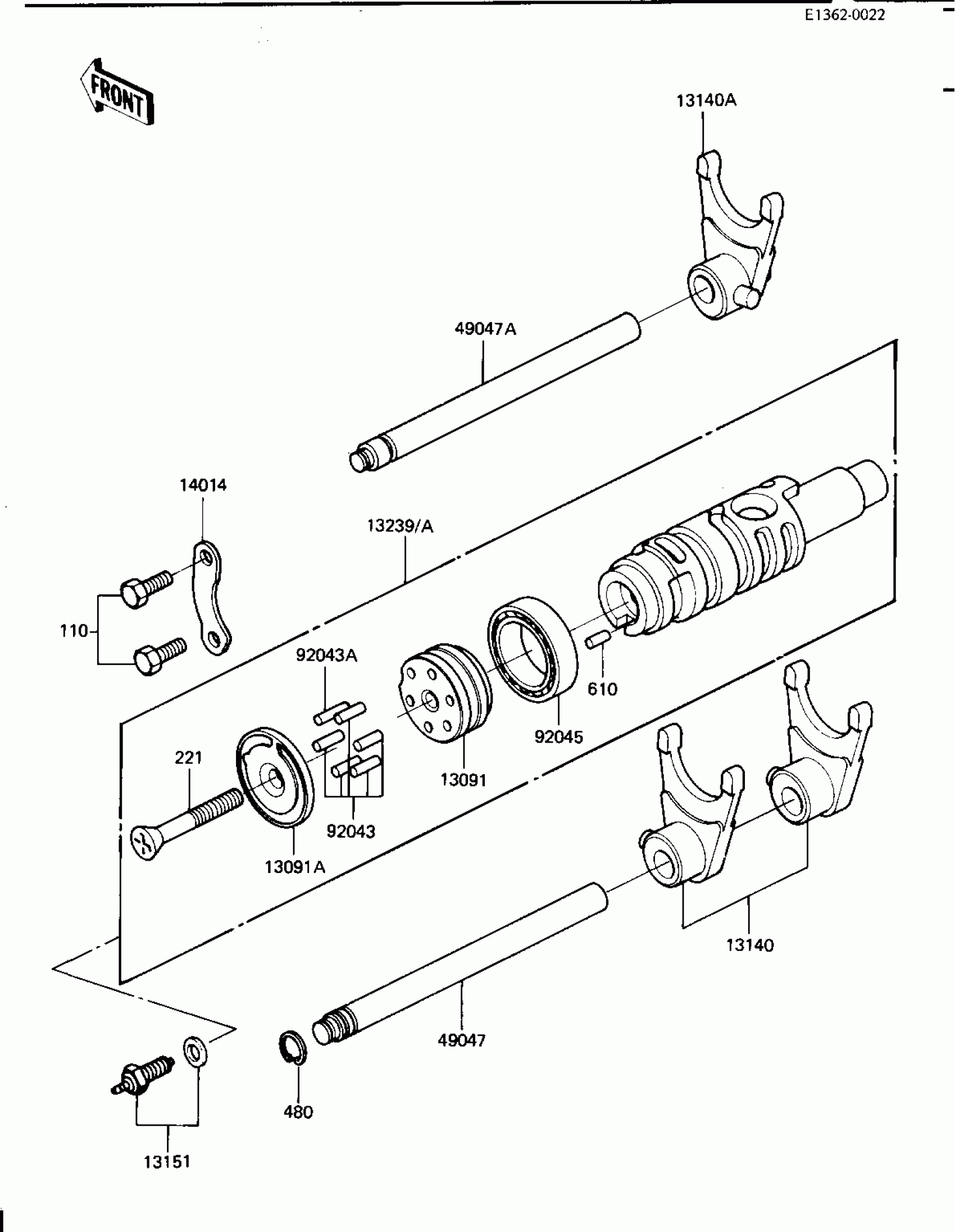

1982 Kawasaki GPZ Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM PIN

13091-1087

1
Out of stock

13091A

HOLDER,CHANGE DRUM PIN

13091-1088

1
Out of stock

13140

FORK-SHIFT

13140-1045

1
Out of stock

13140A

FORK-SHIFT

13140-1046

1
Out of stock

13151

SWITCH-COMP

13151-5003

1
Out of stock

13239A

DRUM-ASSY-CHANGE

13239-1107

1
Out of stock

14014

PLATE-POSITION

14014-1015

1
Out of stock

49047

ROD-SHIFT

49047-1019

1
Out of stock

49047A

ROD-SHIFT

49047-1014

1
Out of stock

92043

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92043A

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

92045

BEARING-BALL,6806

92045-1035

1
Out of stock

110

BOLT-UPSET,6X16

112G0616

1
Out of stock

221

SCREW-CSK-CROS,6X45

221B0645

1
Out of stock

480

CIRCLIP-TYPE-C,12MM

480J1200

1
Out of stock

610

ROLLER,4X10

610A0410

1
Out of stock
