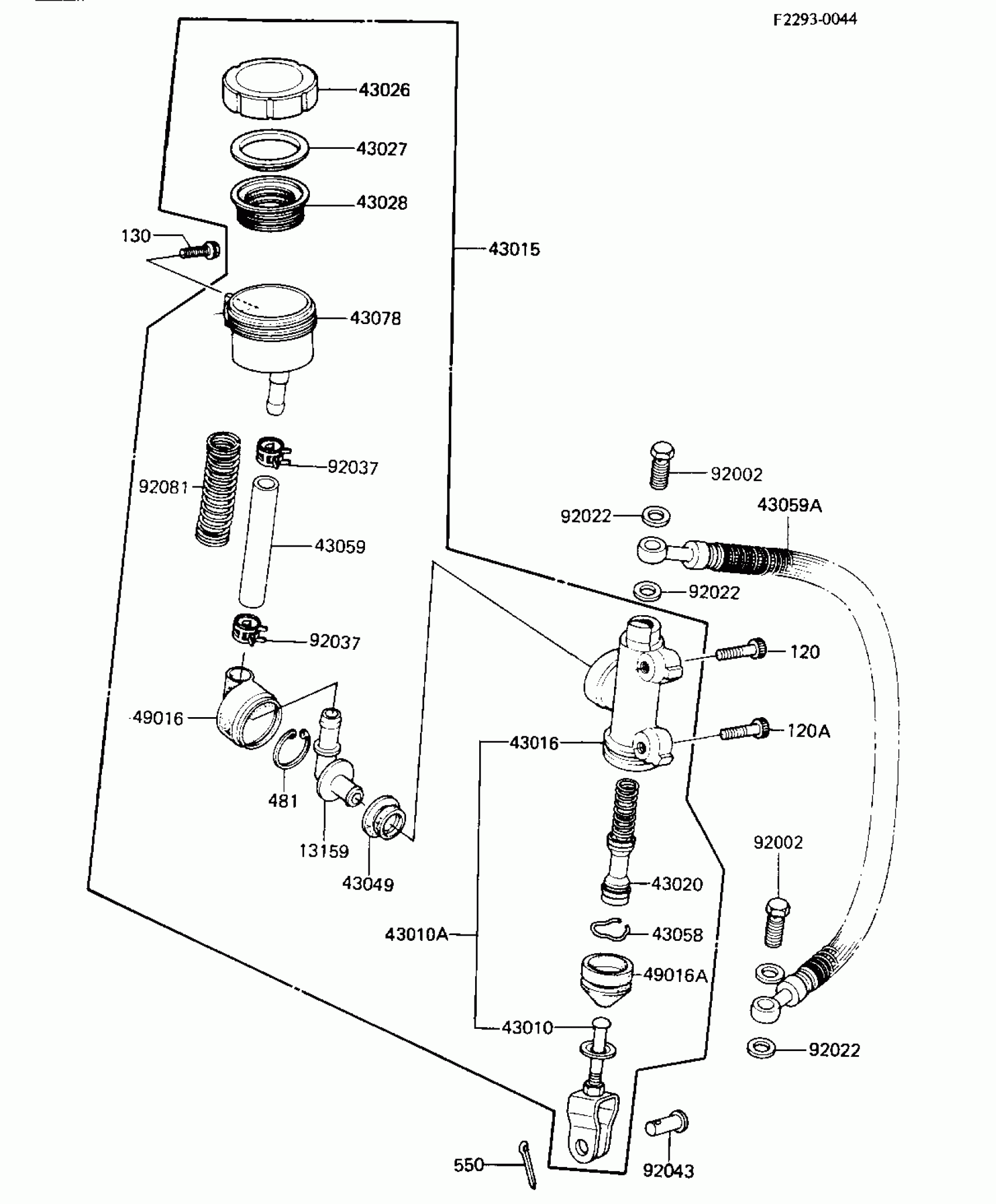

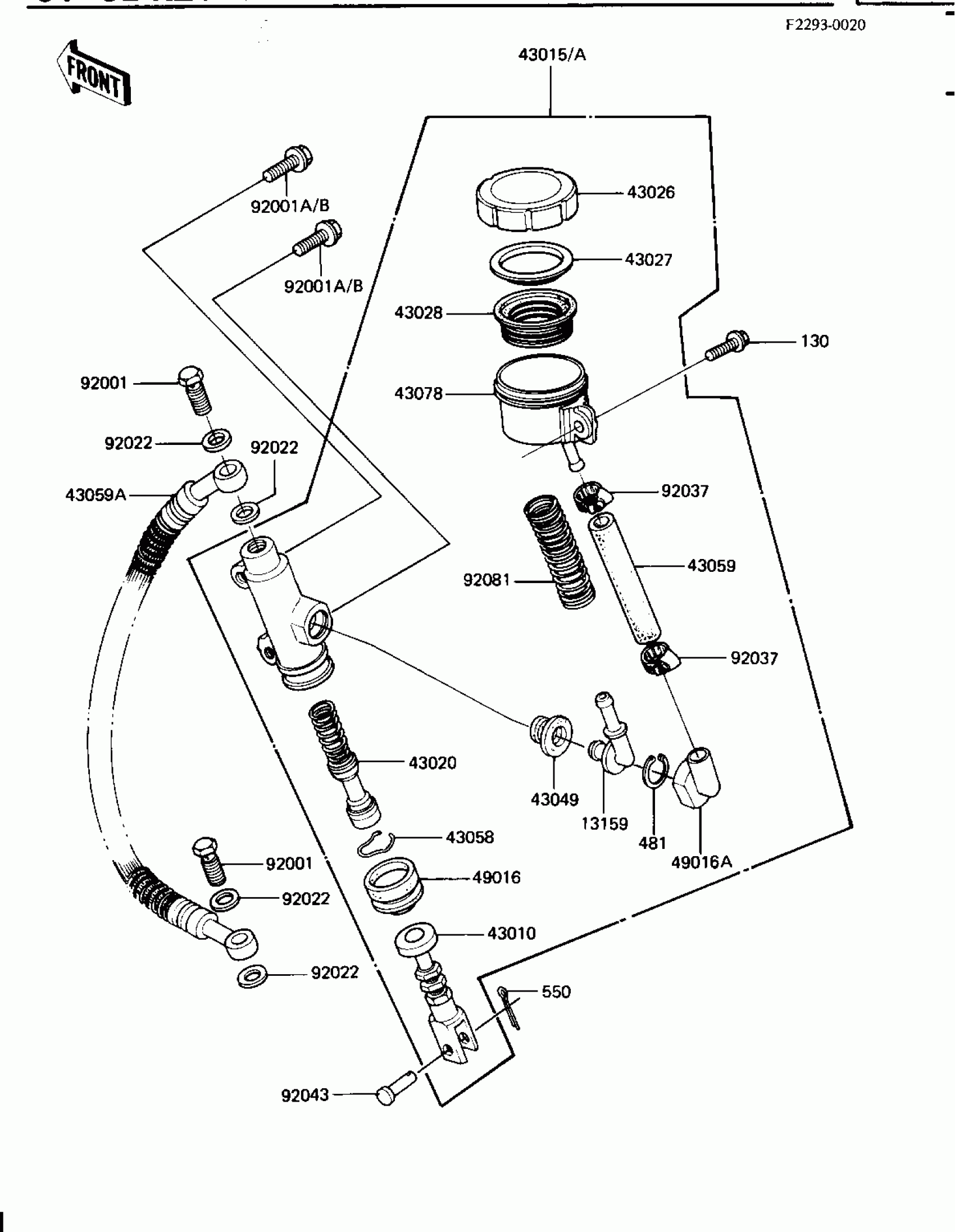

Kawasaki GPz REAR MASTER CYLINDER Diagram
#
Description
Price
13159
CONNECTOR
13159-1009
Unavailable
43010
ROD-ASSY-BRAKE,RR
43010-1051
$78.45
43010A
ROD-ASSY-BRAKE,RR/MASTER CYL
43010-5006
Unavailable
43015
CYLINDER-ASSY-MASTER,RR
43015-1134
$462.58
43016
CYLINDER-MASTER,RR
43016-1101
$139.10
43020
PISTON-COMP-BRAKE
43020-1035
Unavailable
43026
CAP-BRAKE
43026-1016
$36.42
43027
PLATE-DIAPHRAGM
43027-1005
$6.52
43028
DIAPHRAGM
43028-1016
$23.41
43049
PACKING
43049-1008
$13.85
43058
RING,ROD STOPPER
43058-004
$7.64
43059
HOSE-BRAKE,RR,L=138
43059-1100
Unavailable
43059A
HOSE-BRAKE,L=290
43059-1166
$73.70
43078
RESERVOIR
43078-1009
$34.49
49016
COVER-SEAL,MASTER CYLINDER
49016-1034
$15.94
49016A
COVER-SEAL,BRAKE PISTON
49016-1048
Unavailable
92002
BOLT,OIL,L=23
92002-1888
$5.48
92022
WASHER,10.5X15X1.5
43067-001
$2.15
92037
CLAMP,BRAKE HOSE
92037-1386
$10.53
92043
PIN,8X16
92043-1013
$9.91
92081
SPRING,HOSE PROTECTER
92081-1335
$15.50
120
BOLT-SOCKET,8X30
120S0830
$4.37
120A
BOLT-SOCKET,8X35
120S0835
$4.44
130
BOLT,FLANGED,6X20
130B0620
$1.69
481
CIRCLIP-TYPE-C,25MM
481J2500
$3.07
550
PIN COTTER 2.0X15
550D2015
$1.04
