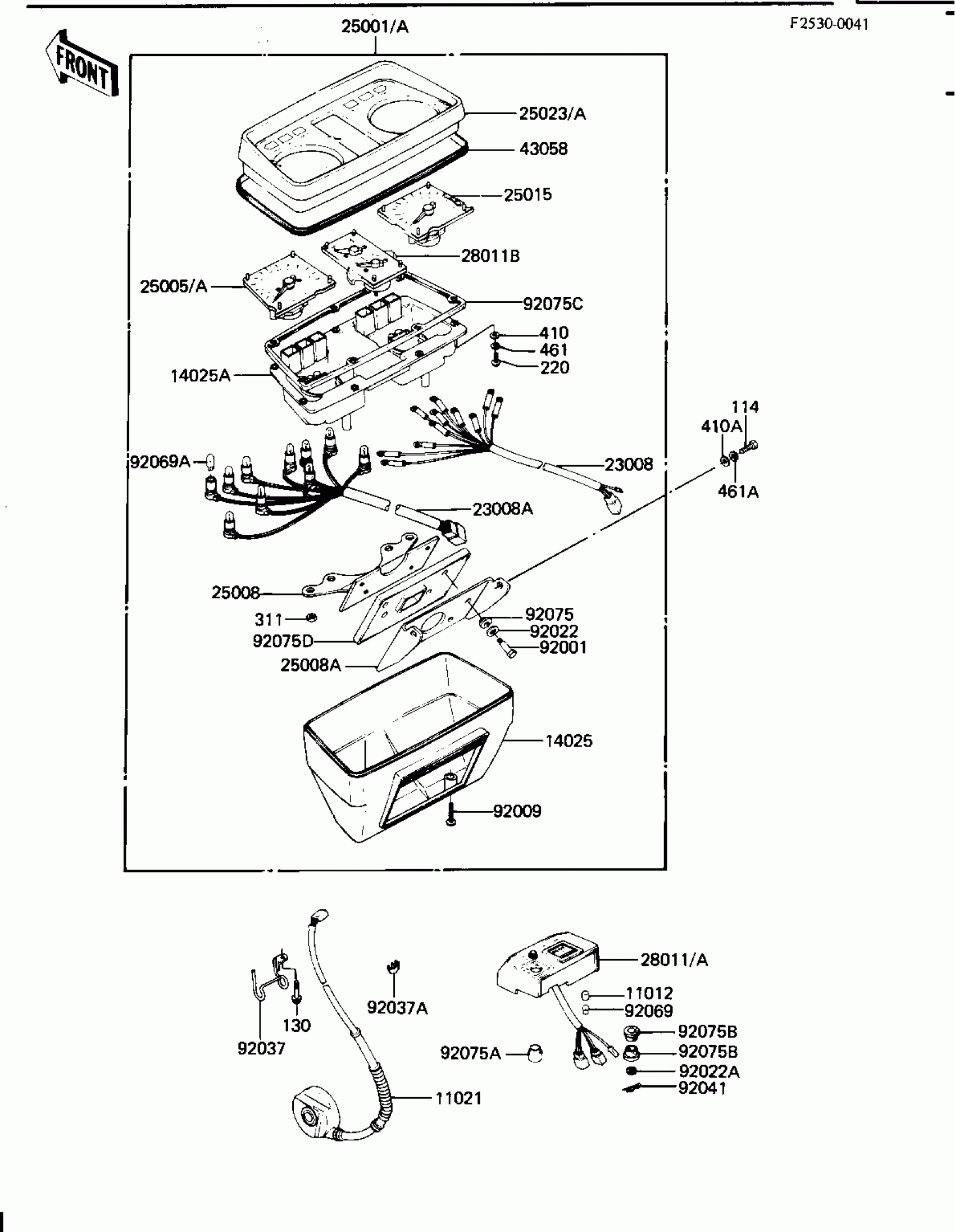

Kawasaki GPz METERS (KZ1100-B1) Diagram
#
11012
CAP,BULB,GREEN
11012-1172
Unavailable
11021
CASE-ASSY
11021-1011
Unavailable
14025
COVER,METER CASE,LWR
14025-1384
Unavailable
14025A
COVER,METER HOUSING
14025-1526
Unavailable
23008
SOCKET-ASSY,METER UNT
23008-1112
$48.64
23008A
SOCKET-ASSY,METER LMP
23008-1113
$87.48
25001
METER-ASSY,MPH
25001-1218
$1,328.87
25001A
METER-ASSY,KPH (Canada)
25001-1219
Unavailable
25005
SPEEDOMETER,MPH
25005-1128
$578.18
25005A
SPEEDOMETER,KPH (Canada)
25005-1129
Unavailable
25008
BRACKET-METER,CASE
25008-1043
$54.59
25008A
BRACKET-METER,COVER
25008-1044
$93.50
25015
TACHOMETER,X1000RPM
25015-1092
$401.52
25023
COVER-METER CASE,UPP
25023-1030
$149.81
25023A
COVER-METER CASE,UPP
25023-1031
$320.16
28011
METER,TOTAL & TRIP
28011-1011
$572.65
28011A
METER,TOTAL & TRIP (Canada)
28011-1012
Unavailable
28011B
METER-FUEL & VOLT
28011-1026
$219.25
43058
RING-METER CASE COVER
43058-1022
$61.40
92001
BOLT,5MM,BLACK
92001-1477
Unavailable
92009
SCREW,4X25,BLACK
92009-1125
$0.37
92022
WASHER,7.2X15X1,BLACK
92022-1273
Unavailable
92022A
WASHER,5.2X16X1.2
92022-263
$1.66
92037
CLAMP
92037-1230
$13.75
92037A
CLAMP,HOSE
92037-1249
Unavailable
92041
PIN,COTER
92041-006
Unavailable
92069
BULB 12V 1.5W
92069-017
$4.92
92069A
BULB,12V 3.4W,T10
92069-1007
$5.00
92075
DAMPER,METER
25019-023
$4.29
92075A
DAMPER,TRIP METER
92075-1286
$9.58
92075B
DAMPER,TRIP METER
92075-1300
Unavailable
92075C
DAMPER,WATERPROOF PRT
92075-1341
$33.97
92075D
DAMPER,WATERPROOF PRT
92075-1342
$25.73
114
BOLT-SMALL-UPSET,8X18
115G0818
$5.23
130
BOLT-FLANGED,6X8
130B0608
$0.67
220
SCREW PAN HEAD 4X10
220B0410
$2.30
311
NUT-HEX
311B0500
$0.47
410
WASHER PLAIN 4MM
410B0400
$0.48
410A
WASHER PLAIN 8MM
410B0800
$0.93
461
WASHER SPRING 4MM
461F0400
Unavailable
461A
WASHER SPRING 8MM
461F0800
$0.40
