Description

Price

11036

BRACKET-A,HARNESS,LH

11036-1471

Unavailable

11036A

BRACKET-A,HARNESS,RH

11036-1472

Unavailable

21007

ROTOR,PULSING COIL

21007-1104

Unavailable

21119

IGNITER

21119-1113

$672.10

21121

COIL-IGNITION

21121-1108

$158.75

21121A

COIL-IGNITION

21121-1109

$158.75

21130

CAP-SPARK PLUG

21130-1003

$29.52

59026

COIL-PULSING

59026-1026

$241.47

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.3X10.2X1.6

92022-1588

$3.92

92027

COLLAR,6.3X10X14

92027-1453

$5.00

92037

CLAMP,WIRING HARNESS

21126-008

$4.73

92037A

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

$3.46

92070C

SPARK PLUG DPR9EA-9

DPR9EA9

$3.62

92071

GROMMET,HIGH TENSION

21132-005

$4.26

92071A

GROMMET,SPARK PLUG CAP

92071-1015

$4.26

115

BOLT-SMALL-UPSET

115G0845

$5.39

130

BOLT,FLANGED,6X40

130B0640

$0.74

220

SCREW-PAN-CROS,5X25

220B0525

$3.67

311

NUT 6MM

311B0600

$0.93

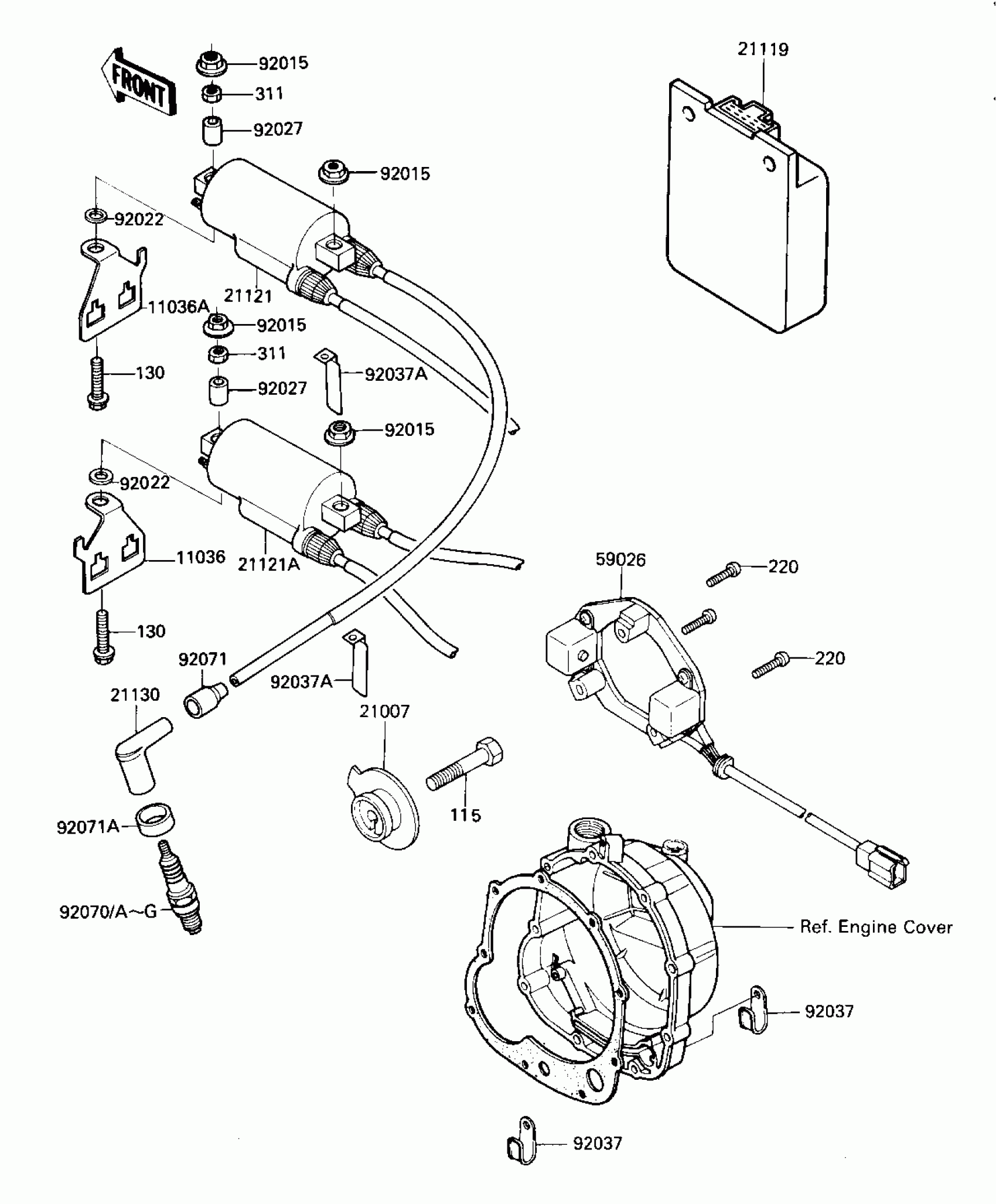

Kawasaki GPz IGNITION Diagram

BRACKET-A,HARNESS,LH

BRACKET-A,HARNESS,RH

ROTOR,PULSING COIL

IGNITER

COIL-IGNITION

COIL-IGNITION

CAP-SPARK PLUG

COIL-PULSING

NUT,FLANGED,6MM

WASHER,6.3X10.2X1.6

COLLAR,6.3X10X14

CLAMP,WIRING HARNESS

CLAMP,WIRING HARNESS,L=60

PLUG-SPARK,DPR8EA-9(NGK)

SPARK PLUG DPR9EA-9

GROMMET,HIGH TENSION

GROMMET,SPARK PLUG CAP

BOLT-SMALL-UPSET

BOLT,FLANGED,6X40

SCREW-PAN-CROS,5X25

NUT 6MM
