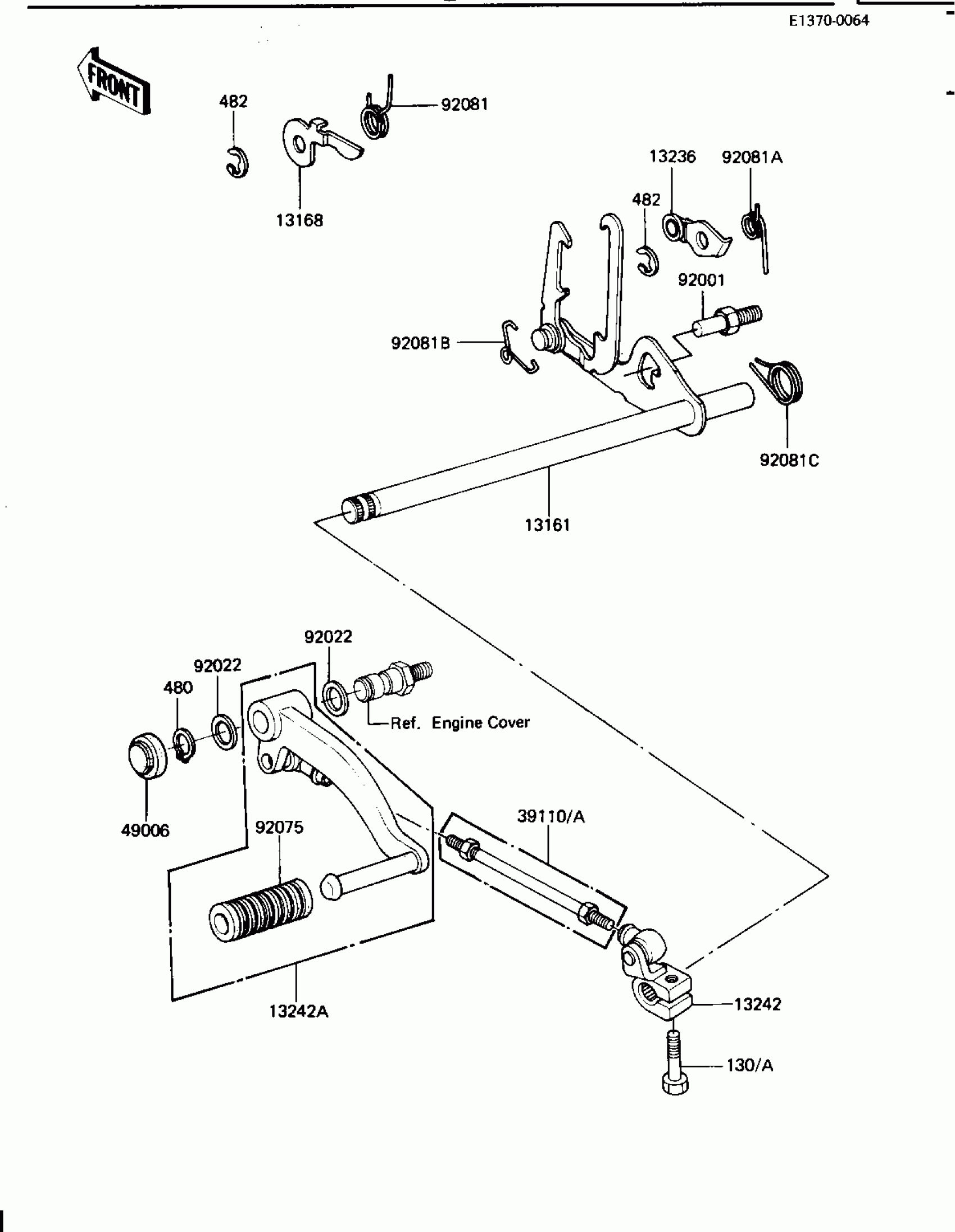

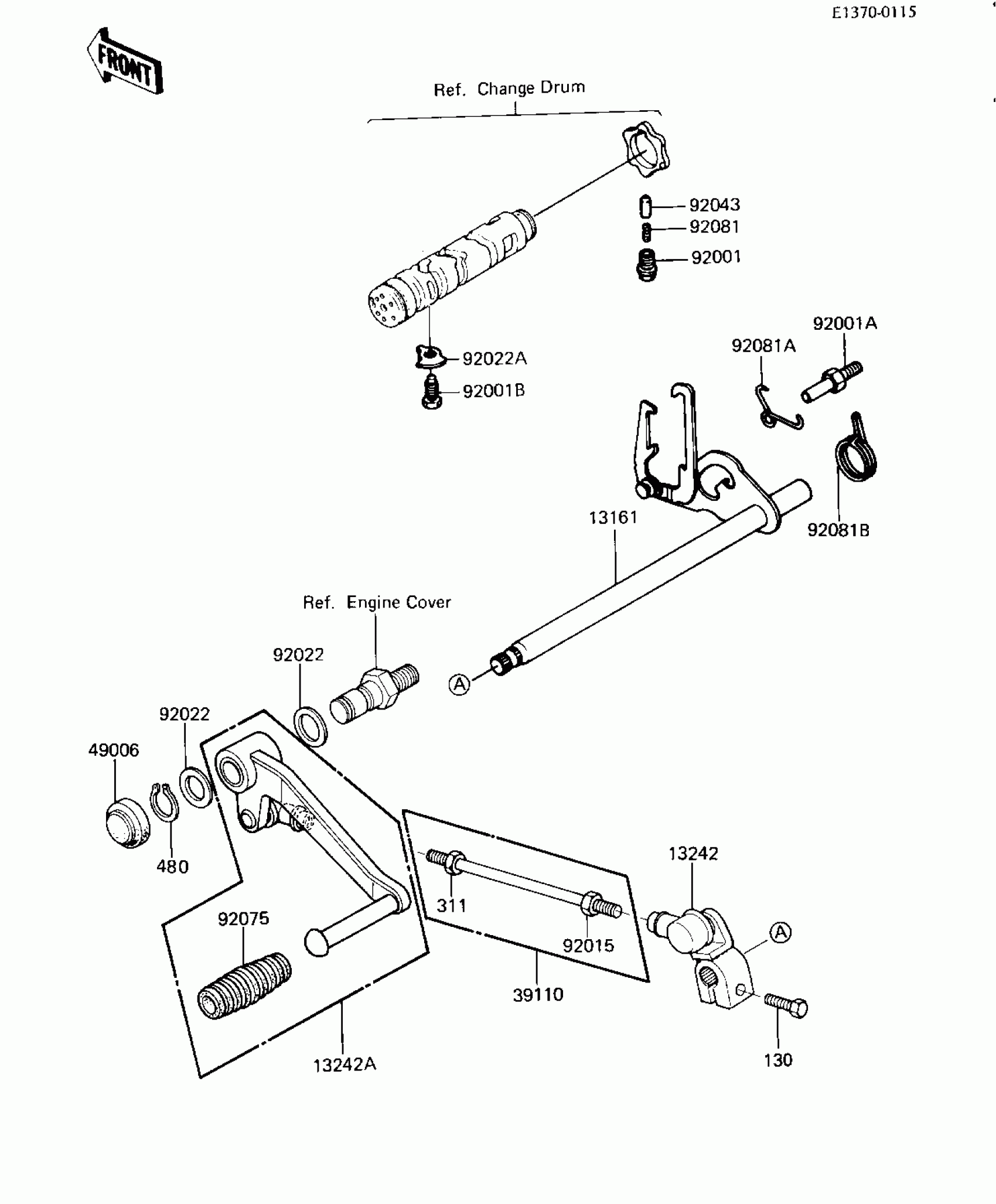

Kawasaki GPz GEAR.CHANGE MECHANISM Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-042

$123.33

13242

LEVER-ASSY-CHANGE

13242-1074

$51.21

13242A

LEVER-ASSY-CHANGE,PED

13242-1103

Unavailable

39110

ROD-ASSY-TIE,CHANGE

39110-1007

Unavailable

49006

BOOT,CHANGE LEVER

49006-1061

$8.96

92001

BOLT,NEUTRAL POSITION

92001-1037

$13.37

92001A

BOLT,RETURN SPRING

92001-1401

$4.69

92001B

BOLT,10X26

92001-174

$8.19

92015

NUT,LEFT HANDED,6MM

92015-1178

$4.31

92022

WASHER,12.5X22X1.2

92022-072

$3.92

92022A

WASHER,LOCK,10MM

92024-074

$4.38

92043

92043-076

$11.71

92075

DAMPER,CHANGE PEDAL

92160-1036

$5.05

92081

SPRING

92081-112

$6.16

92081A

SPRING

92083-018

$9.80

92081B

SPRING,CHG PEDL RTRN

92083-028

Unavailable

130

BOLT-FLANGED,6X20

130S0620

$6.86

311

NUT-HEX

311J0600

$1.01

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

Kawasaki GPz GEAR.CHANGE MECHANISM Diagram

LEVER-COMP-CHANGE SHAFT

LEVER-ASSY-CHANGE

LEVER-ASSY-CHANGE,PED

ROD-ASSY-TIE,CHANGE

BOOT,CHANGE LEVER

BOLT,NEUTRAL POSITION

BOLT,RETURN SPRING

BOLT,10X26

NUT,LEFT HANDED,6MM

WASHER,12.5X22X1.2

WASHER,LOCK,10MM

PIN

DAMPER,CHANGE PEDAL

SPRING

SPRING

SPRING,CHG PEDL RTRN

BOLT-FLANGED,6X20

NUT-HEX

CIRCLIP-TYPE-C,12MM
