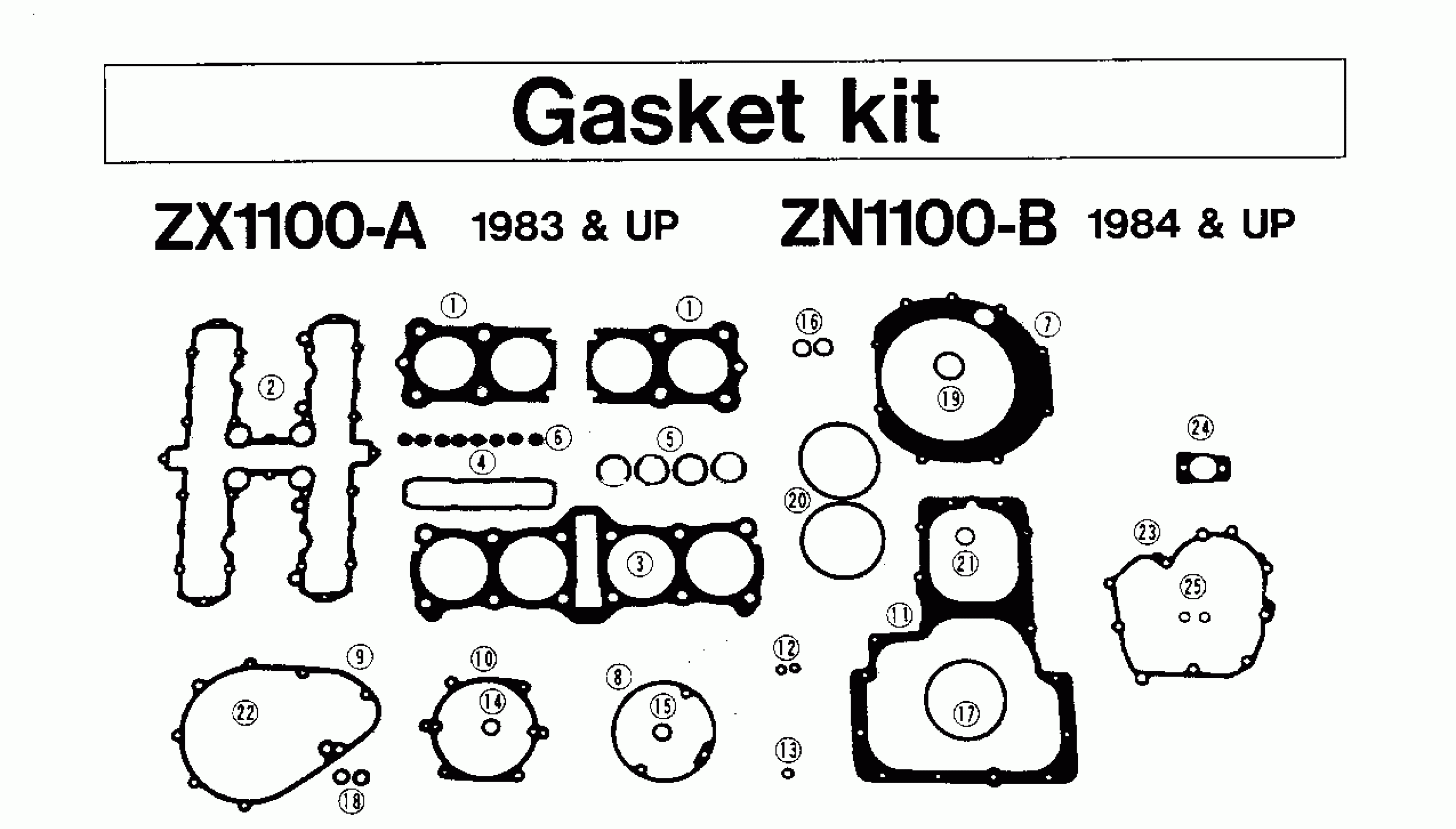

Kawasaki GPz GASKET KIT Diagram

#

Description
Price

A

GASKET-SET,A,ZN1100-B

11028-1084

Unavailable

B

GASKET-SET,B,ZN1100-B

11028-1088

Unavailable

1

GASKET-HEAD

11004-1119

$133.13

2

GASKET,CYLINDER HEAD

11009-1205

Unavailable

3

GASKET,CYLINDER BASE

11060-1067

Unavailable

4

GASKET,CYLINDER

11009-1208

$82.08

5

GASKET,EXHAUST PIPE

11009-1906

$11.06

6

SEAL-OIL,RV37129.5

92049-016

$18.35

7

GASKET,CLUTCH COVER

11060-1070

Unavailable

8

GASKET,PULSING COIL COVER

11060-1072

$13.25

9

GASKET,GENERATOR COVER

11060-1075

Unavailable

10

GASKET,RH ENGINE COVER

11060-1071

Unavailable

11

GASKET,OIL PAN

11060-1074

Unavailable

12

O RING,8MM

670B1508

$1.29

13

O RING,9MM

670B1509

$3.65

14

O RING,15MM

670B2015

$1.42

15

O RING,16MM

670B2016

$1.36

16

O RING,18MM

670B2018

$1.42

17

O RING,90MM

671B2590

$9.91

18

RING-O,OD=18

92055-048

$4.80

19

RING-O,31.5X2.6

92055-049

$4.31

20

RING-O,91.6X3.4

92055-052

$9.89

21

RING-O,19.5X1.5

92055-055

$4.31

22

GASKET,12X22X2

92065-097

$0.74

23

GASKET,TRANSMISSION COVER

11060-1069

$17.75

24

GASKET,CLUTCH ADJUSTING COVER

11060-1073

$5.80

25

RING-O,8.8X1.9

92055-099

$4.69
