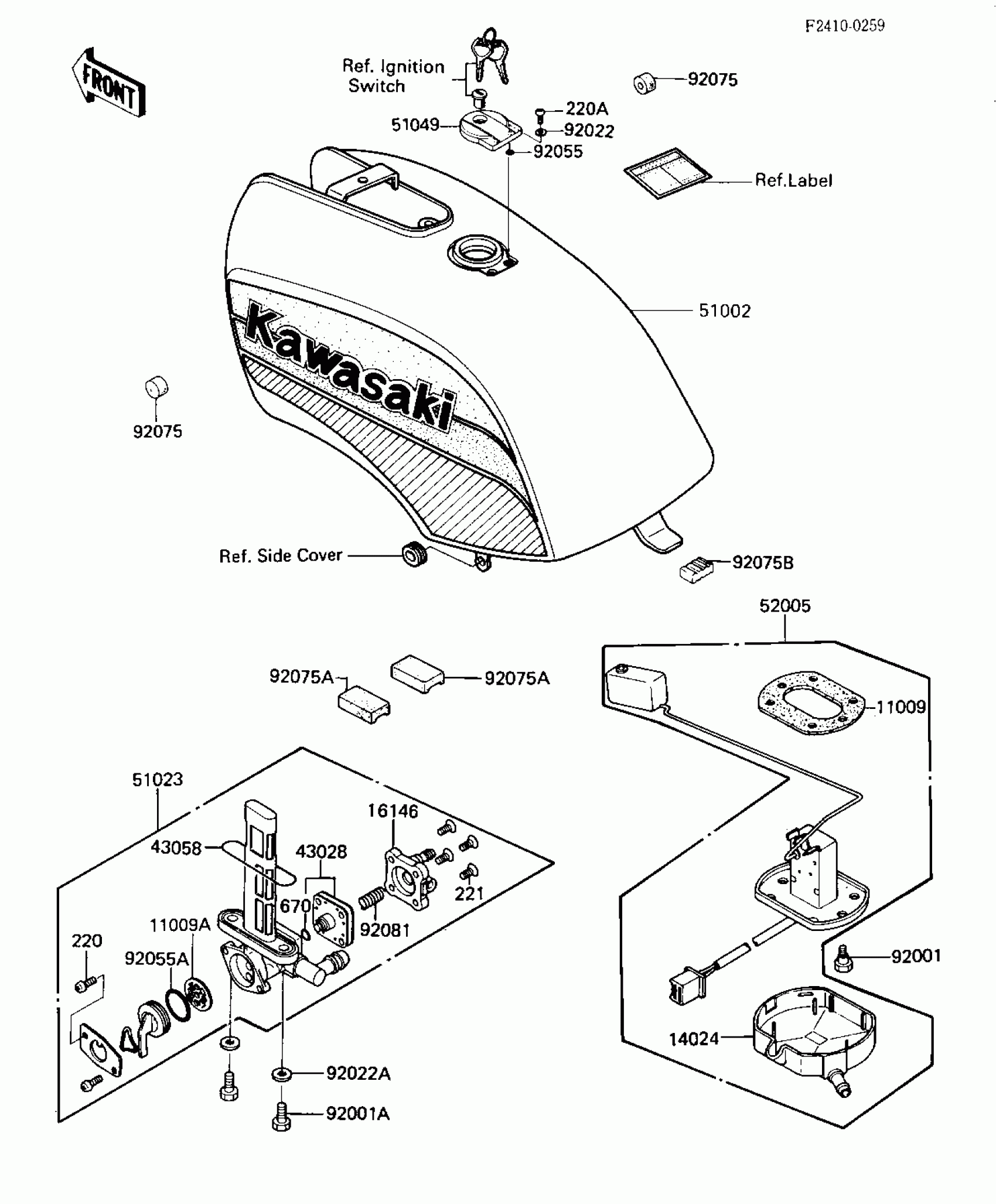

Kawasaki GPz FUEL TANK (ZX550-A3, CANADA) Diagram

Description

Price

11009

GASKET,FUEL GAUGE

11009-1037

Unavailable

11009A

GASKET,TAP VALVE

11009-1188

$5.74

14024

COVER,FUEL GAUGE

14024-1434

$35.39

16146

COVER ASSY,FUEL TAP

16146-1009

$18.54

43028

DIAPHRAGM

43028-1033

$22.90

43058

RING,TAP FLANGED

51039-003

$6.27

51002

TANK-COMP-FUEL,EBONY (Canada)

51002-5193-H8

Unavailable

51023

TAP-ASSY,FUEL

51023-1186

$141.02

51049

CAP-TANK,FUEL

51049-1097

$138.28

52005

GAUGE,FUEL

52005-1034

Unavailable

92001

BOLT,FUEL GAUGE

92001-1069

$7.24

92001A

BOLT,6X20

92001-1091

$3.92

92022

WASHER,5.3X10X0.8

92022-1038

$3.65

92022A

WASHER-PLAIN

92022-183

$3.92

92055

RING-O

92055-1023

$3.92

92055A

RING-O,TAP LEVER

92055-1085

$5.05

92075

DAMPER,FUEL TANK

92075-101

$6.22

92075A

DAMPER,FUEL TANK

92075-1463

$9.12

92075B

DAMPER,FUEL,TANK

92075-1553

$12.51

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.89

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW PAN HEAD 5X10

220B0510

$0.69

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

670

O RING,4MM

670B1504

$4.11
