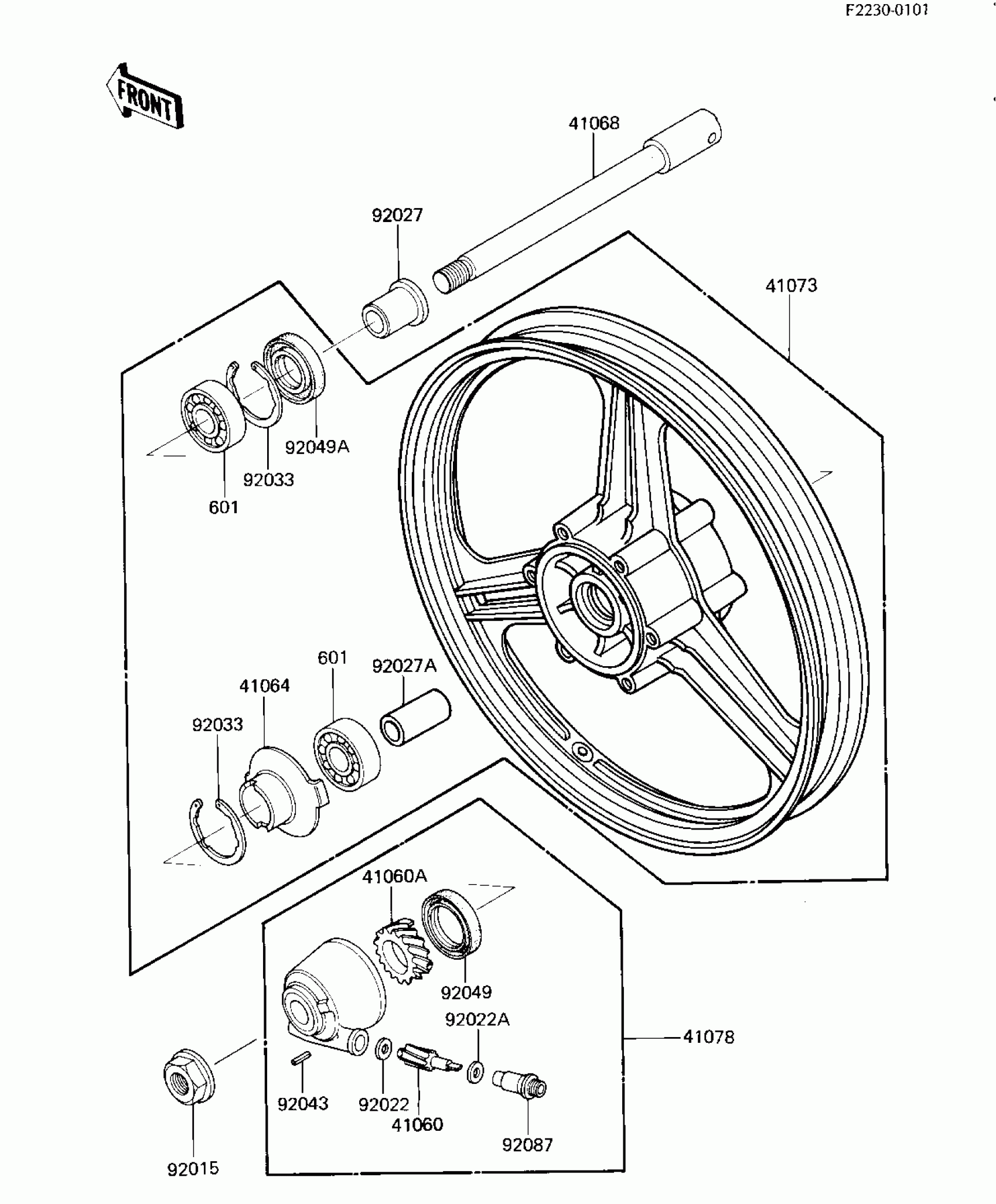

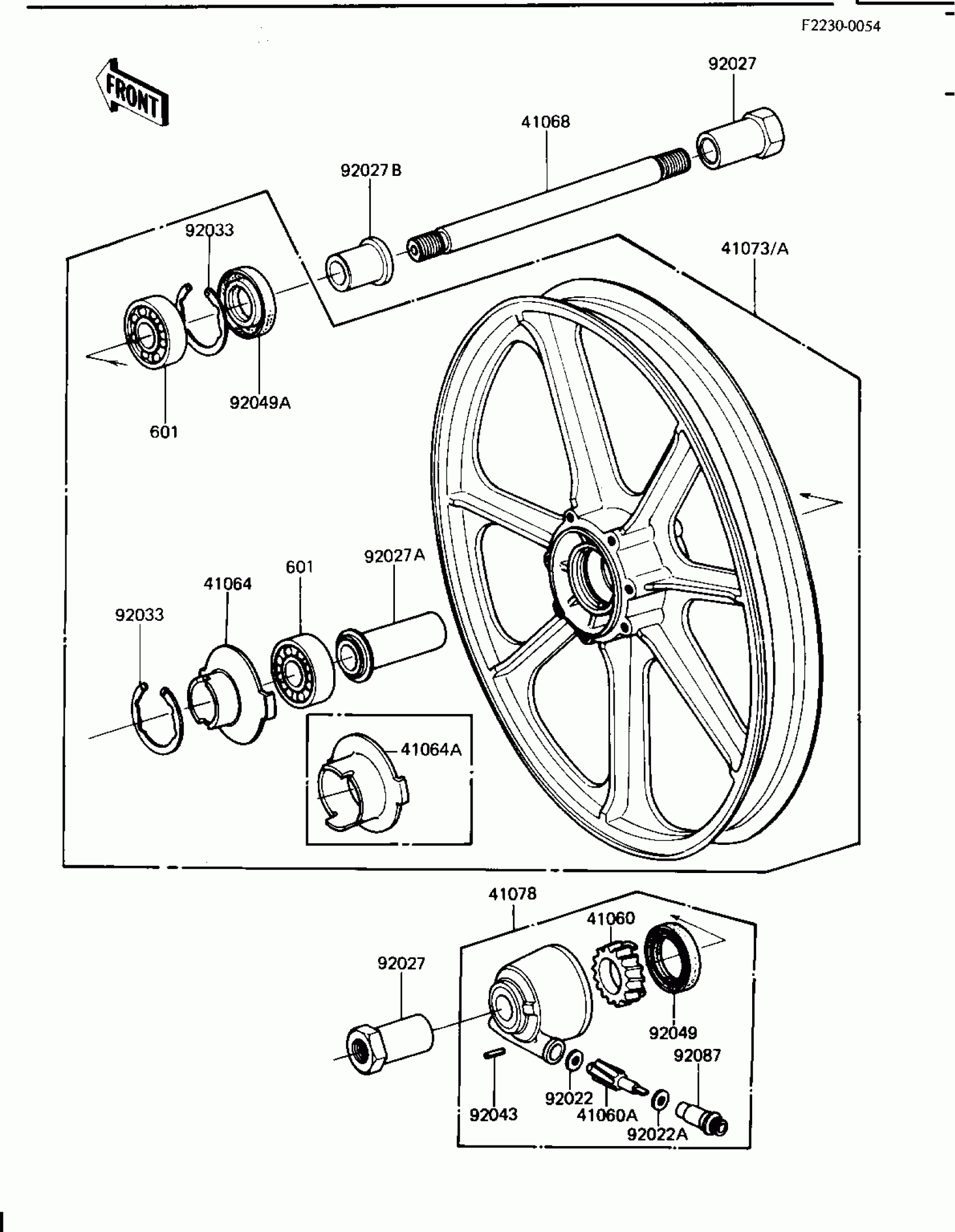

Kawasaki GPz FRONT WHEEL/HUB Diagram

Description

Price

41060

GEAR-METER SCREW,9T

41060-1016

$21.74

41060A

GEAR-METER SCREW,25T

41060-1041

$20.35

41064

RECEIVER-SPEEDOMETER

41064-1006

$14.92

41068

AXLE,FRONT,L=204M/M

41068-1009

$64.68

41073

WHEEL-ASSY,FR,M.GRAY

41073-1220-J9

$994.87

41078

CASE-ASSY-METER GEAR

41078-1027

$141.61

92015

NUT,14MM

92015-1407

$9.91

92022

WASHER,5.1X9X0.4

41063-001

$4.69

92022A

WASHER,5.1X9X0.4

41063-001

$4.69

92027

COLLAR,L=30

92027-1225

$17.60

92027A

COLLAR,15.2X22X55

92027-1505

$14.88

92033

RING-SNAP,42MM

92033-1041

$6.16

92043

PIN,SPRING

41082-001

$3.92

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92049A

SEAL-OIL,BJN22425

92049-1058

$9.73

92087

BUSHING-METER GEAR

92087-1002

$23.27

601

BEARING-BALL

601B6302U

$37.90
