Description

Price

13070

GUIDE,PAD

13070-1026

$10.11

41080A

DISK,FR

41080-1038

$552.62

43020

PISTON-COMP-BRAKE

43020-1096

Unavailable

43041B

CALIPER-ASSY,FR,LH

43041-1053

$340.21

43041C

CALIPER-ASSY,FR,RH

43041-1054

$423.03

43045

SHAFT-CALIPER

43045-1007

$23.19

43045A

SHAFT-CALIPER

43045-1008

$23.19

43049

PACKING,PISTON SEAL

43049-002

$13.90

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082A

PAD-ASSY-BRAKE

43082-1026

$66.19

49006

BOOT,PISTON

49006-1043

$13.85

49006A

BOOT,SHAFT

49006-1044

$8.68

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92001C

BOLT,FLANGED,10X41,B

92001-1507

Unavailable

92001D

BOLT,FLANGED,8X25,BLACK

92001-1510

$8.76

92028

BUSHING,7.8X11X15.7

92028-1090

$8.05

92081

SPRING,PAD

92081-1229

$20.97

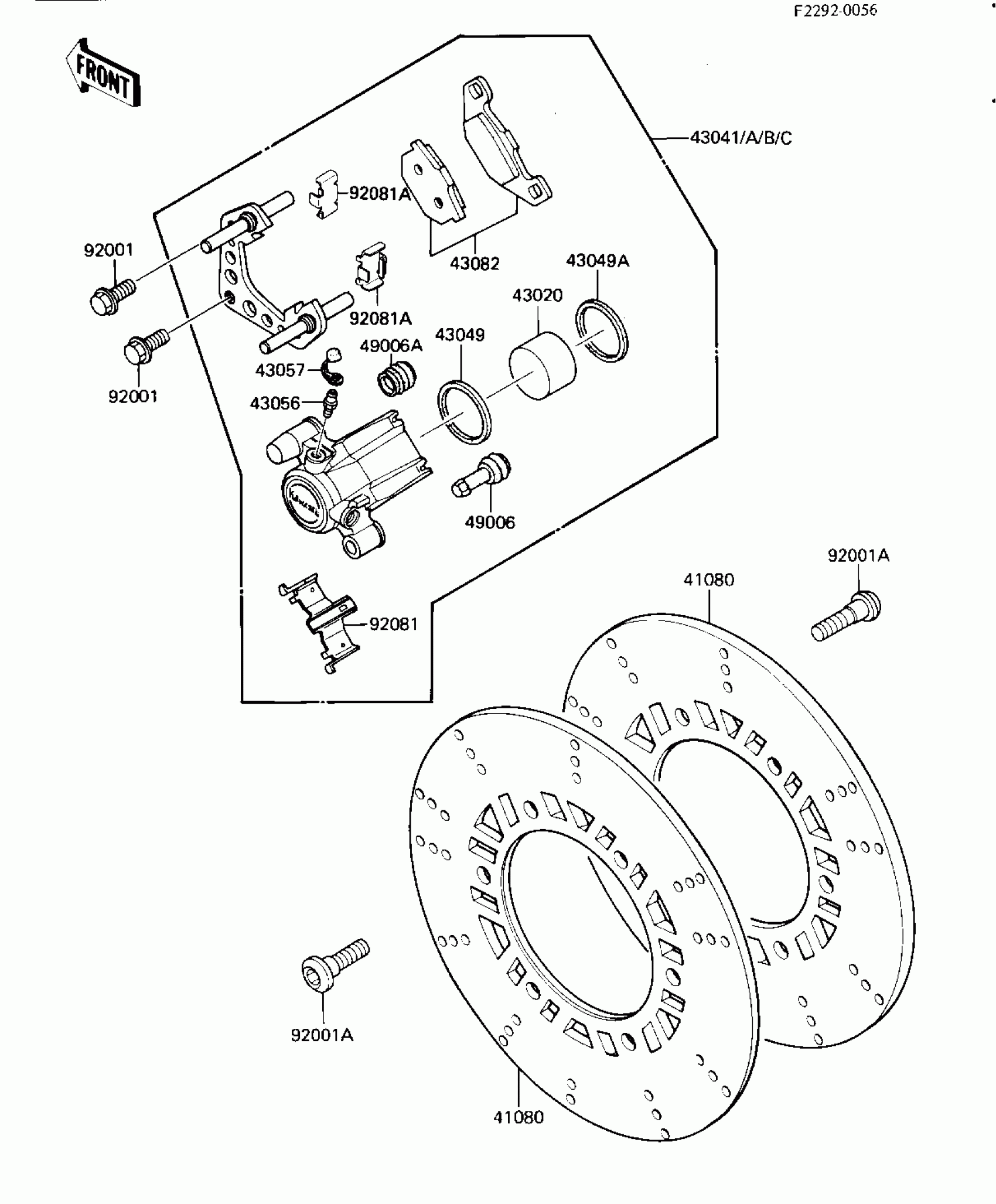

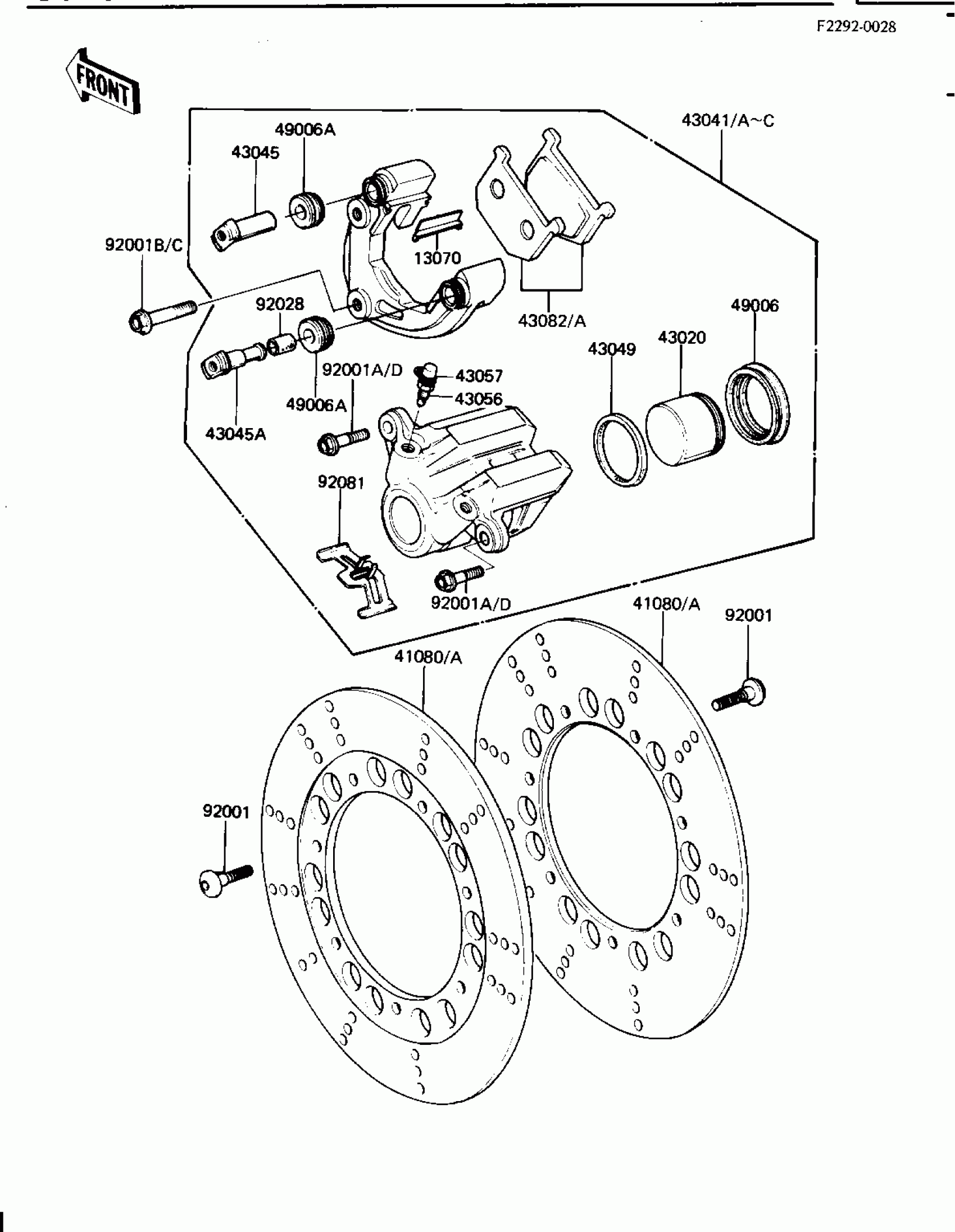

Kawasaki GPz FRONT BRAKE Diagram

GUIDE,PAD

DISK,FR

PISTON-COMP-BRAKE

CALIPER-ASSY,FR,LH

CALIPER-ASSY,FR,RH

SHAFT-CALIPER

SHAFT-CALIPER

PACKING,PISTON SEAL

BREATHER

CAP-BREATHER

PAD-ASSY-BRAKE

BOOT,PISTON

BOOT,SHAFT

BOLT,DISC PLATE,8X30

BOLT,FLANGED,10X41,B

BOLT,FLANGED,8X25,BLACK

BUSHING,7.8X11X15.7

SPRING,PAD
