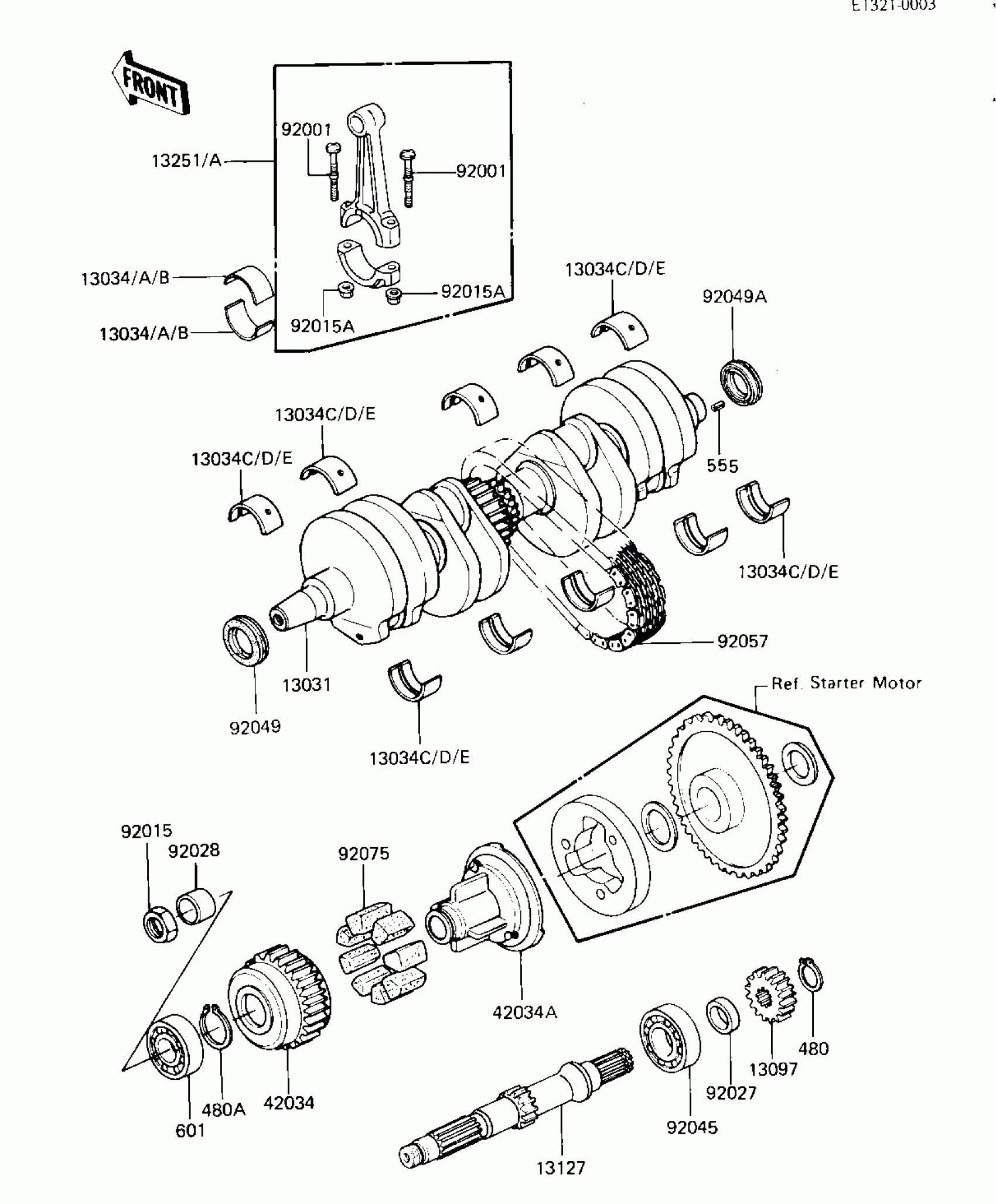

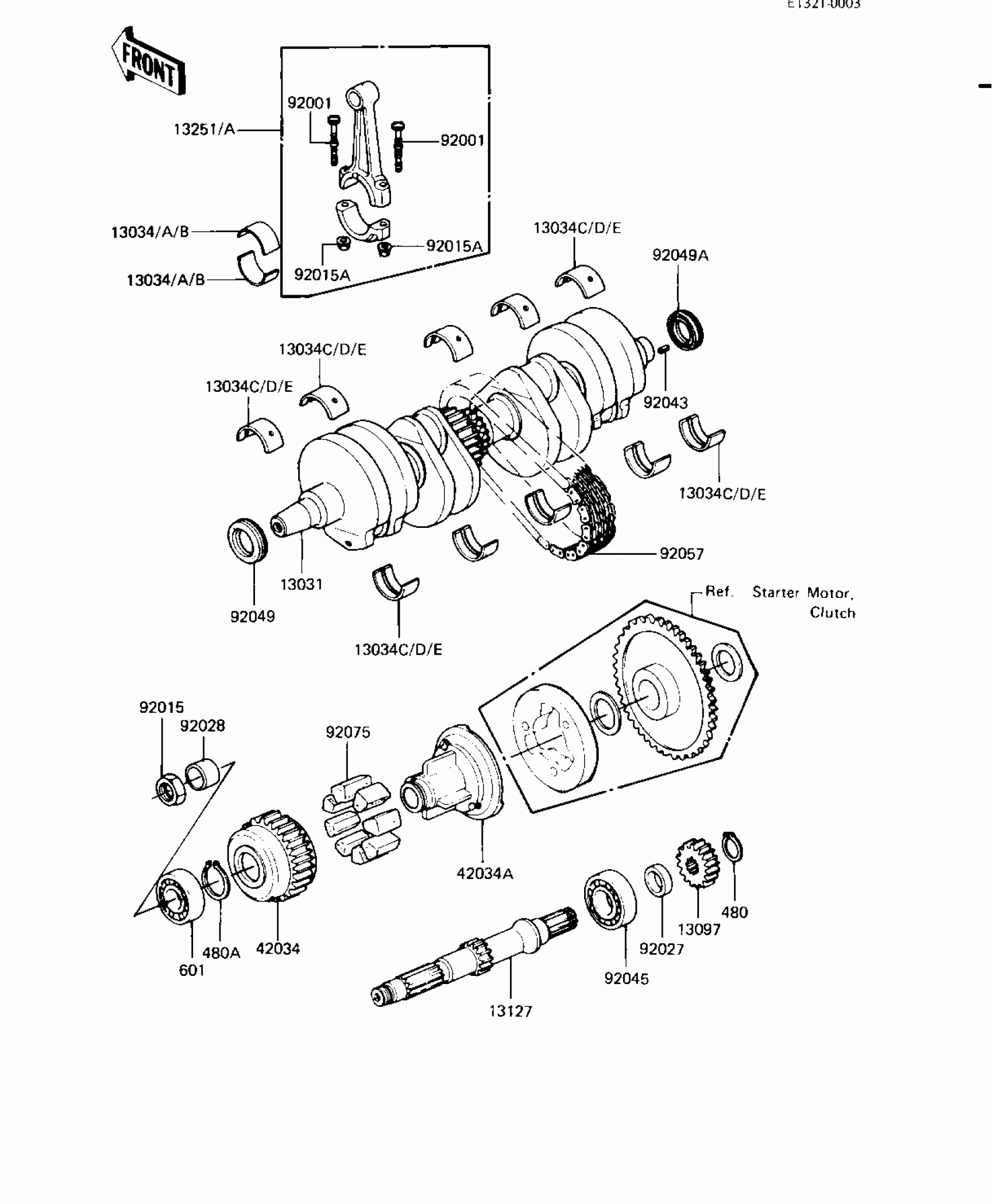

Kawasaki GPz CRANKSHAFT/SECONDARY SHAFT Diagram
#
Description
Price
13031
CRANKSHAFT-COMP
13031-1014
Unavailable
13034
BUSHING,CONNECTING ROD,BLUE
13034-1067
Unavailable
13034A
BUSHING,CONNECTING ROD,BLACK
13034-1068
Unavailable
13034B
BUSHING,CONNECTING ROD,BROWN
13034-1069
Unavailable
13034C
METAL,CRANKSHAFT,BROWN
13034-1016
Unavailable
13034D
METAL,CRANKSHAFT,BLACK
13034-1017
Unavailable
13034E
METAL,CRANKSHAFT,BLUE
13034-1018
Unavailable
13097
GEAR-PRIMARY SPUR,26T
13097-1008
Unavailable
13127
SHAFT,SECONDARY
13127-1007
Unavailable
13251
ROD-ASSY-CONNECTING
13251-1004-JJ
Unavailable
13251A
ROD-ASSY-CONNECTING
13251-1004-JJ
Unavailable
42034
COUPLING,OUTER,SECONDARY SHAFT
42034-1004
Unavailable
42034A
COUPLING,INNER,SECONDARY SHAFT
42034-1005
Unavailable
92001
BOLT,CONNECTING ROD,7MM
92001-1793
$8.58
92015
NUT,18MM
92015-019
$7.22
92015A
NUT,7MM
92016-060
$5.52
92027
COLLAR,22X34X7.3
92027-1438
$8.19
92028
BUSHING,20X25X16.6
92028-1037
$31.84
92045
BEARING-BALL,#63/22X
92045-1017
$34.15
92049
SEAL-OIL,HSCY25367
92049-1013
$10.40
92049A
SEAL-OIL,HSCY25397
92050-081
$13.07
92057
CHAIN,PRIMARY,MA0364X50L
92057-1011
$155.01
92075
DAMPER,COUPLING
92075-1070
$7.62
480
CIRCLIP-TYPE-C,22MM
480J2200
$5.00
480A
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
555
PIN-SPRING,4X8
555A0408
$3.92
601
BEARING-BALL,#6205C3
601B6205
$19.57
