1983 Kawasaki GPZ Carburetor Parts Diagram

← All diagrams

Find the part on the Carburetor Parts diagram for your 1983 Kawasaki GPZ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

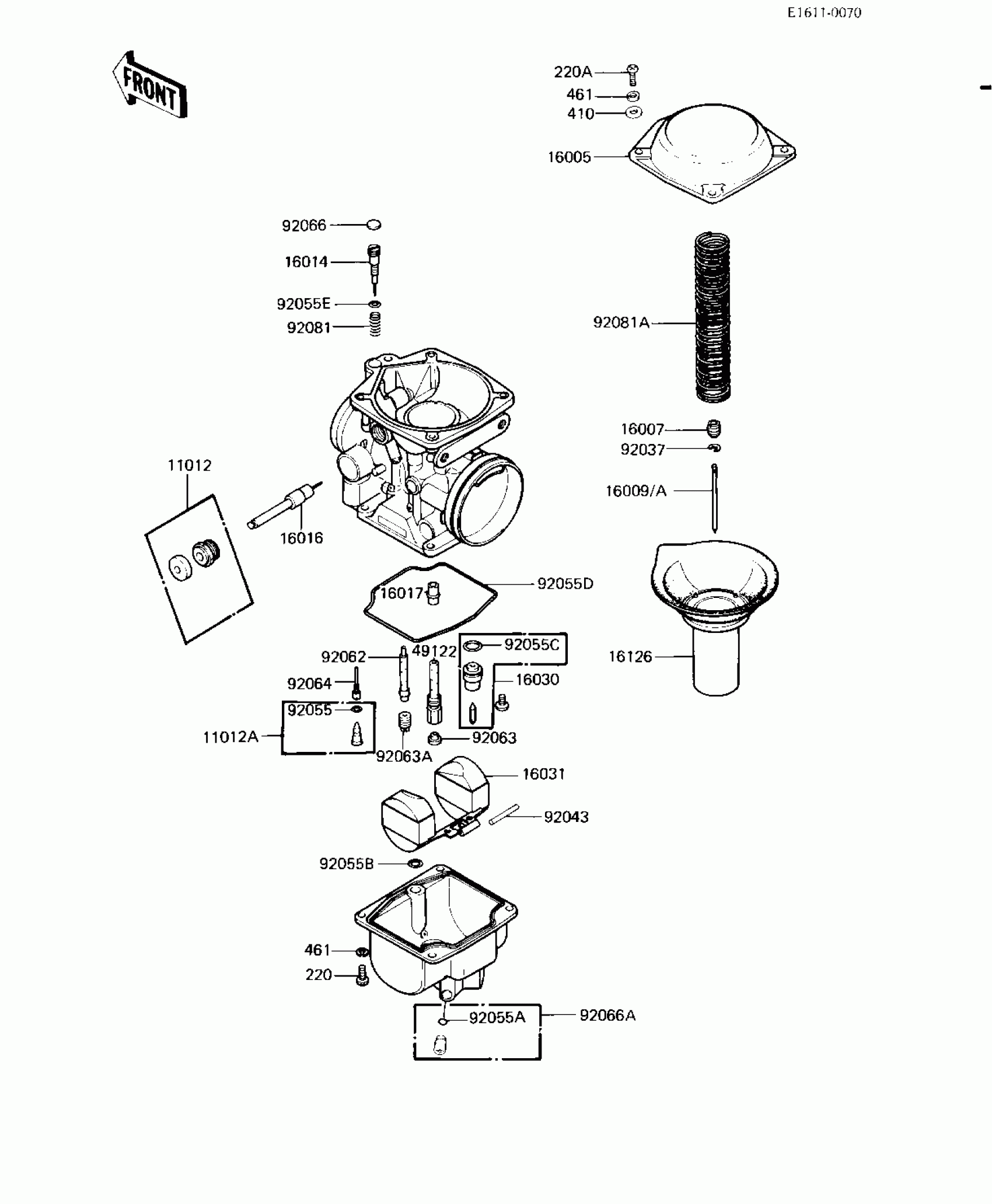

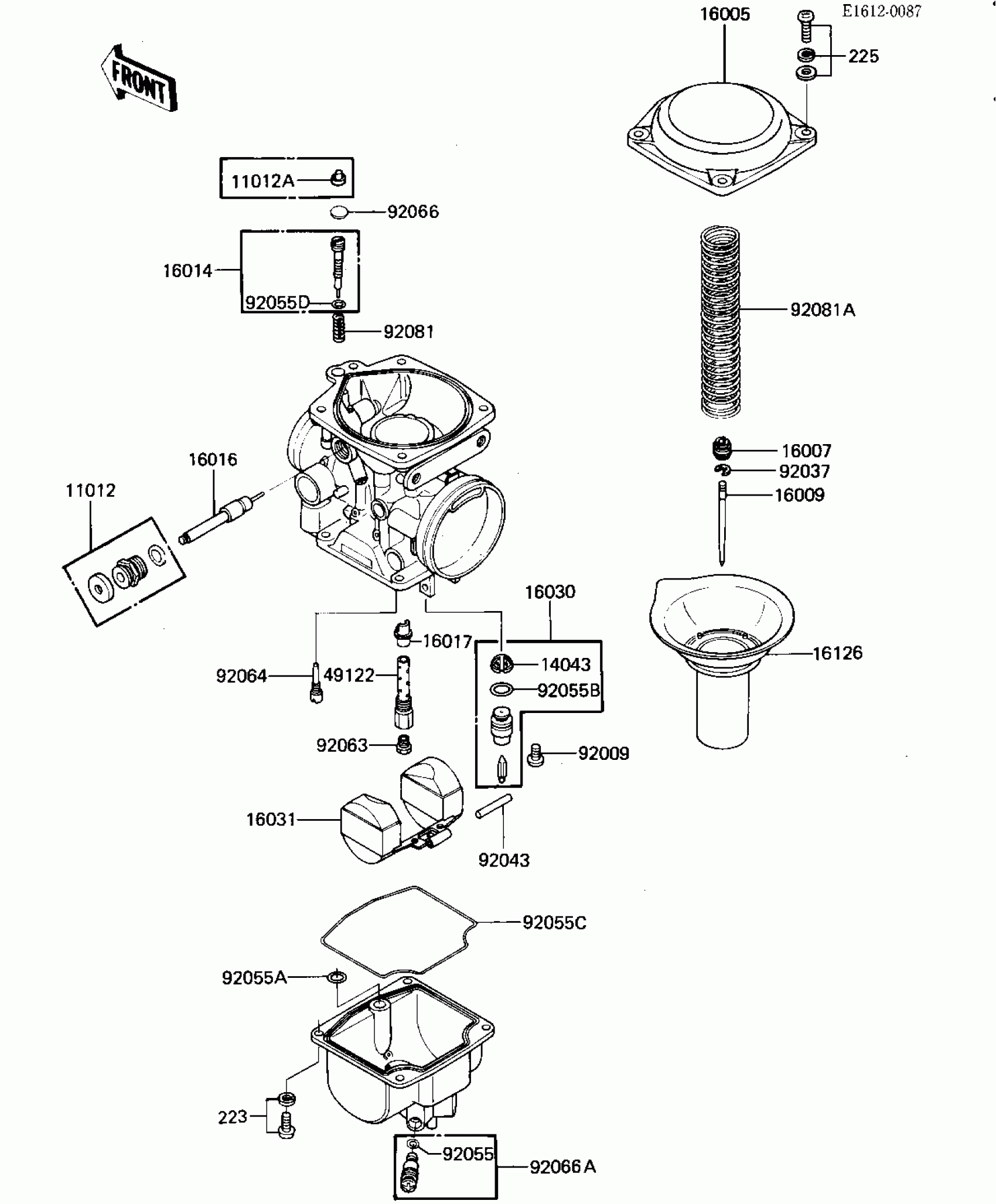

1983 Kawasaki GPZ Carburetor Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1243

1
Out of stock

11012A

CAP

11012-1244

1
Out of stock

16005

TOP-CHAMBER

16005-1020

1
Out of stock

16007

SEAT-SPRING

16007-1051

1
Out of stock

16009

NEEDLE-JET

16009-1112

1
Out of stock

16009A

NEEDLE-JET (Canada)

16009-1113

1
Out of stock

16014

SCREW-PILOT AIR

16014-1032

1
Out of stock

16016

PLUNGER

16016-1023

1
Out of stock

16017

JET-NEEDLE

16017-1107

1
Out of stock

16030

VALVE-FLOAT

16030-1024

1
Out of stock

16031

FLOAT

16031-1018

1
Out of stock

16126

VALVE

16126-1047

1
Out of stock

49122

PIPE-BLEEDER

49122-1013

1
Out of stock

92037

CLAMP

92037-1303

1
Out of stock

92043

PIN

92043-1112

1
Out of stock

92055

RING-O,PILOT JET CAP

92055-1337

1
Out of stock

92055A

"O" RING,OVERFLOW

92055-1071

1
Out of stock

92055B

RING-0

92055-1126

1
Out of stock

92055C

RING-O

92055-1127

1
Out of stock

92055D

RING-0,FLOAT CHAMBER

92055-1128

1
Out of stock

92055E

RING-O

92055-1134

1
Out of stock

92062

NOZZLE

92062-1020

1
Out of stock

92063

JET-MAIN,#86

92063-1089

1
Out of stock

92063A

JET-MAIN

92063-1122

1
Out of stock

92064

JET-PILOT

92064-1055

1
Out of stock

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

1
Out of stock

92066A

SCREW,DRAIN

92066-1065

1
Out of stock

92081

SPRING

92081-1441

1
Out of stock

92081A

SPRING

92081-1461

1
Out of stock

220

SCREW-PAN-CROS

220C0412

1
Out of stock

220A

SCREW-PAN-CROS,4X16

220C0416

1
Out of stock

410

WASHER-PLAIN-SMALL,4MM,BLACK

410F0400

1
Out of stock

461

WASHER-SPRING

461K0400

1
Out of stock
← Carburetor Assy Fuel Tank →
